GrillMaster 720-0737 - Firebox Assembly

12
GJ
A
8.
8.
8.
8. Firebox
Firebox
Firebox
Firebox Assembly
Assembly
Assembly
Assembly
NOTE: We suggest two persons lift the firebox
when assembling. Be sure to remove all
packaging material during assembly.
a) Remove two screws which are pre-assembled
on the Cart Leg Back Right (J) and Cart Leg
Back Left (G). As shown in Fig. 1 1. A.
b) Remove the four screws that are attached to
cart frame (H). 2 screws on the left and 2 on
the right.

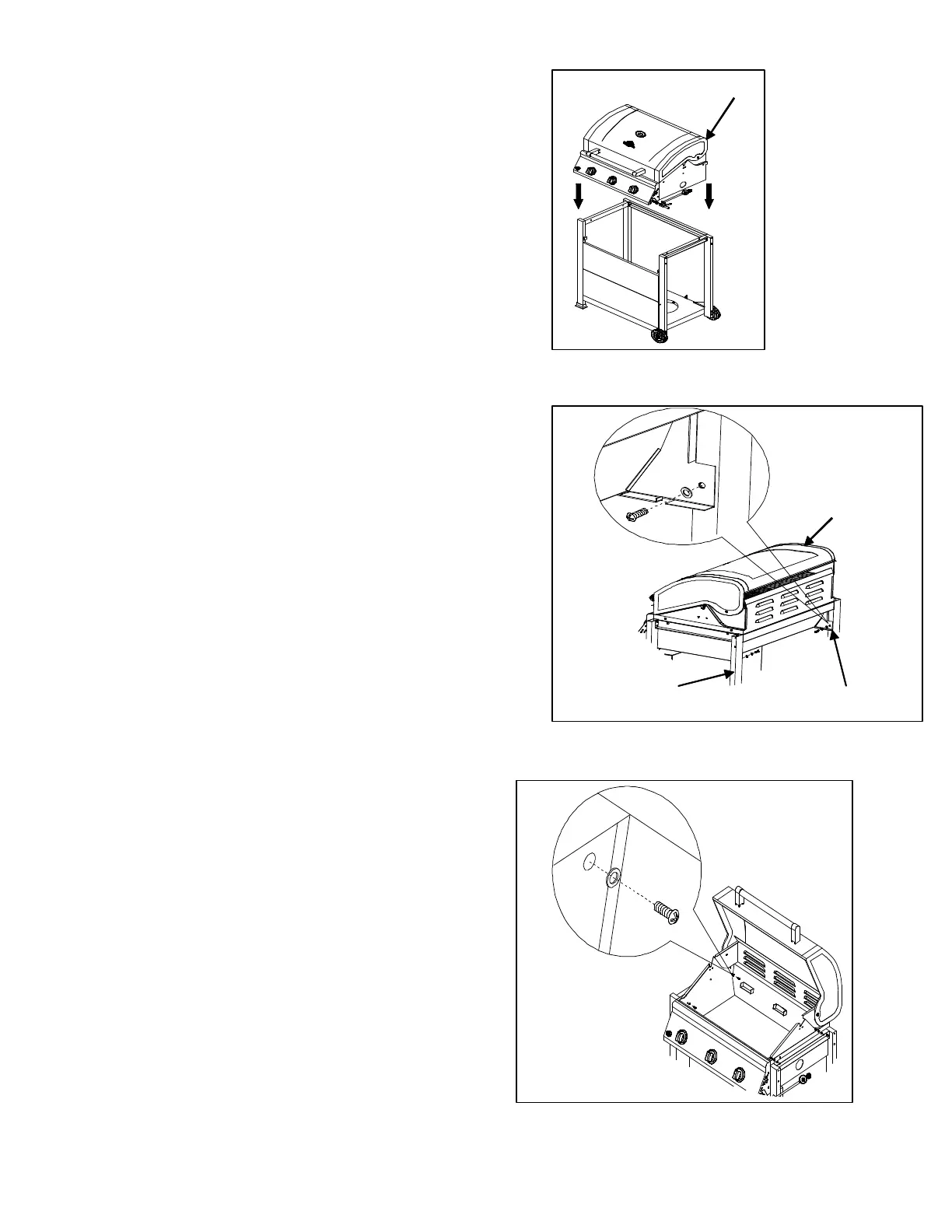

c) Remove the Firebox Assembly (A) from the
carton and carefully place onto the grill cart.
L id handle will face front and be above
front panel. As shown in Fig. 10.
d) Once the firebox is in place, secure the
Firebox Assembly (A) to Cart Leg Back
Right (J) and Cart Leg Back Left (G) using the
screws removed in step 8a . As shown in Fig. 1 1 . A.
e) From inside the firebox, install the four screws
that were removed in step 8b securing the
firebox to the cart frames. As shown in Fig. 11. B.
