Manual EDM 180
Revision 1.0 29.03.2010 Page 36/61

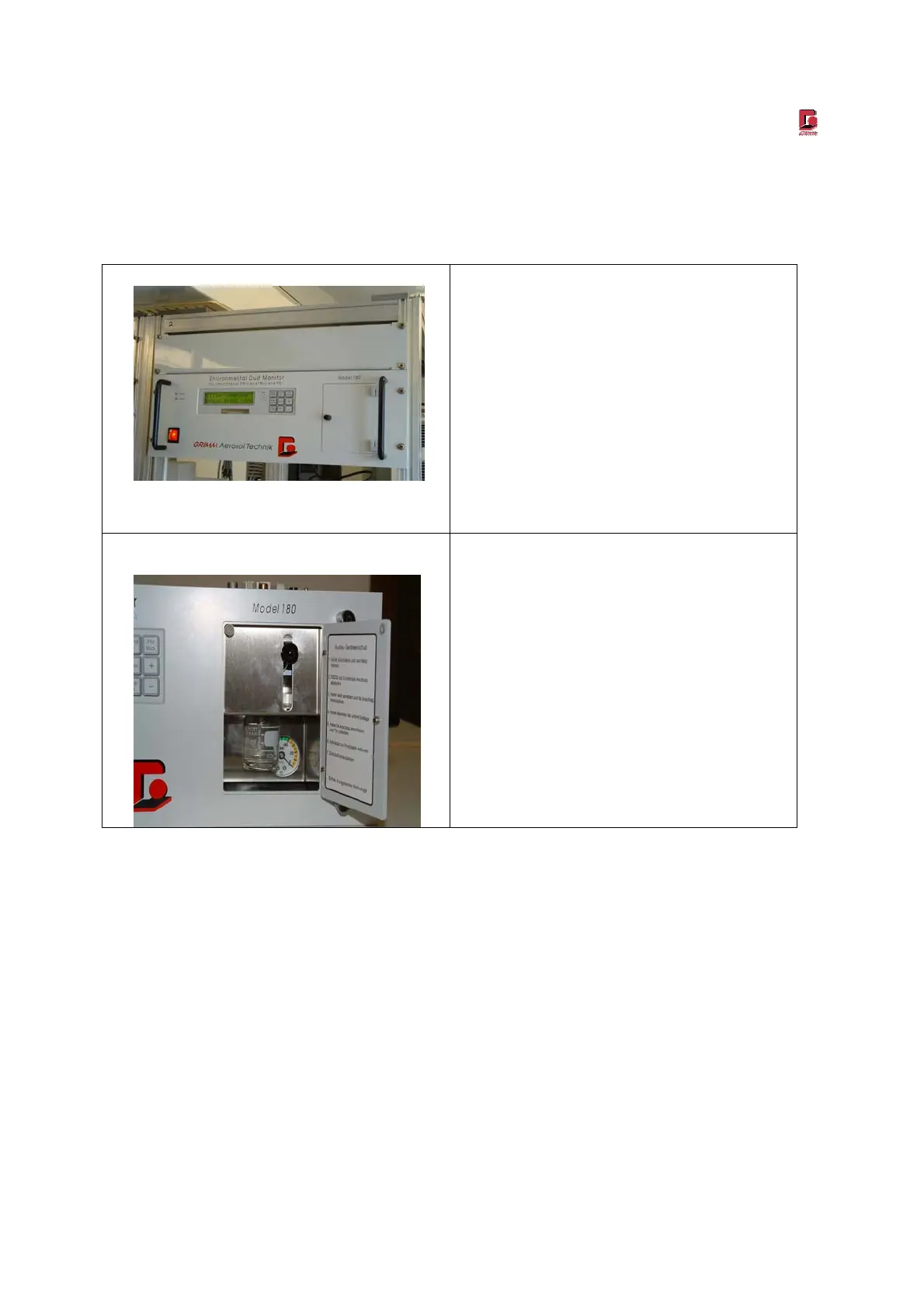

Installation 180
The slide bars provided by the customer for
the 19“ drawer have to be mounted.
Subsequently mount the EDM180 and
connect it to the power cable. The power
cable has to be provided by the customer
When tightening the 180 and the sample pipe
holder 181 please mind, that the connections
of 180 and 181 with the lift have to be
connectable without any interferences. 180
and 181 have to be exactly on each other with
their front plates.
Behind the flap there is a glass bottle for
receiving abrasive particles. Also there is the
lever for the lift which connects the modules of
the EDM 180 and the sample pipe holder. In
delivery condition the lever is in the lower
position. In order to connect both modules,
pull out the lever and subsequently push it
upwards until the connection is established.
Then push the lever into the instrument again
as far as it will go. In this position the lever
activates a micro-switch. Is the lever not
correctly inserted, the measurement will not
start (error message “LIFT NOT OK”)
When demounting follow these steps vice
versa.
