8.7 Service mode settings
With service mode 0
Outputting the data via the RS-232 interface also additional data and explaining texts will be output.

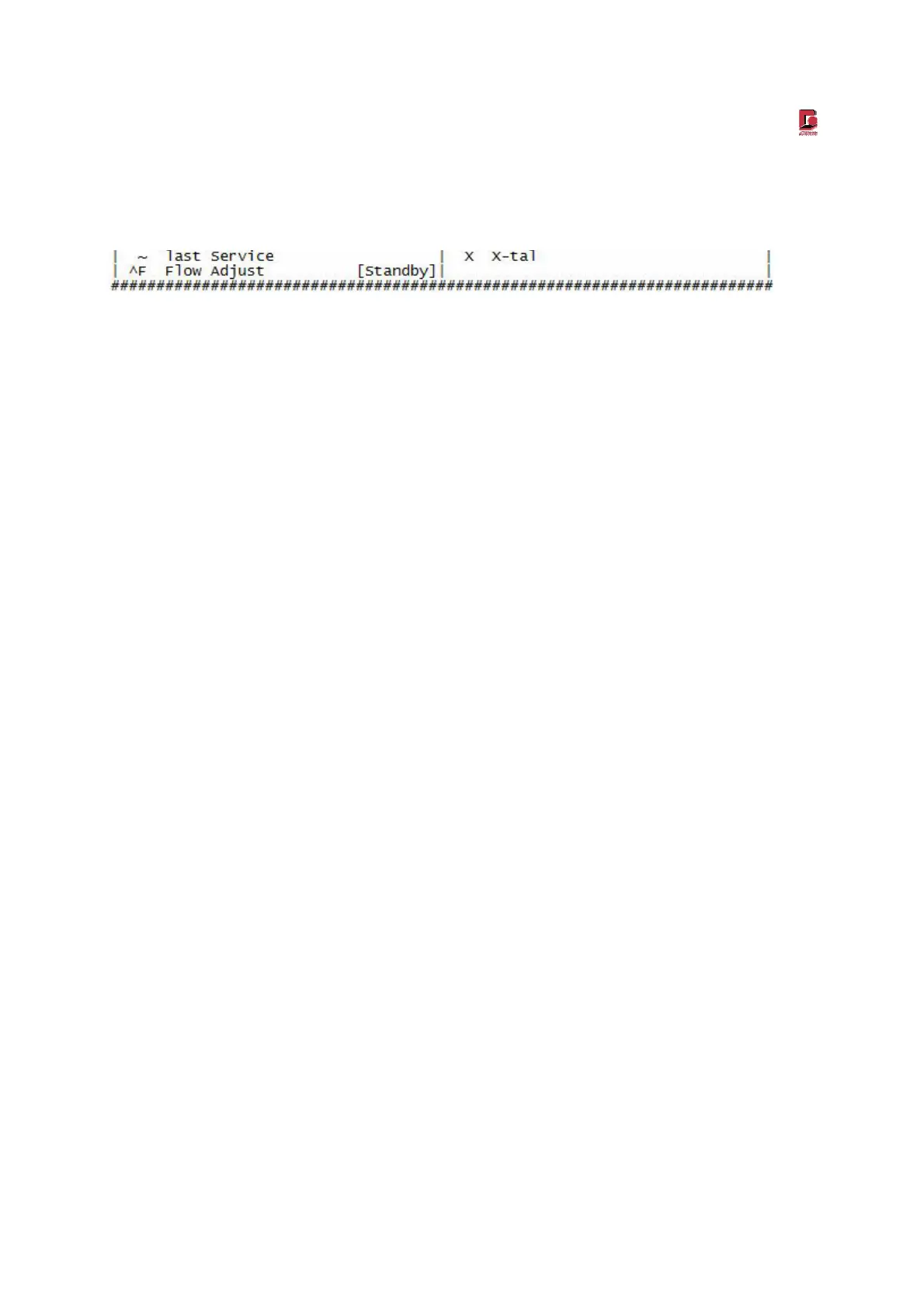

Several control commands are available, e.g. the request for the last service by "~" last Service, or the
request for the volume flow by "^F" Flow Adjust.
Example 1:
Pressing V within user mode will display the version number of the software:
V
Version : 12.30 E
Pressing V within service mode will display additionally to the version number of the software following:
Year of manufacture of the device, processor type, year of manufacture of the base part.
(Date: DD.MM.YYYY)
V
Version : 12.30 E DM109G 17.12.2007 87C552:011 DM109G 14.12.2007
Example 2:
Normal data presentation within user mode:
P 8 12 10 18 48 1 20 0 130 23 193 1 0 0 0 0
C_: 132940 77350 48435 22270 9325 4610 3210 1795
C_; 1305 1050 765 575 385 280 195 131
c_: 131 82 68 49 33 20 13 10
c_; 7 4 2 1 1 0 0 0
Data presentation within service mode with short explanation of P-line values:
Year Mon Day Hr Min Loc GF Err Qbatt Im UeL Ue4 Ue3 Ue2 Ue1 Iv
P 8 12 10 18 48 1 20 0 130 23 193 1 0 0 0 0
C_: 132940 77350 48435 22270 9325 4610 3210 1795
C_; 1305 1050 765 575 385 280 195 131
c_: 131 82 68 49 33 20 13 10
c_; 7 4 2 1 1 0 0 0
