Manual EDM 180
Revision 1.0 29.03.2010 Page 56/61
9 Special data protocol “GESYTEC“
9.1 Change of mode from Standard to Gesytec
The change from the STANDARD to the Gesytec-mode (which is similar to the German Bayern-Hessen
protocol) is only possible via the key pad of the dust monitor. Turn the 365 dust monitor off by pushing the

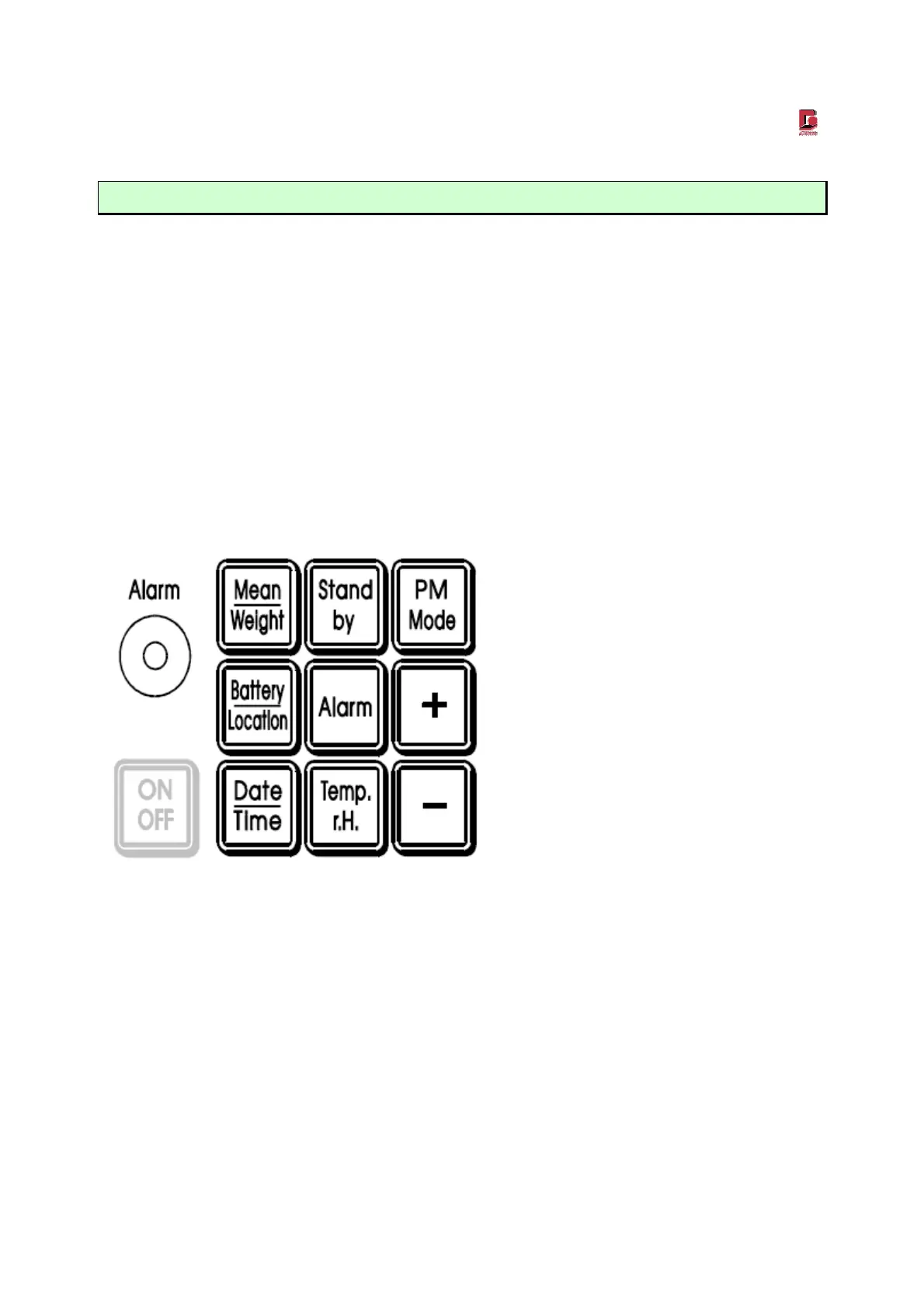

main power switch. Then press on the instrument the two keys ON (which is a hidden key, not ot see but
to feel, left near the key Date/Time) and „+“- key at the same time and keep both keys pressed. Then turn
the instrument on again. On the LCD-Display the model and firmware version is shown. The instrument
will directly change over to the Gesytec-mode. This is shown on the display with an extra „S“ at the end.
To return to the STANDARD mode start the instrument by pressing the „ON“- and the „-“- key at the same
time. Now the instrument return to the reselected mode, in Europe as „E“ or in America as „US“ version.
