Manual EDM 180
Revision 1.0 29.03.2010 Page 52/61
Underline
Output of the user texts and analog input factors (only within stand-by mode).

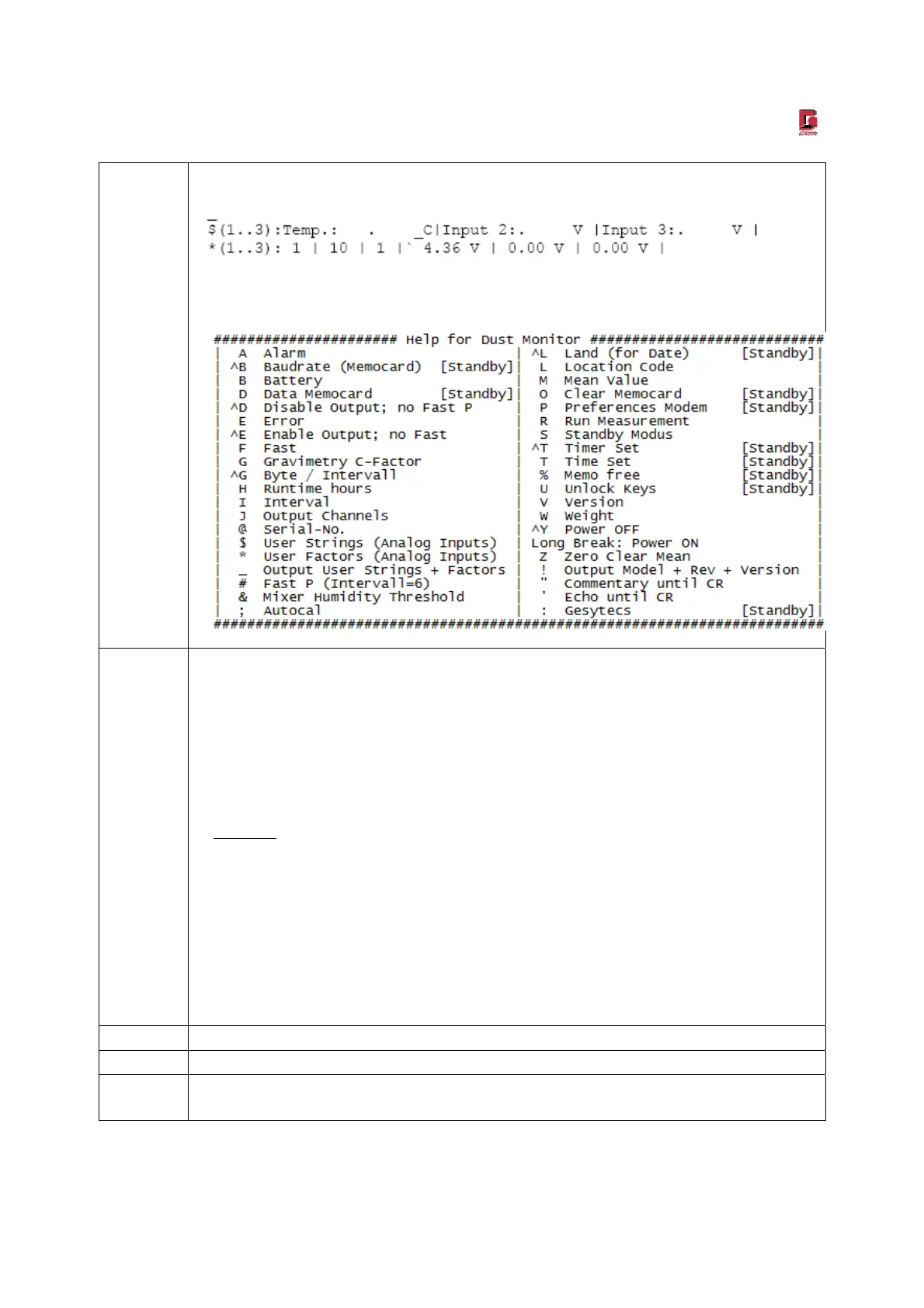

Example:
The first line shows the three user texts, the second line the three multiplication factors
for the analog voltages, and then the offset values.
$
Selection or change of the user texts as well as the factors for analog voltage outputs on
the LCD display (only within stand-by mode). Special characters (via ASCII 127) cannot be
input. When outputting, the character '°'(ASCII 248) will be displayed as '_'. By the key TAB
predetermined texts can be chosen which are to be confirmed by the key RETURN. They
can also be transcribed by any texts. The number output is always five digit and begins with
the 9
th
digit. Entering here characters, except of a decimal point, an acoustic warning
resounds. The multiplication factor which is relating to 1V can be input after the text. This
can also be changed by the command `*`.
Example:
Temperature sensor: 0°C = 3.0V and 50°C:=:8.0V
User-Text: Temp.: °C
User-factor: 10.0 [°C/V] Offset: 3.00V
The sensor data will be directly read out from the climatic sensor (sensors
version “E” on the third place of the serial number and higher are equipped with
an EEPROM for the sensor data). The adoption of the EEPROM data, inculding
the user text, happens only if the user factors inside the device are set to 1.0 and
the offset values to 0.0. A recalibration through the user thus is furthermore
possible (positive offset are not possible)
*
Change user factors and offset (only within stand-by mode).
?
Help for commands
%
Displaying the size of the data storage and the free storage space if not transcribed.
