14 Cecilware
®
Coffee Urns
Parts Diagram (continued)
220-00132 SIGHT
GLASS GAUGE BASE
(SOLD SEPARATELY)
ITEM PART DESCRIPTION QUANTITY
# FE75N FE75N CL75N FE100N FE100N CL100N FE200 CL200 FE300
DUAL DUAL DUAL
BREW BREW BREW
1 B157A TERMINAL BLOCK 4 WIRE 1 1 1 1 1 1 1 1 1
2 C036AL CONTACTOR, 3 POLE, 50 AMP - (240V) - - - - - - - - -
CG12AL CONTACTOR, 3 POLE, 50 AMP - (120V) 1 1 1 1 1 1 1 1 1
3 C395AL FUSE 6A SC-6 1 1 1 1 1 1 1 1 1
4 C396AL FUSEHOLDER, SC-6 1 1 1 1 1 1 1 1 1
5 A508004 AIR PUMP, AGITATOR (120V ONLY) 1 1 1 1 1 1 1 1 1
C512A AIR PUMP, AGITATOR (220V) - - - - - - - - -
6 L080Q WATER INLET VALVE (120V ONLY), .75 GPM - - - - - - - - 1
L080X WATER INLET VALVE (240V), .75 GPM - - - - - - - - 1
CD417 WATER INLET VALVE (120V ONLY), .35 GPM 1 1 1 1 1 1 - - -
CD418 WATER INLET VALVE (240V), .35 GPM 1 1 1 1 1 1 - - -
280-00020 WATER INLET VALVE .50 GPM (120V ONLY) - - - - - - 1 1 -
280-00020+C223AL WATER INLET VALVE .50 GPM+ 240V COIL - - - - - - 1 1 -
7 CH243 WIRING HARNESS - - - - - - 1 - 1
CH244 WIRING HARNESS - - - - - - - 1 -
CH387 WIRING HARNESS (MECH. TIMER) - - 1 - - 1 - - -
343-00128 WIRING HARNESS (120V ONLY) 1 1 - 1 1 - - - -
343-00129 WIRING HARNESS (240V) 1 1 - 1 1 - - - -
8 355-00032 SIGHT GLASS ASSEMBLY (COFFEE) 1 1 1 2 2 2 - - -
355-00034 SIGHT GLASS ASSEMBLY (COFFEE) - - - - - - 3 3 -
355-00036 SIGHT GLASS ASSEMBLY (COFFEE) - - - - - - - - 2

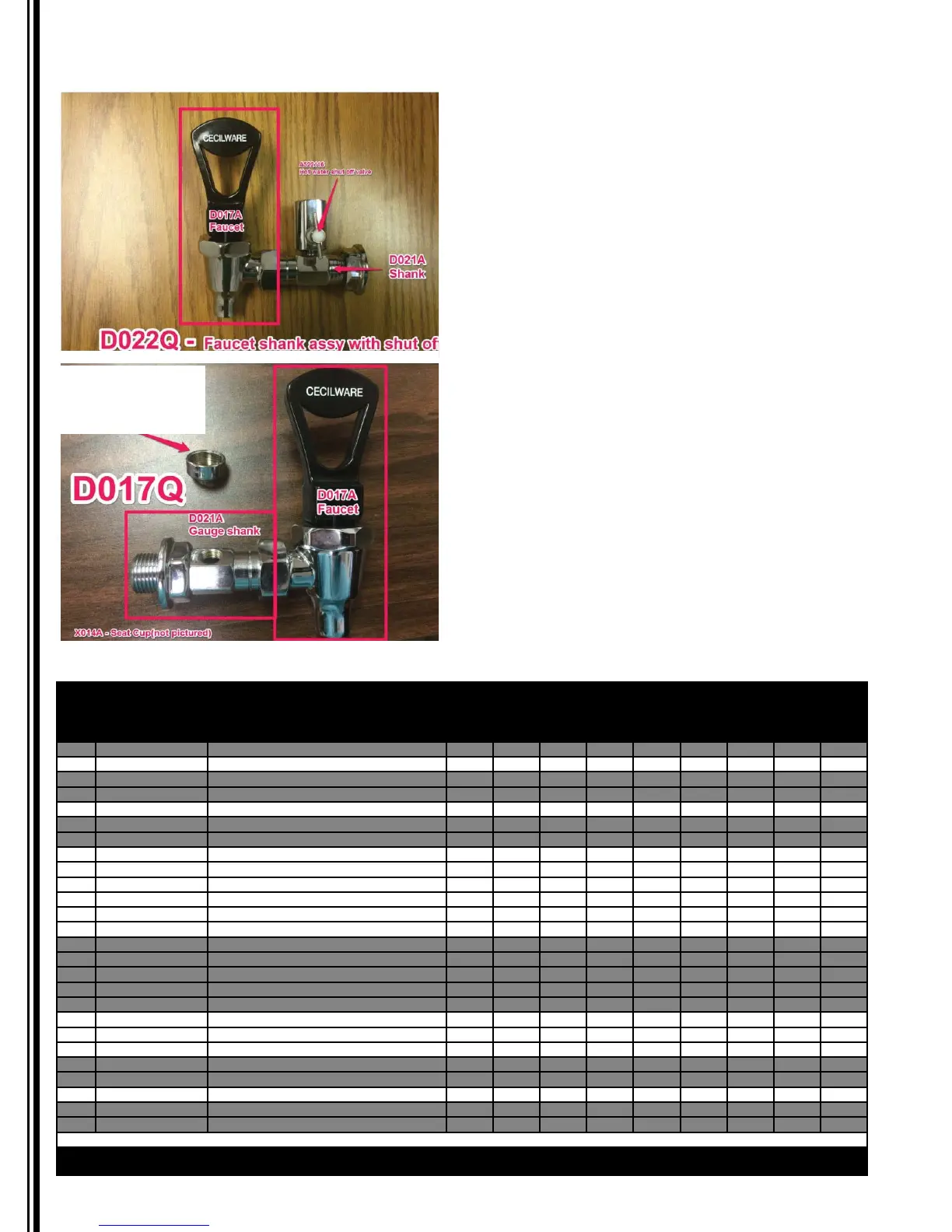

9 D017Q FAUCET, SHANK ASSEMBLY (COFFEE) 1 1 1 2 2 2 2 2 2
220-00132 SIGHT GLASS GAUGE BASE 1 1 1 2 2 2 2 2 2
10 D022Q FAUCET, SHANK, VALVE ASSEMBLY (WATER) 1 1 1 1 1 1 1 1 1
11 355-00035 SIGHT GLASS ASSEMBLY (WATER) 1 1 1 1 1 1 - - -
355-00037 SIGHT GLASS ASSEMBLY (WATER) - - - - - - - - 1
* Replace coil on inlet valve with 220V coil
