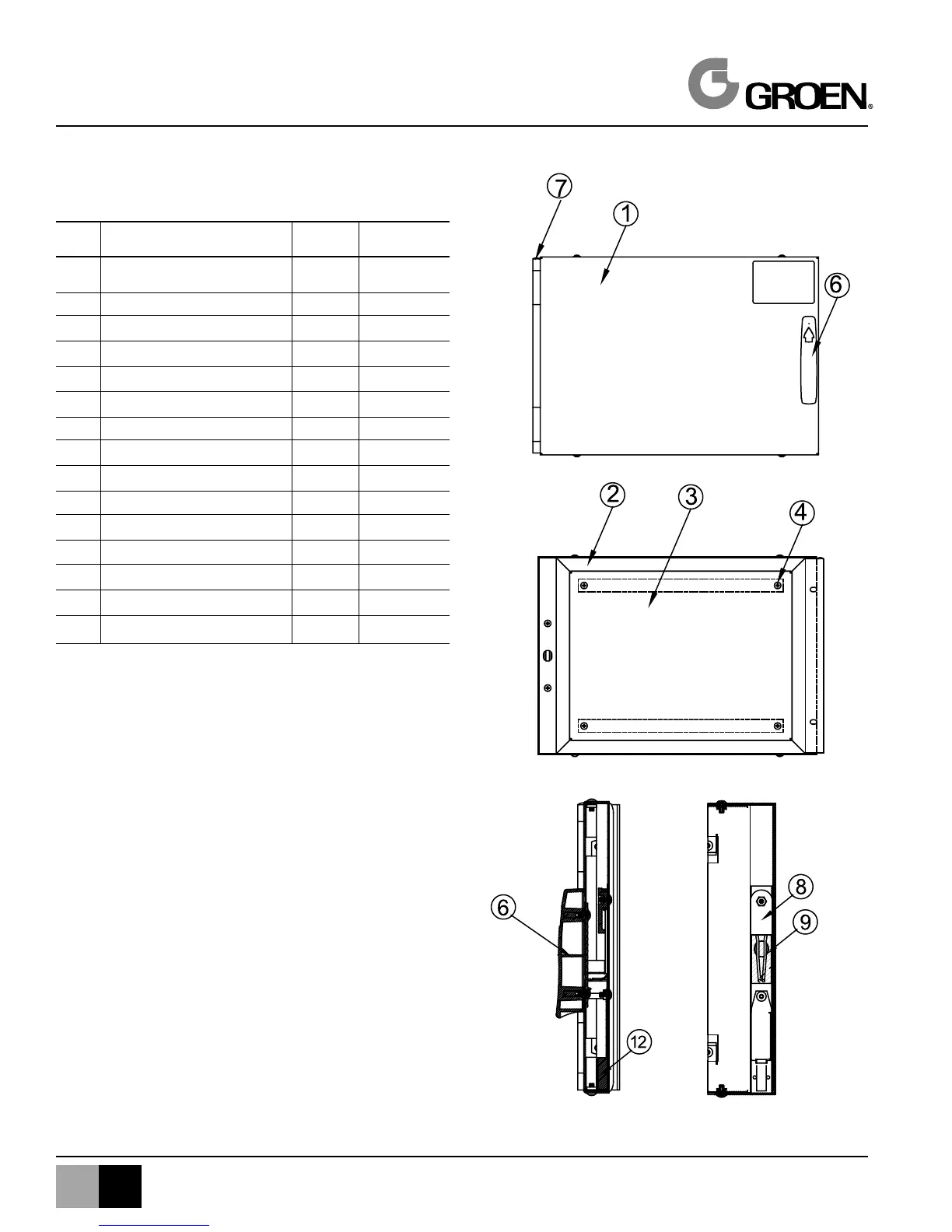

PARTS IDENTIFICATION • VRC-3E
No. Description Qty. Part No.
1 Outer Door Panel 1 130895
2 Gasket 1 124849
3 Inner Door Panel 1 130861
4 Truss Head Screws 6 005764
5* Hex Head Screws 2 005608
6 Door Handle 1 129723
7 Door Hinge 1 140755
8 Door Cam 1 074252
9 Latch Assembly 1 140752
10* Door Spacers 4 071206
11* Insulator Board 1 140754
12 Block and Magnet 1 069762
13* Never Seez Grease .01 oz. 074210
14* RTV 732 Sealant As Req’d 001711
15* Loctite 242 .01 oz. 073282
*Not shown
6.3 Door Assembly
