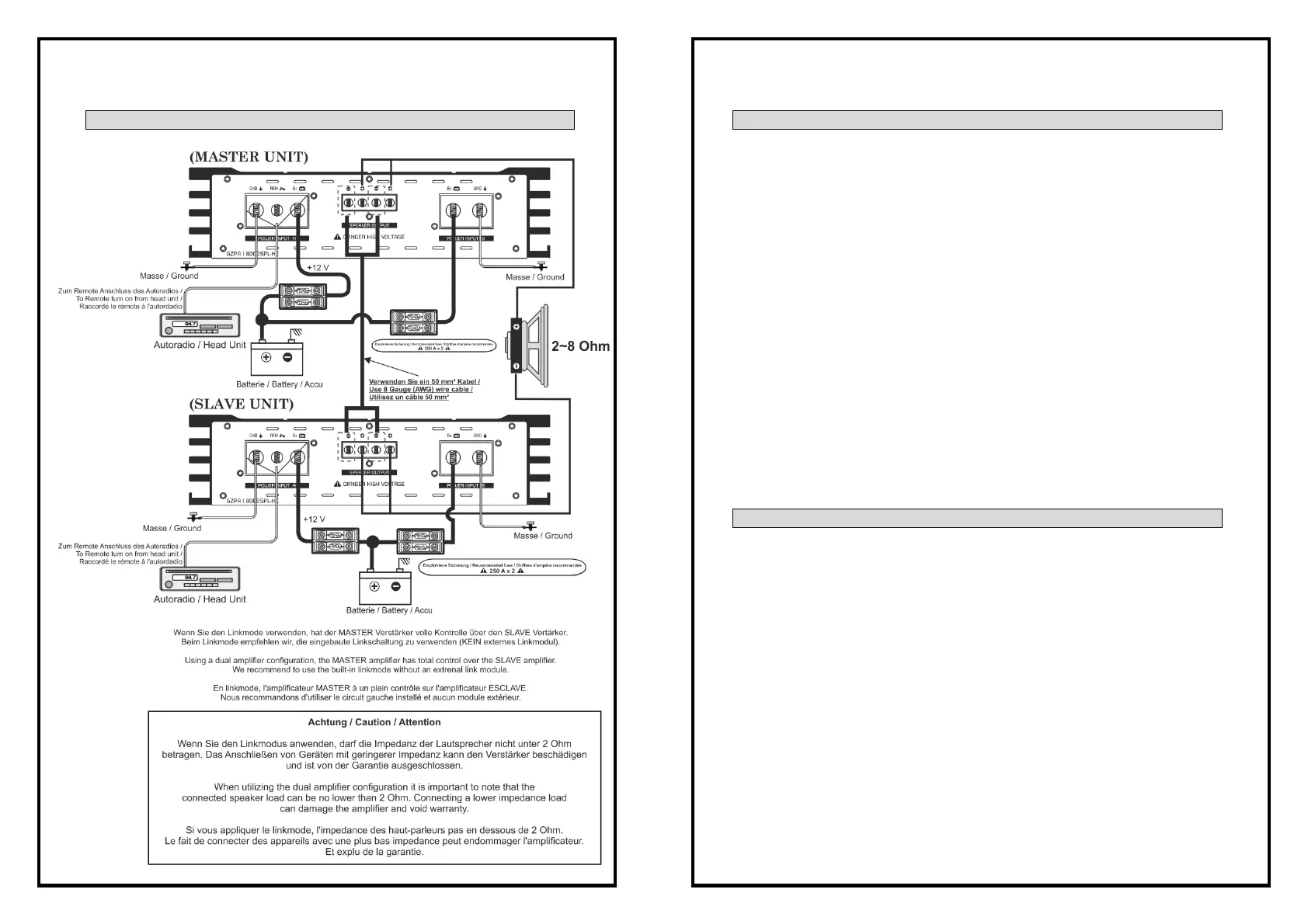

Linkmode
Connections
Please read owner’s manual of your car before you disconnect the battery.
+12 Volt (Fused) Constant power: To Battery (+)
Use a strong power cable (50 mm²) for connection the +12V terminals of the amplifier to the + terminal of your
battery.
It is necessary to install 2 In-line fuse holders with a maximum distance of 20 cm to your battery to ensure a safe
operation of the amplifier. Make sure the fuses are not connected when connecting the + cable to the battery-
this could cause defects on the device or injuries.
Ground
Disconnect the battery and connect the ground terminals tot he vehicle chassis. Is absolute necessary, that the
same wire-cross section is used for the ground and +12 V connection. Use s ground wire that is as short as
possible (about 25 cm / 10”). To avoid ignition noise caused by ground loops, it is necessary that the amplifiers
be grounded to a clean, bare metal surface of the vehicles chassis.
Remote
Connect the Remote terminal with the remote output of your head unit or another 12 V source like your antenna
terminal.
Turning on your amplifier
The amplifier automatically turns on a few seconds after you turn your vehicle’s ignitions switch to ACC ON or
turn on your auto sound system, depending on how you wired the system.
Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools down.
The input level must be adjusted correctly to provide a good performance of the amplifier (200mV – 10V).
Adjusting the audio level / Input sensitivity
Step 1 Turn the input level controller fully to MIN in counterclockwise direction.
Step 2 Turn the auto sound system’s volume control to about two-third of its full range.
Step 3 Adjust the auto sound system’s volume control to a comfortable listening level.
Please note – The gage on a CD, that reproduces music with a higher dynamic is essential higher as on Radio
reception.
