Installers should pay attention to the direction during installation. They shall be installed vertically and shall
not be tilted.

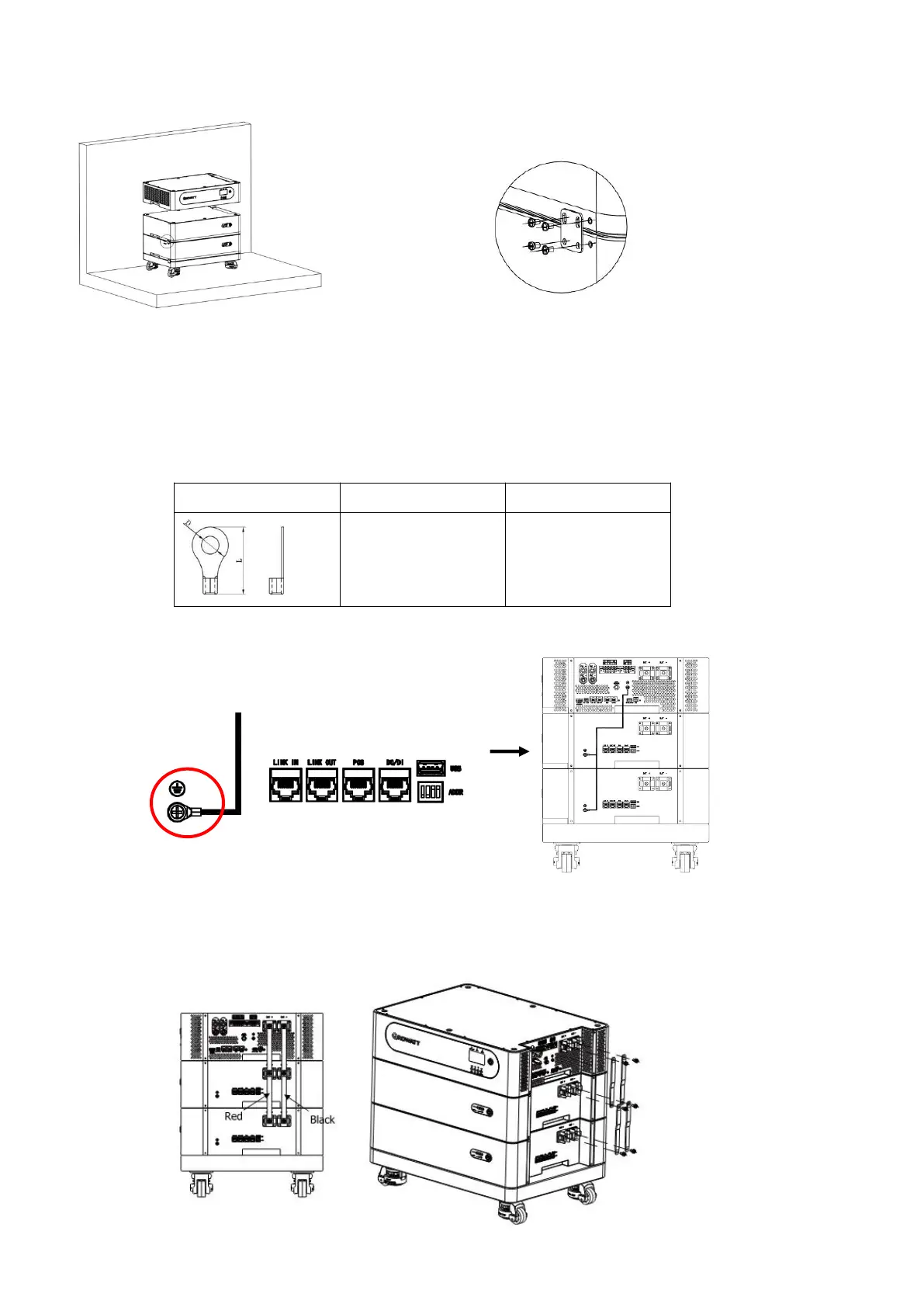

You can install fixing plate to more stable as the picture below if you request or move.
Install the PCS module, The PCS module should be installed at the top, not in other positions.
Electrical Connection
1.Ensure the battery is turned off. You are advised to use a meter to check.
2.Connecting Grounding Wire
a. Lock the Copper connector with the M6 screw as the table and picture below(There are red
and black copper connectors):
b. Each battery module and inverter must be connected the grounding wire;
3.Connecting Power copper connector
Use the Copper connector with the M6 screw locking(the lock torque value:2-3Nm), as the
table and picture below (There are red and black copper connectors)
