2 Installation Process
2.1 Installation Location Requirements
＊ A manually operating breaker should be installed between battery and PCS to control
the main circuit under installation, wire connection and maintenance mode. The breaker
can be operated manually without using any tool. The distance between battery and the
breaker should comply with local regulations.
＊ Do not install or use battery near explosive or inflammable substances.
＊ Use battery in well-ventilated environment with temperature ranging from -10℃ to 50℃ .
＊ For outdoor installation, build sun & rain shade to avoid direct sunlight and rain exposure.

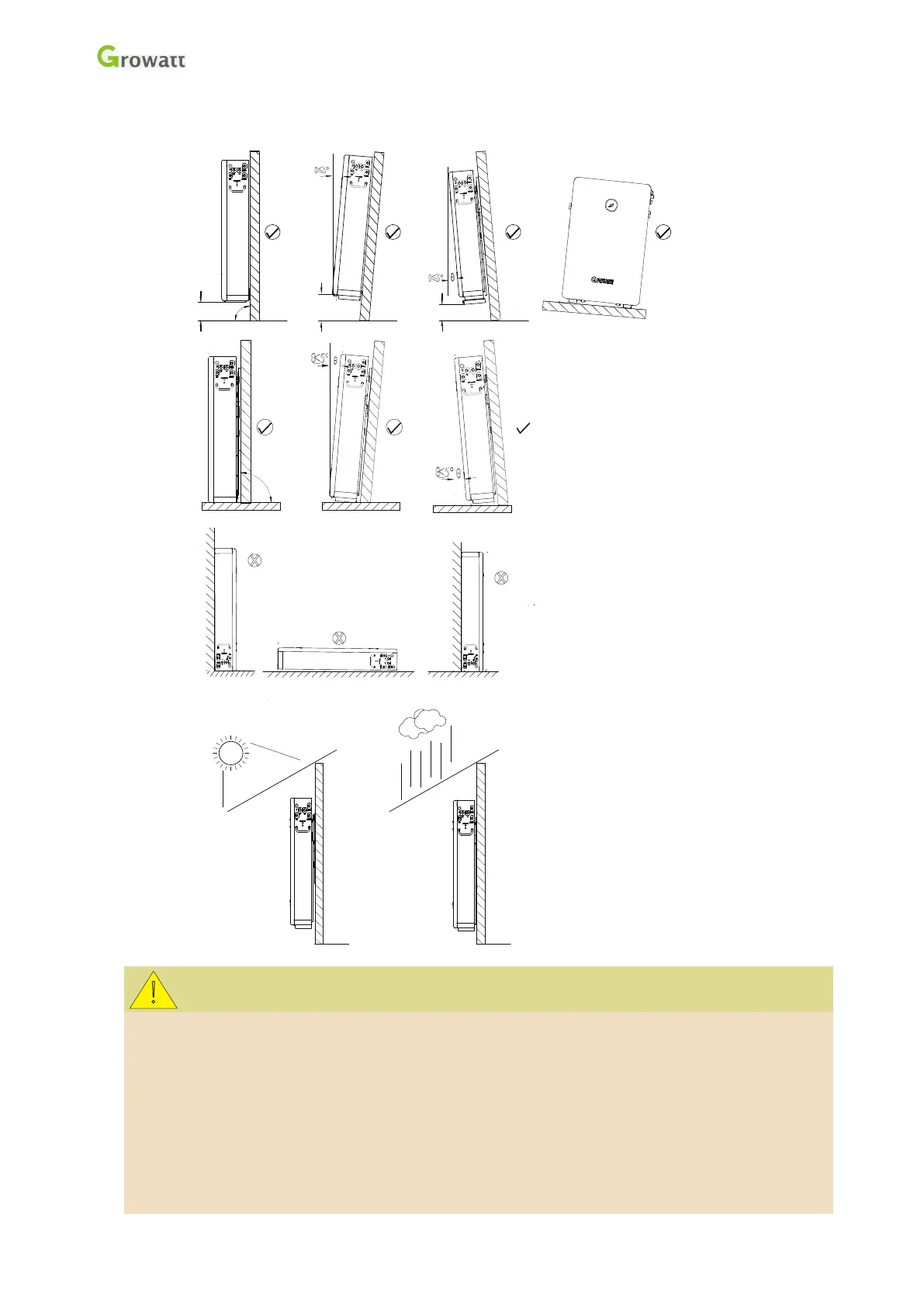

＊ Do not place battery upside down nor alongside as the above picture shown.
＊ Maintain a minimum level of dust and dirt in the environment.
2
θ≤5°
θ≤5°
Wall
Wall
Wall
Ground
500 ≤d≤1200
θ
90°
500 ≤d≤1200
500 ≤d≤1200
θ≤5°
Ground
Ground
Ground
Wall
Wall
Wall
θ
θ
90°
θ≤5°
Ground Ground
Wall
Ground
Wall
Wall
Shenzhen Growatt New Energy Technology CO.,LTD
