⚫ The wire harness passes through the corresponding three terminals and
screwed themon the terminals. A 5 pin three-phase power input terminal is
for power input line, 3 pin power output terminals is for loads, and the 3 pin
RS485 and 12Vdc terminals are for the communication of the future
application.
Figure 2-5

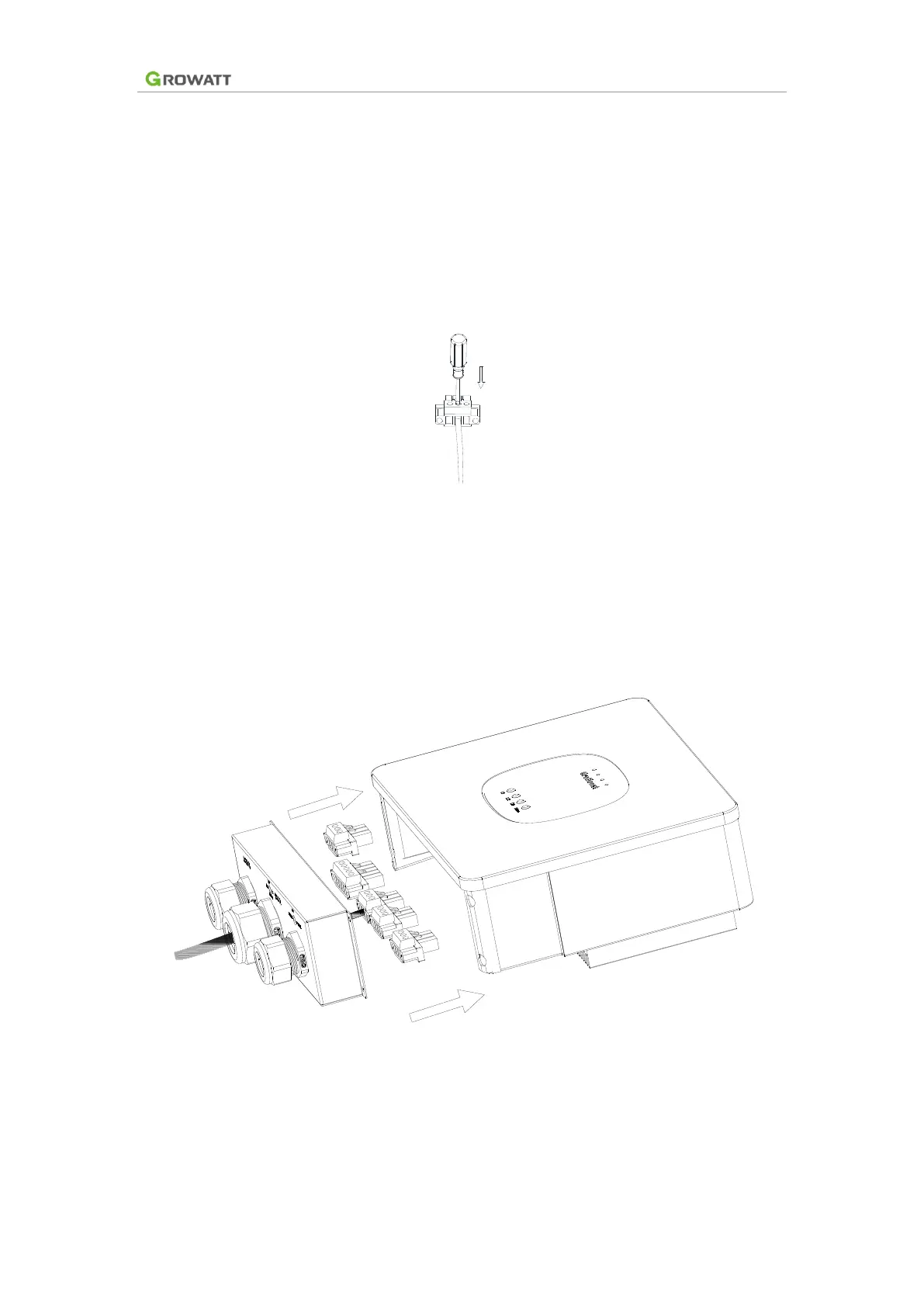

⚫ Screw the wire on the male terminal, connect it to the corresponding
female socket of the device, and fix screws on both sides of the terminal to
fix the terminals.
Figure 2-6
⚫ Adjust wiring distance and screw the four screws fixing the sealing lower
cover to fix the lower cover.
