Growatt GroBoost - Installation; Installation Notice

6
12
RS485- (D-)
24
Output PE earth wire
25
Output N zero line
26
Output L1 live wire
Table 1-3
二、Installation
Notice:
⚫ Make sure to read the instructions to understand product information and
safety precautions before installation;
⚫ The installer must use insulated tools and wear safety equipment during
the installation procedure；
⚫ Construct sun and rain shelters to avoid GroBoost directly exposed to
sunlight and rain.

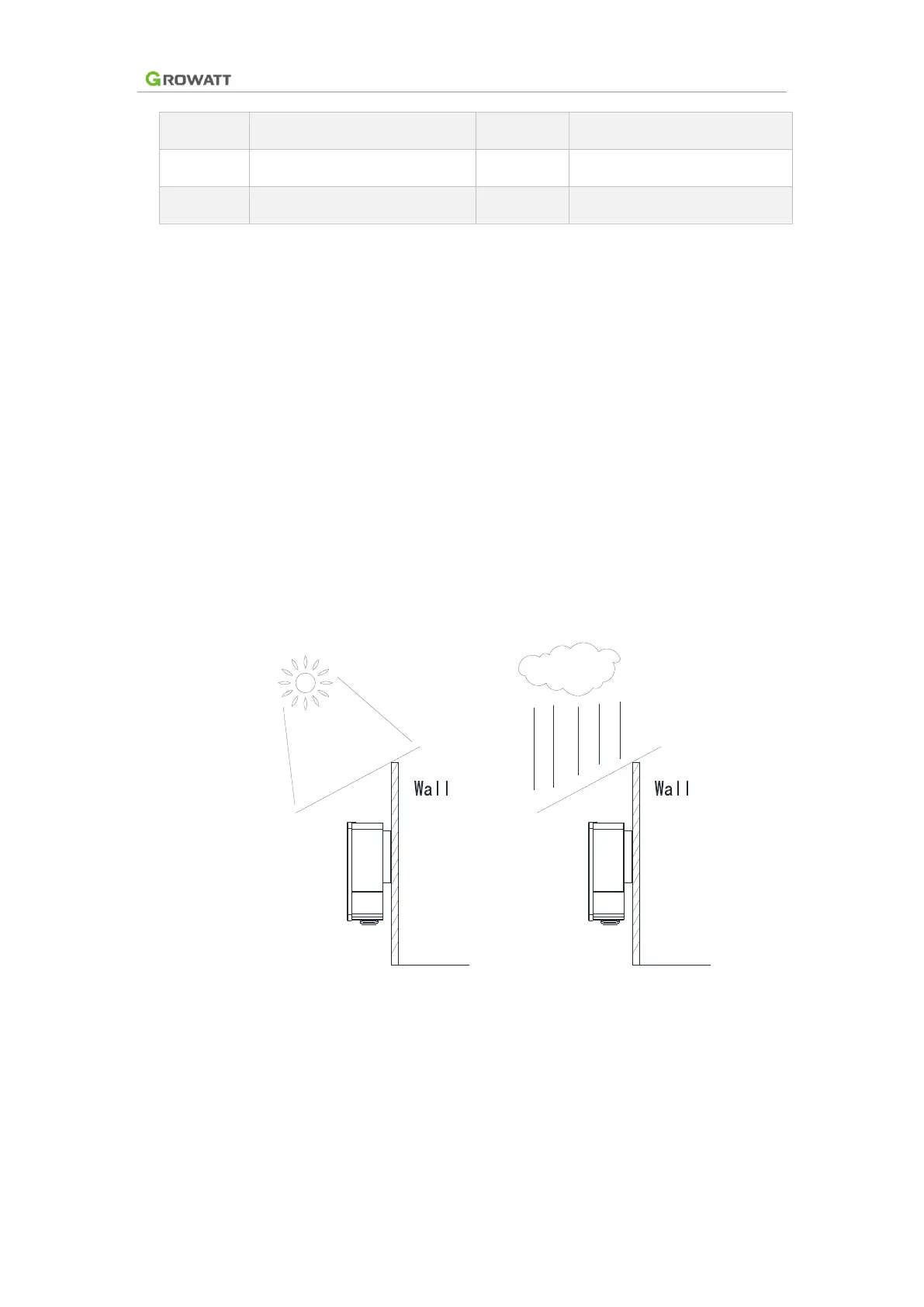

Figure 2-1
◆ Installation Process
⚫ Fix the wall-mounted bracket hanging on the wall with screws, drill holes in
the wall after positioning the four screw holes, put the plastic expansion
