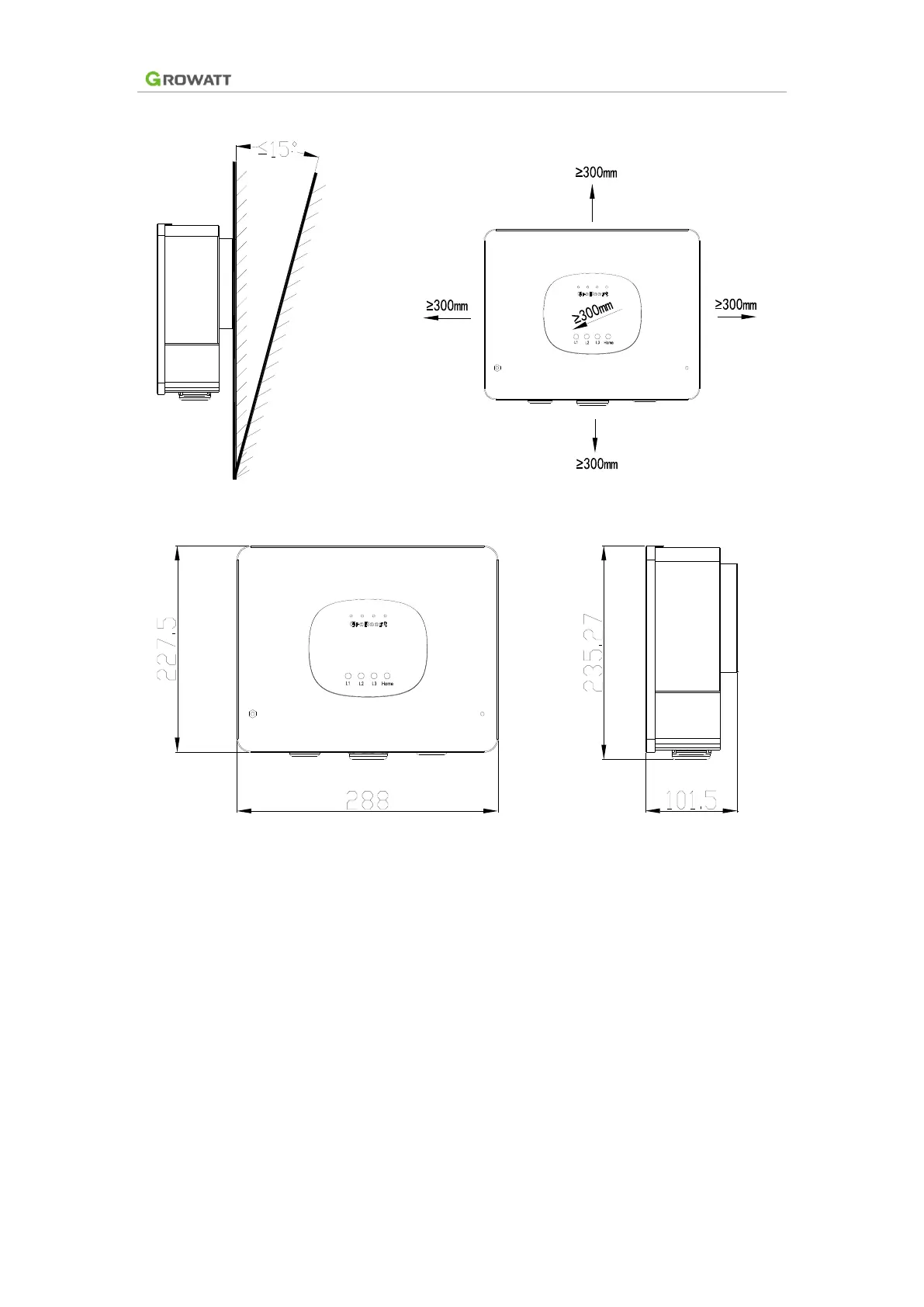

Figure 2-9
GroBoost Notice for wiring:
⚫ Remove the lower cover of GroBoost, and you need to pass the wire
harness through the corresponding three terminals to prevent the wire
harness from being twisted.
⚫ Use a no less than 4mm2 copper core wire for the power line, ground line,
and load line. After stripping the wire, make sure that the wire is not too
long, generally 10mm.For 485 communication lines please use shielded
twisted wire.
⚫ Put the stripped wire into the terminal and use a flat-blade screwdriver to
