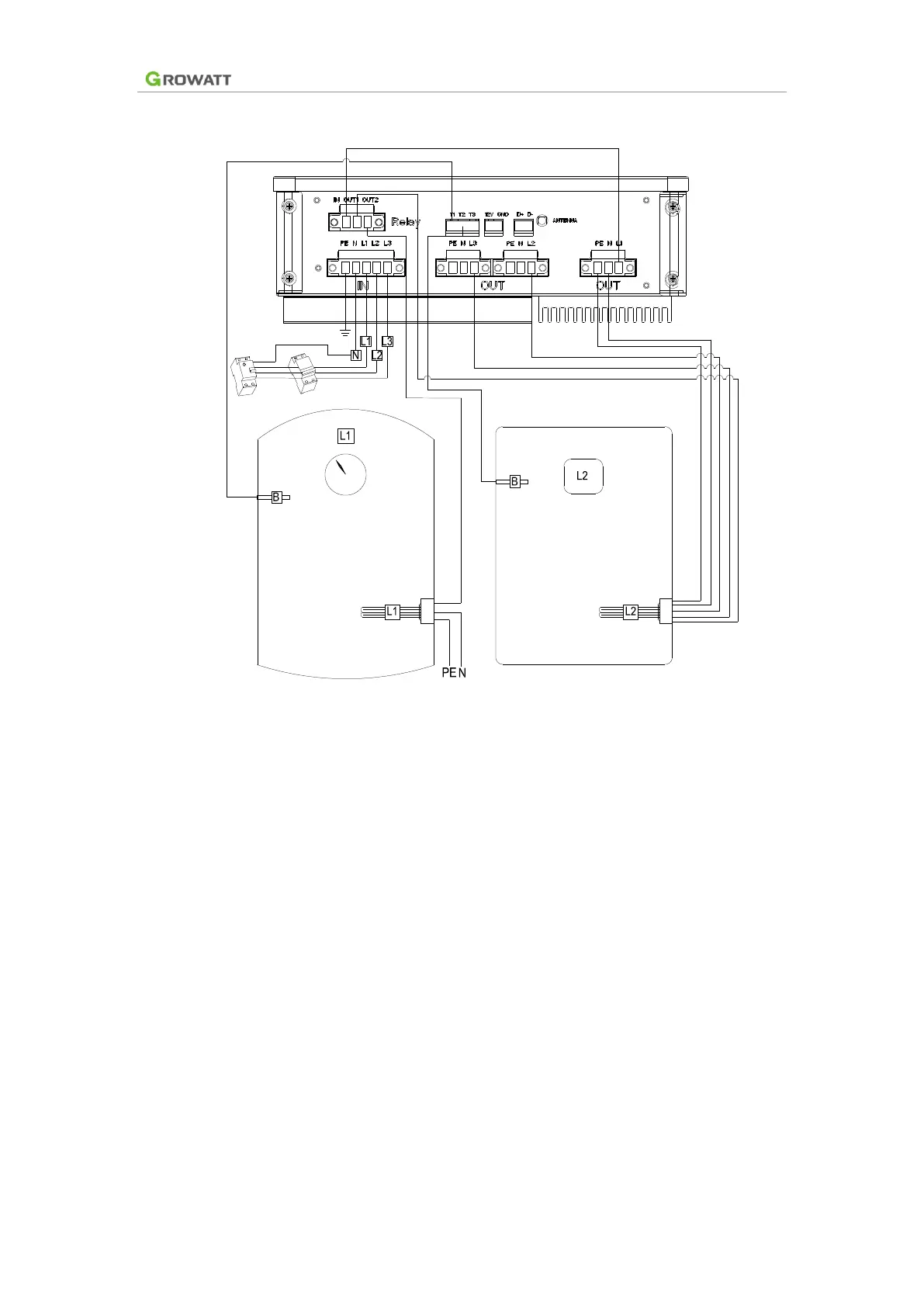

Figure 3-5
注意
⚫ Phase L1 has an adjustable power output mode while phase L2/L3 is a
fixed power output mode. The adjustable power output mode is used for
the PV linkage application,the power output will be adjusted for the
resistive load according to the surplus solar power.
⚫ Three temperature sensors are related to the phase L1/L2/L3 separately.
The T1 terminal is related to phase L1, the T2 terminal is related to phase
L2 and the three-phase load, T3 terminal is related to phase L3.
