Growatt MIN 6000TL-X User Manual

15
16
ØPlease make sure the inverter is installed at the right place.The inverter can't install
close to trunk.
5.3 Mounting the Inverter

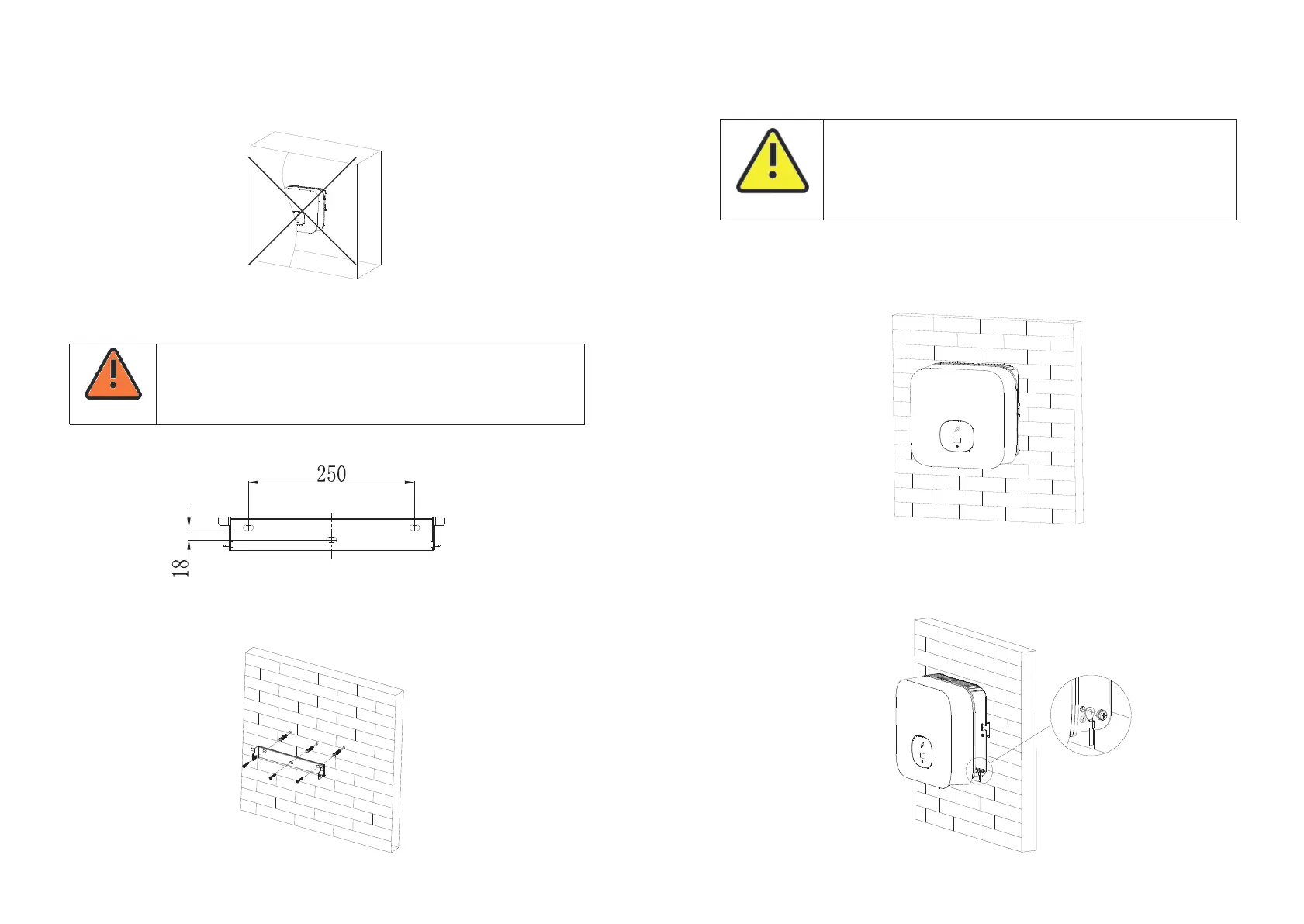

5.3.1 Mounting the Inverter with bracket
5.3.2 Fixed the inverter on the wall
DANGER
In order to avoid electrical shock or other injury, inspect existing
electronic or plumbing installations before drilling holes.
Fix the mounting bracket as the figure shows. Do not make the screws to be flush to
the wall. Instead, leave 2 to 4mm exposed.
Falling equipment can cause serious or even fatal injury, never
mount the inverter on the bracket unless you are sure that the
mounting frame is really firmly mounted on the wall after carefully
checking.
Hang the inverter on the bracket through the match hooks on bracket.
Ø After confirming the inverter is fixed reliably, fasten one M6 safety-lock sockets
head cap screws on the right or left side firmly to prevent the inverter from being
lifted off the bracket.
ØRise up the inverter a little higher than the bracket. Considered the weight of
them.During the process please maintain the balance of the inverter.
WARNING

Growatt MIN 6000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Input current	27.2 A
Input voltage	80 - 500 V
Output current	16 A
Output voltage	100 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	6000 W
Maximum input voltage	500 V
Output power capacity	6 kVA
Quantity per pack	1 pc(s)
Product color	White

Weight and Dimensions

Depth	350 mm
Width	375 mm
Height	160 mm
Weight	10800 g
