Growatt MIN 6000TL-X User Manual

23
24

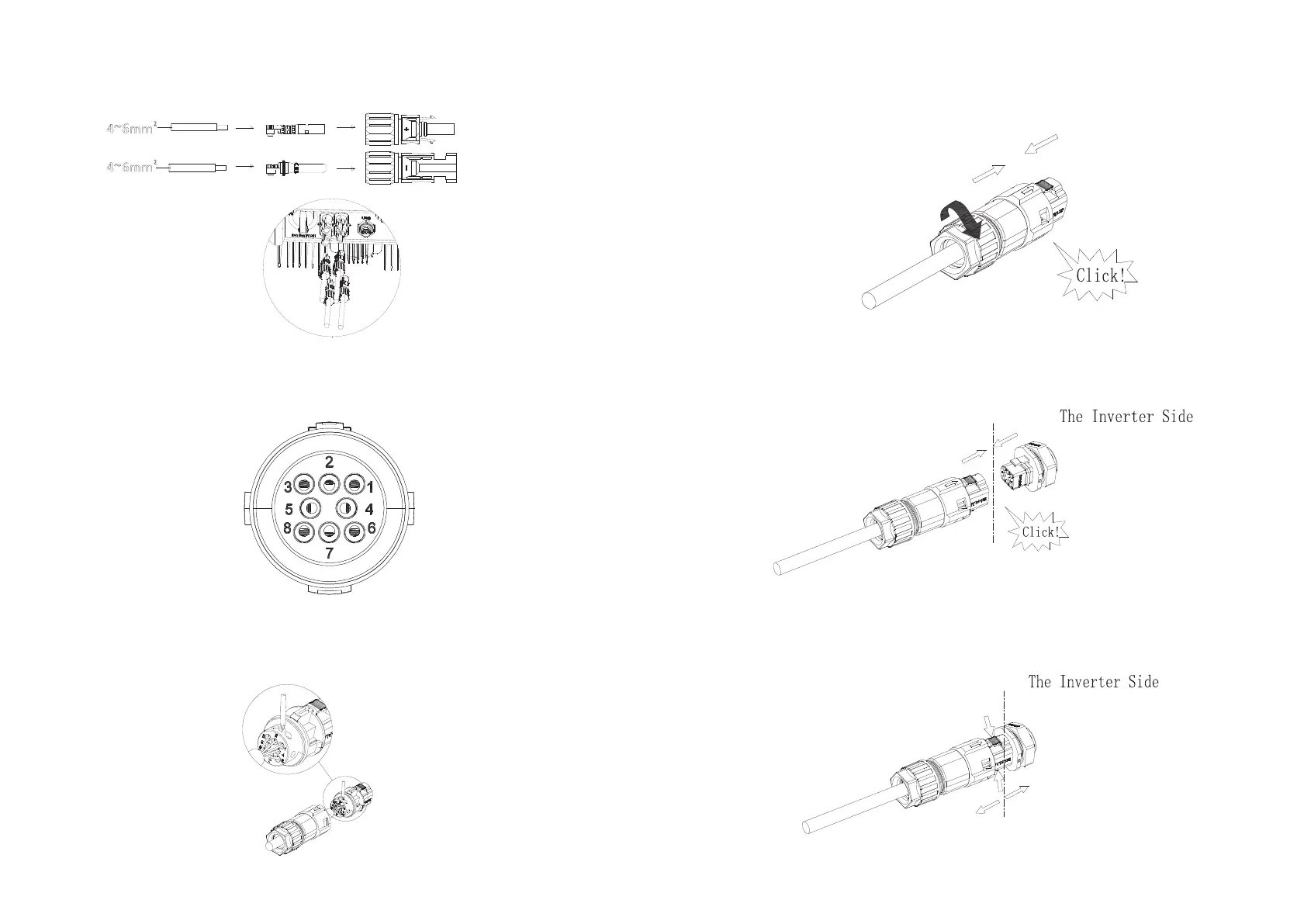

Procedure
Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded
sleeve in sequence, insert cables into connection terminal according to number
indicates on it and tighten the screws firmly. Please try to pull out the wire to
make sure the it's well connected.
Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on
the inverter.
Uninstall signal connector
6.5 Connecting signal cable
This series inverter has one 8 Pin signal connector(There are two connectors for
AS/NZS4777 model ) . Signal Cable Ports:
Step 1 Press the fasteners and pull it out from the inverter.
Connection of PV terminal

Growatt MIN 6000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Input current	27.2 A
Input voltage	80 - 500 V
Output current	16 A
Output voltage	100 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	6000 W
Maximum input voltage	500 V
Output power capacity	6 kVA
Quantity per pack	1 pc(s)
Product color	White

Weight and Dimensions

Depth	350 mm
Width	375 mm
Height	160 mm
Weight	10800 g
