Growatt MIN 6000TL-X User Manual

33
34

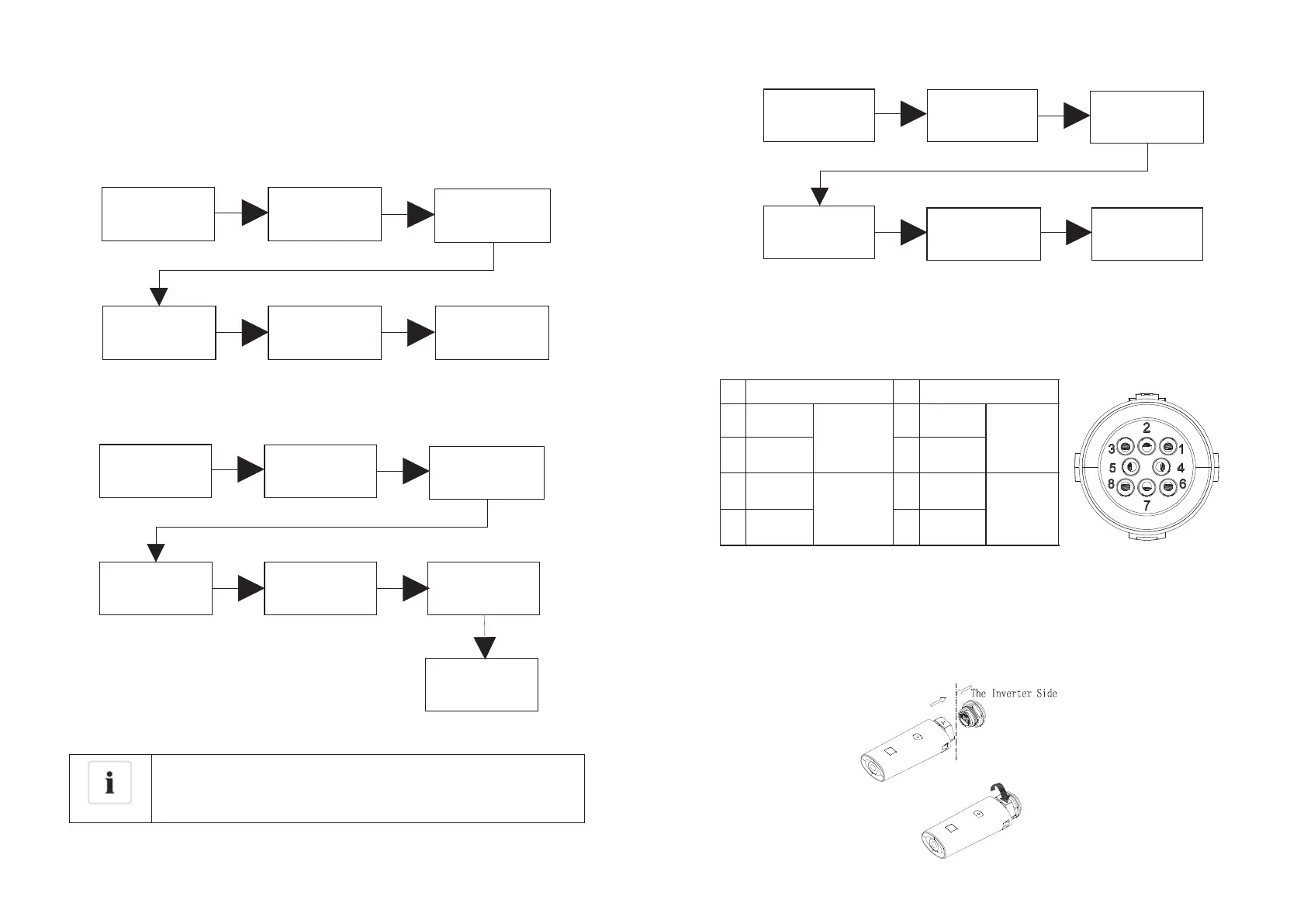

7.3 Advanced setting
7.4 Communications
7.3.1 Reset Country
7.3.2 Export limitation setting
7.4.1 RS485
7.4.2 USB-A
7.3.3 Reset factory
Single touch to switch display or make the number +1.
Double touch to confirm you setting.
The password of advanced setting is 123.
Set Country
VDE0126
Set Country
xxxxxxx
Set OK
Set parameter
General
Advanced
Password
123
Single touch to switch display or make the number +1.
Double touch to confirm you setting.
Exporlimit
OFF ON
Meter
CT
Set OK
Set parameter
General
Advanced
Password
123
ExportLimit Rate
XXX.X%
Single touch to switch display or make the number +1.
Double touch to confirm you setting.
Reset factory
NO
YES
Set OK
Set parameter
General
Advanced
Password
123
This series inverter provides two RS485 ports. You can monitor one or more inverters by
RS485.Another RS485 port is for smart meter(Export limitation functionality.).
Information
Perform this operation with caution because all configured parameters
except the current date,time, and model parameters will be restored to
their factory defaults.
USB-A port is mainly for connecting monitor or firmware updage：
Through USB connection,we can connect external optional monitor ,for example :Shine
WIFI-X,Shine 4G-X, Shine LAN-X,ect.
And also you can quickly update the software by U disk.
We can monitor as below:
Make sure the △ on the front side, then insert the monitor,fasten the screw.
No.
Definition
1
2
3
4
+12V
COM
RS 485A1
RS 485B1
Power
supply for
external
relay( 2W)≤
Signal for
monitor
No.
Definition
6
5
7
8
RS 485A2
RS 485B2
CT-P
CT-N
Signal for
export
limitation
Signal for
Smart
Meter

Growatt MIN 6000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Input current	27.2 A
Input voltage	80 - 500 V
Output current	16 A
Output voltage	100 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	6000 W
Maximum input voltage	500 V
Output power capacity	6 kVA
Quantity per pack	1 pc(s)
Product color	White

Weight and Dimensions

Depth	350 mm
Width	375 mm
Height	160 mm
Weight	10800 g
