Growatt MOD 15KTL3-X User Manual

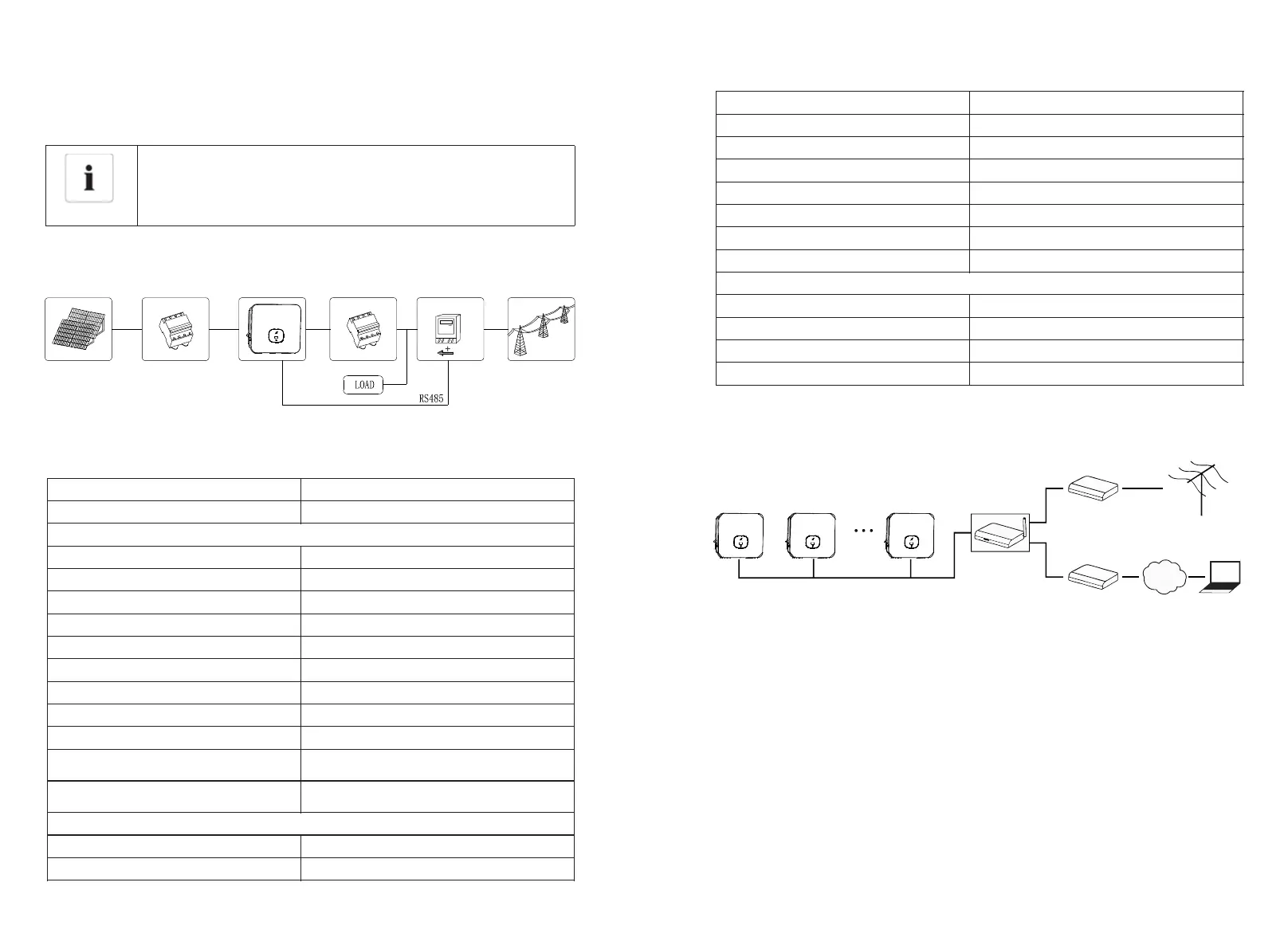

Fig 6.21
6.6 Active power control with smart meter , CT or ripple control
signal receiver
Information
The position of export limitation CT or Meter must between the
Inverter & Load and gird.
Multiple inverter combination is not suitable in Australia.
This series inverter has integrated export limitation functionality. To use this function,
you can connect the Growatt smart meter. For the detailed information, please contact
with Growatt.
27
28
Manufacturer
Eastron
Type
SDM630CT-Modbus V3
General Specifications
Voltage AC (Un)
3*230V
Voltage Range
184~299V AC
Base Current (Ib)
10A
Power consumption
≤2W
Frequency
50/ 60Hz(±10%)
AC voltage withstand
4KV for 1 minute
Impulse voltage withstand
6KV-1.2uS waveform
Overcurrent withstand
20Imax for 0.5s
Pulse output 1
1000imp/kWh (default)
Pulse output 2
400imp/kWh
Display
Max. Reading
LCD with white backlit
999999kWh
Environment
Operating temperature
-25℃to +55℃
Storage and transportation temperature
-40℃to +70℃
Reference temperature
23℃±2℃
Relative humidity
0 to 95%, non-condensing
Altitude
up to 2000m
Warm up time
3s
Installation category
CAT II
Mechanical Environment
M1
Electromagnetic environment
E2
Degree of pollution
2
Mechanics
Din rail dimensions
72x66x100 (WxHxD) DIN 43880
Mounting
DIN rail 35mm
Ingress protection
IP51 (indoor)
Material
self-extinguishing UL94V-0
Fig 6.22
Active power control with a Radio Ripple Control Receiver(RRCR).
Monitor
Radio ripple
control receiver
Public Grid
Router
Internet
PC
6.7 GFCI(Standard)
6.7.1 Ground Fault Circuit Interrupt(GFCI)
This inverter includes an integrated residual current device .If the leakage current is
over 300mA and last for more than 300ms,the inverter will report 201 fault and the
OLED will display Residual I High.
The inverter has the function of detecting residual current and protecting the inverter
against residual current. If your inverter must equip a AC breaker which has the function
of detecting residual current ,you must choose a Type A RCD breaker with the rating
residual current more than 300mA.

Growatt MOD 15KTL3-X Specifications

General

Product type	-
Maximum power	15000 W
Output current	25 A
DC input voltage	1100 V
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Output power capacity (max)	15 kVA
Input operation voltage (min)	160 V
Maximum input current per MPPT	26 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Wi-Fi	Yes
Operating temperature (T-T)	-25 - 60 °C
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
