5.2 Install the wall mount
5.2.1 Install the wall mount
Secure the wall mount as shown, do not let the screws flush with the wall, instead expose 2 to
4 mm.

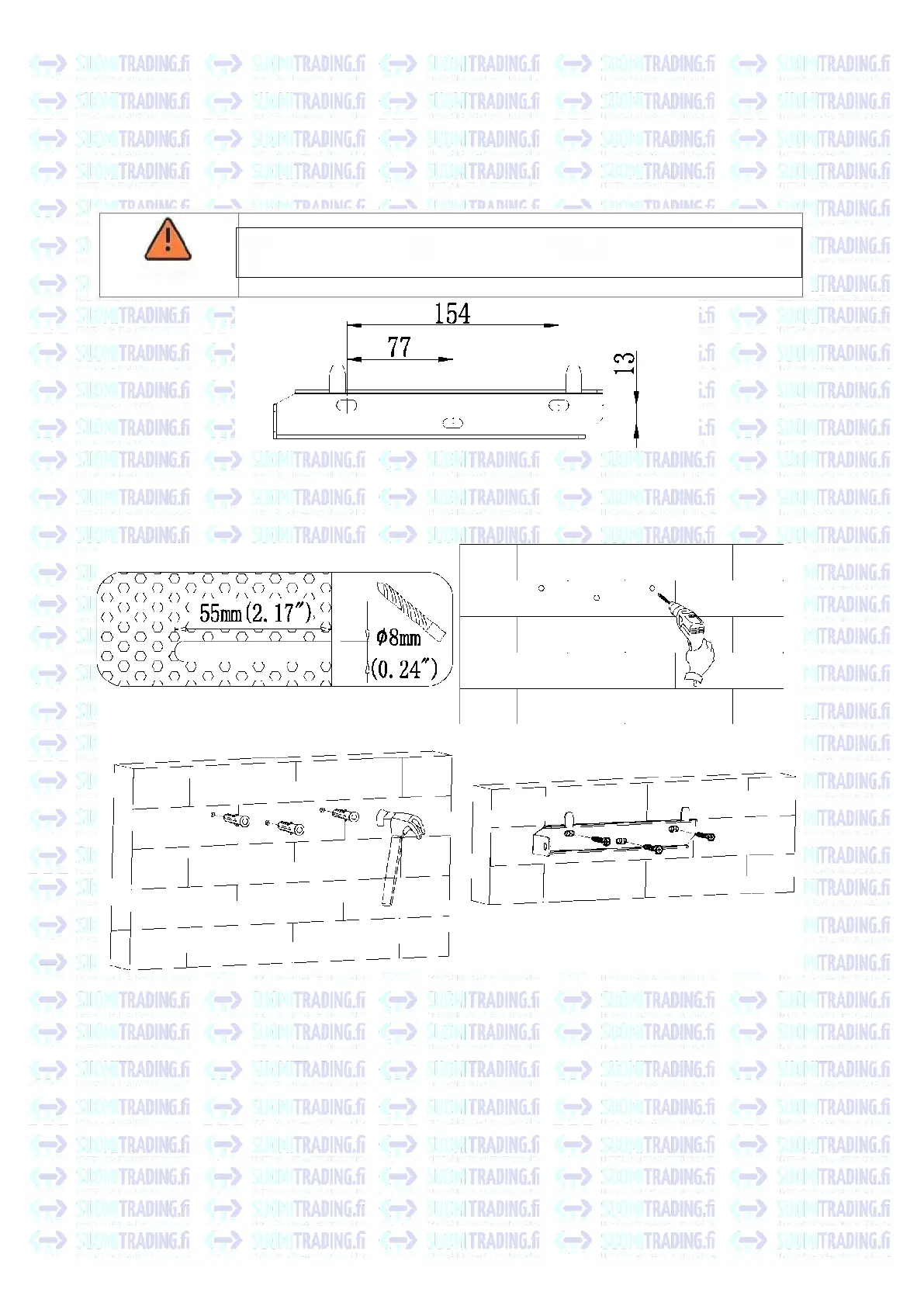

Fig 5.8 Schematic diagram of wall mount installation
5.3 Installing the inverter
Note: Before installing the inverter, you must first make sure that the wall mount is firmly
fixed to the wall.
steps:
1 .Hang the inverter on the wall mount and keep the inverter balanced when hanging.
2.To ensure that the inverter can be securely attached to the wall, secure the side of the inverter
with the M5 safety screw on the left.
To prevent electric shock or other damage, be sure to check the wall for
power or other piping before opening the hole in the wall.
Fig 5. 7 Specifications of wall mount
