Purchased before 2017
AC voltage
reading<262V
1.2.2.1
AC voltage
reading>262V
1.2.2.2
NB: for 5000UE model, if the inverter indicate AC V OUTRAGE, please ask your customer to
check the AC switches first, including AC isolator and solar main supply switch(in the Main
Switch Board)
1.2.1 MTL-S model inverter
If the inverter’s model is MTL-S, please find DIP switch at the bottom of inverter and set it to
switch 1, 5 on while switch 2, 3, 4 off. Please refer to Fig 1.1 and Fig 1.2.

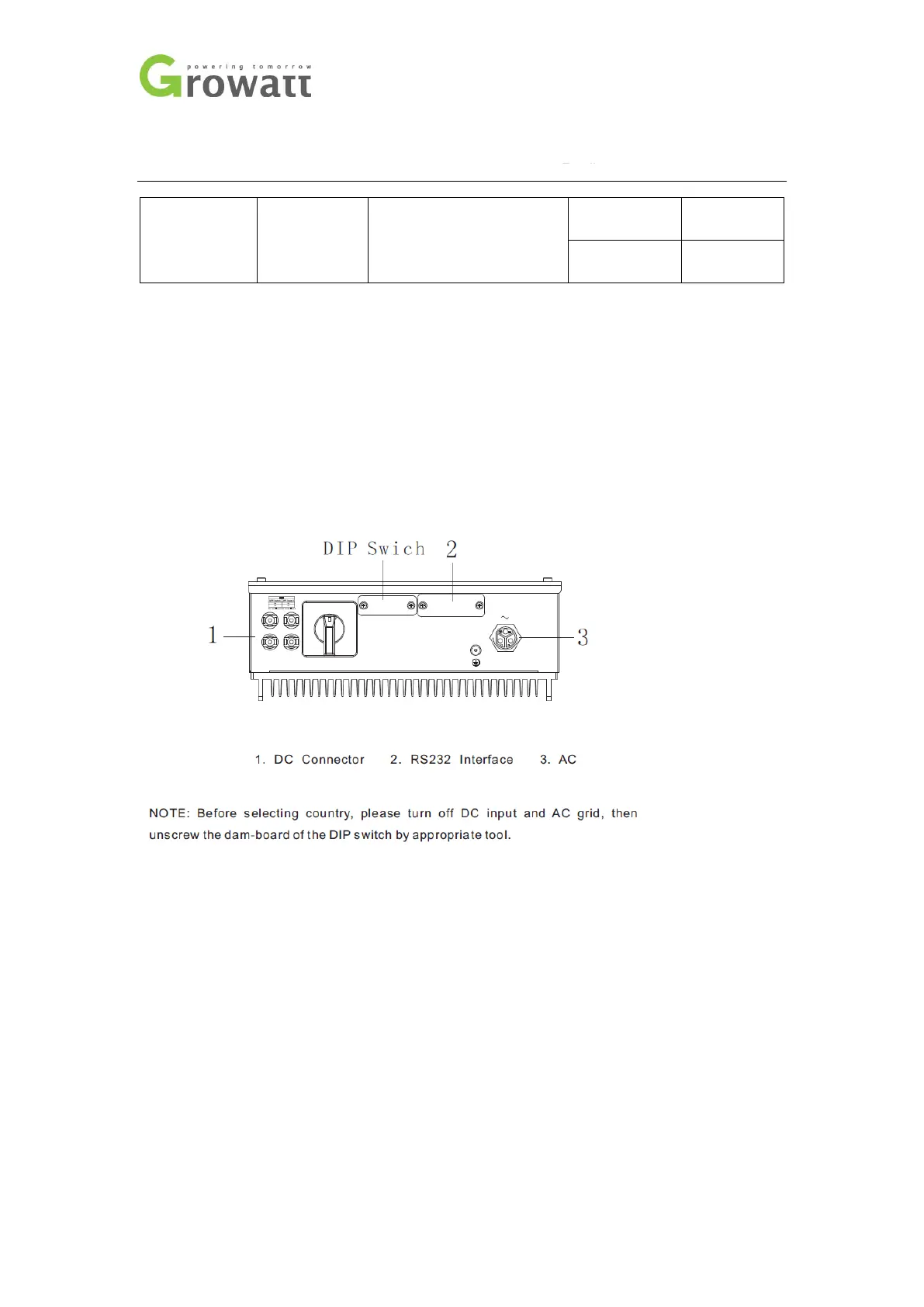

Fig 1.1
