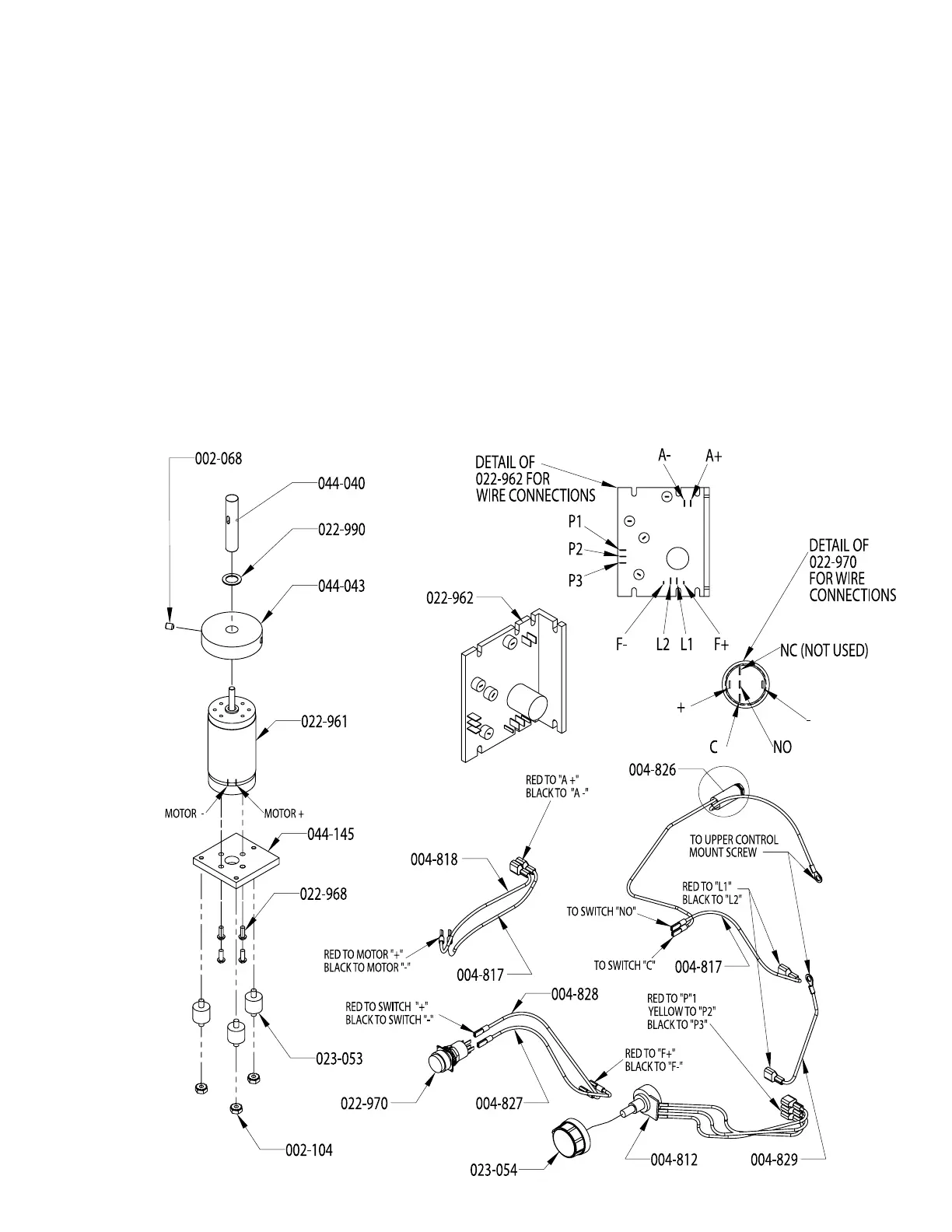

GraverSmith™ Electrical Parts List
002-068 Set screw #10-32 x 1/4" blk
002-104 Nut #8-32 HExKEP Z/P
004-812 Speed pot wire assembly
004-817 Red wire assembly motor to control
004-817 Red wire assembly switch to control
004-818 Black wire assembly switch to control
004-826 Power jack assy For GraverSmith
004-827 Red wire assembly switch
004-828 Black wire Switch
004-829 Ground wire assembly heatsink to board mount screw
022-961 4000 rpm motor
022-962 Controller board
022-968 6-32 x 0.375 round head machine screw
022-970 24VDC green illuminated switch
022-990 Nylon washer
023-053 Isolation mount
023-054 Control knob rogan PT-6-PS
044-040 Valve rotor
044-043 Flywheel for valve rotor
044-145 Motor mount mass plate
