Grundfos CM 5 User Manual

Appendix
17

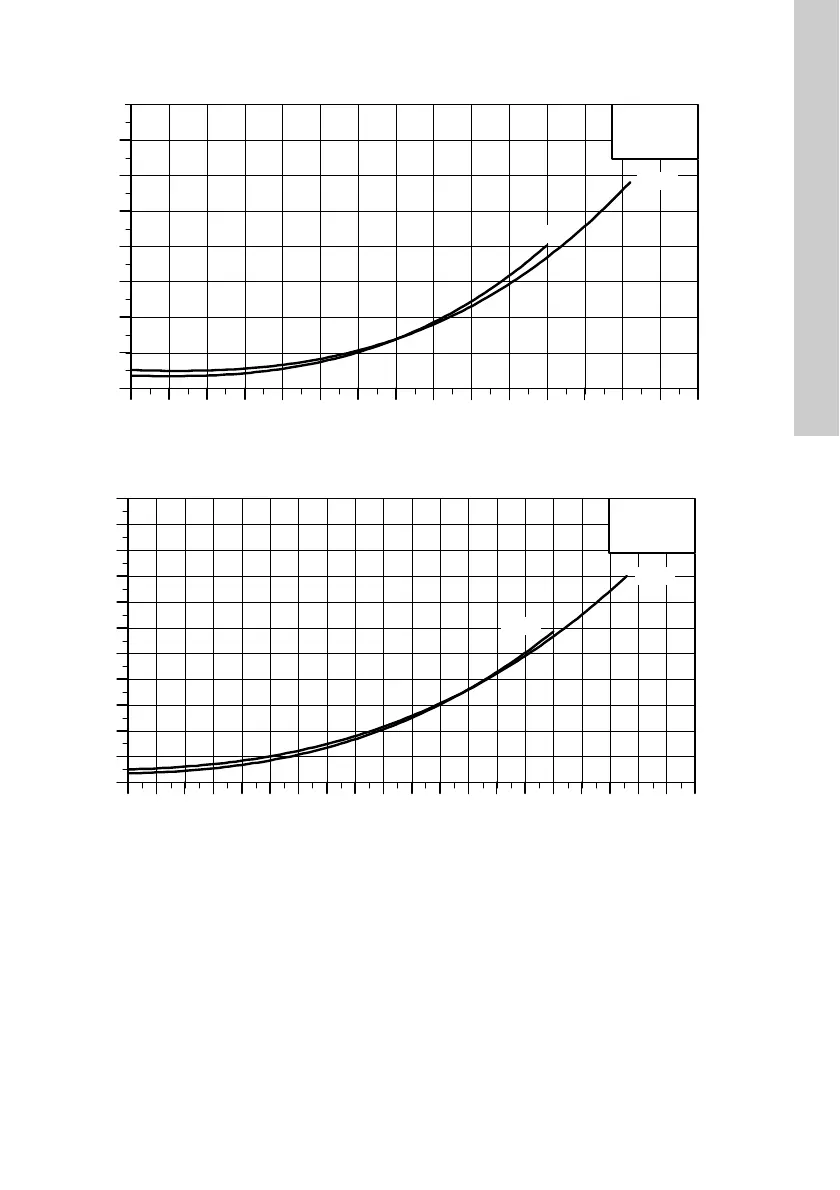

Fig. 7 NPSH curves for CM 15
Fig. 8 NPSH curves for CM 25
TM04 0462 0309
0 2 4 6 8 10 12 14 16 18 20 22 24 26 Q [m³/h]
0
2
4
6
8
10
12
14
[m]
NPSH
CM 15
60 Hz
50 Hz
TM04 0463 0309
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 Q [m³/h]
0
2
4
6
8
10
12
14
16
18
20
[m]
NPSH
CM 25
60 Hz
50 Hz

Grundfos CM 5 Specifications

General

Maximum operating pressure	10 bar
Housing Material	Stainless Steel
Approvals	CE
Frequency	50 Hz
Connection Size	1 inch
Outlet connection	G1"
