2.4.4 Lifting the product in horizontal position

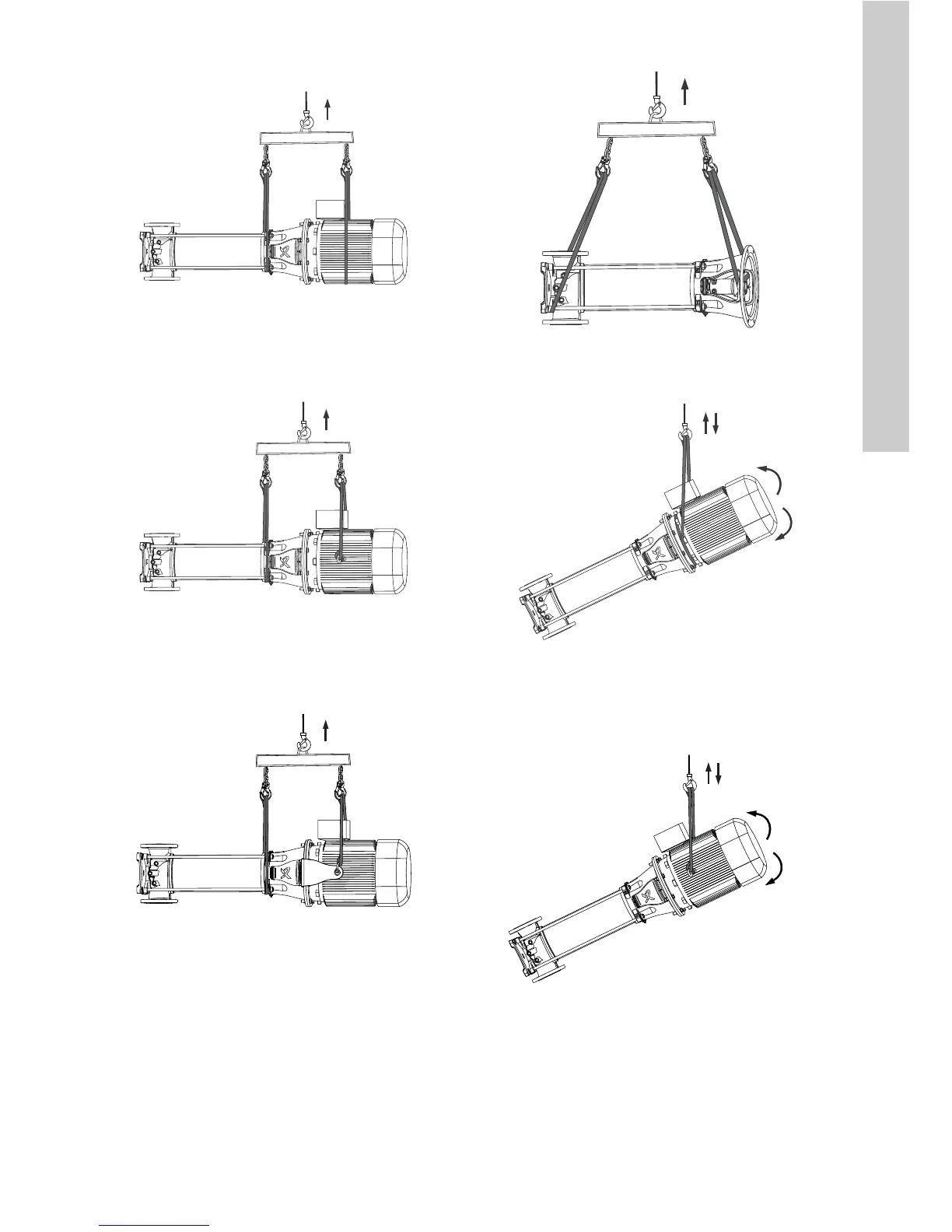

Fig. 4 Horizontal lift of pumps with 5.5 kW
Grundfos MG and MGE* motors
* See also section 2.4.3 Lifting of pumps fitted with
MGE motors
Fig. 5 Horizontal lift of pumps with 7.5 - 22 kW
Grundfos MG and MGE* motors
* See also section 2.4.3 Lifting of pumps fitted with
MGE motors
Fig. 6 Horizontal lift of pumps with 5.5 - 200
KW motors of other makes than
Grundfos MG and MGE
Fig. 7 Horizontal lift of pumps without motor
2.4.5 Raising or laying down the product
Fig. 8 Raising or laying down pumps with 5.5
kW Grundfos MG and MGE* motors
* See also section 2.4.3 Lifting of pumps fitted with
MGE motors
Fig. 9 Raising or laying down pumps with 7.5 -
22 kW Grundfos MG and MGE* motors
* See also section 2.4.3 Lifting of pumps fitted with
MGE motors
