50
Accessories

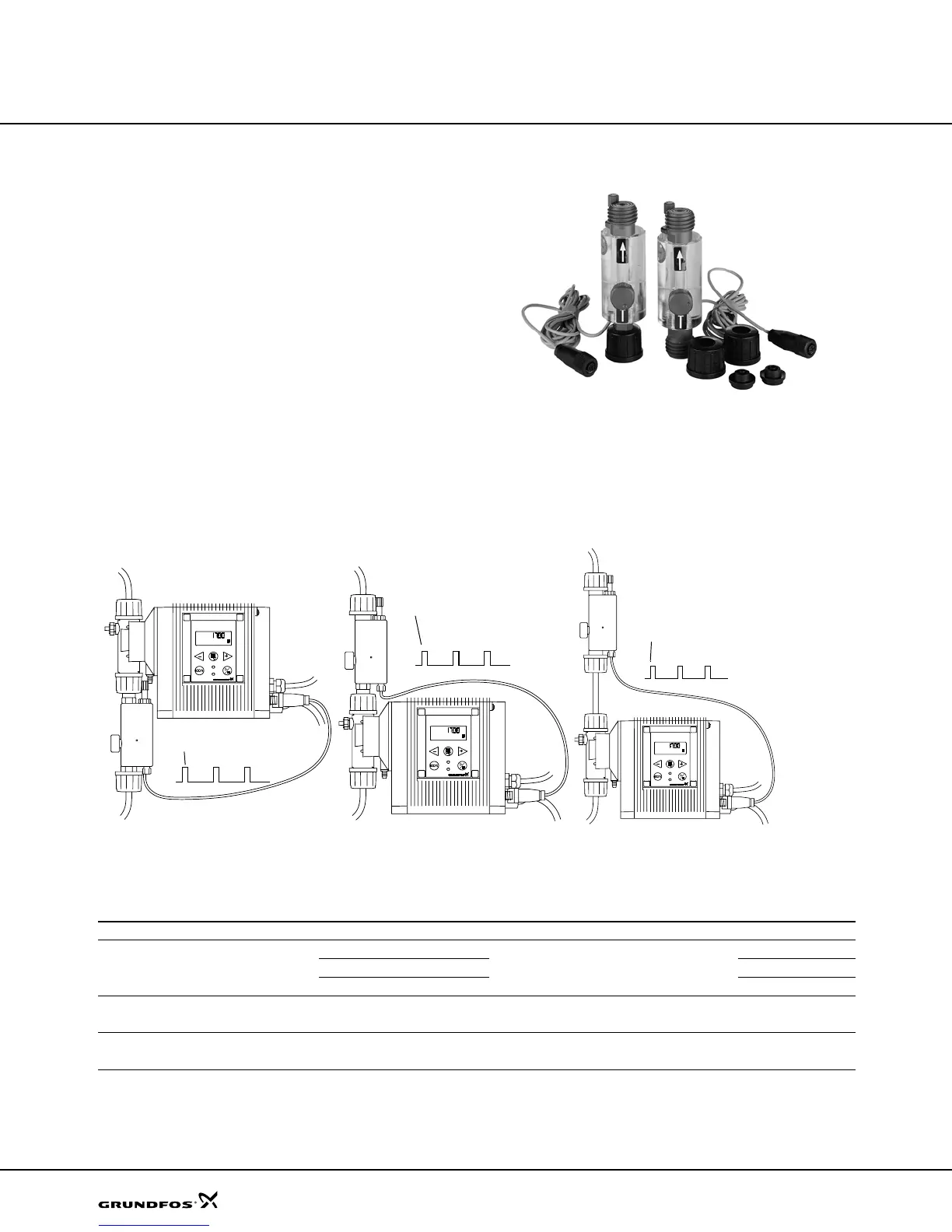

Dosing monitor
Dosing monitor
The dosing monitor is used in connection with the
dosing monitoring function of DME 2 to 48, and DMS-A,
AR pumps.
The monitor sends a pulse signal (closed contact) for
every measured dosing stroke.
As the DME pump will often operate without pulsation
on the discharge side, the monitor must always be
installed on the suction side.
The monitor for a DMS pump can be installed on both
suction and discharge side.
Maximum pressure: 145 psi (10 bar)
Maximum volume: 13 GPH (50 l/h)
Maximum liquid temperature: 95 F (35 °C)
Maximum liquid viscosity: 20 cps
Maximum load of pulse
transmitter (reed contact): 48 VAC/VDC, 0.5 A
Materials in contact with liquid: PMMA/PVC/FKM.
Selection table
TM02 2472 4401
TM02 2029 3201 - TM02 2030 3201 - TM02 2031 3201
Dosing stroke
measured
Dosing stroke
measured
Dosing stroke
measured
Monitor mounted on suction
side (DME and DMS)
Monitor mounted on discharge
side (DMS only)
Monitor mounted in dosing tube.
In discharge tube: DMS
In suction tube: DME and DMS
Mounting Pump head Gasket Material Connection kit Product number
Inline PP, PVDF
FKM PVDF
Includes 1/4", 3/8" and 1/2" tubing connections
96470726
FKM PP 96470725
EPDM PVDF 96493010
Pump discharge* PP, PVDF
FKM Not needed 96470723
EPDM Pump connection is used on inlet of monitor 96492899
Pump inlet PP, PVDF
FKM Not needed 96470724
EPDM Pump connection is used on inlet of monitor 96493011
*Not suitable for DME pumps
Not stuitable for SS pump heads
Dm123.book Page 50 Tuesday, February 8, 2005 8:24 AM
