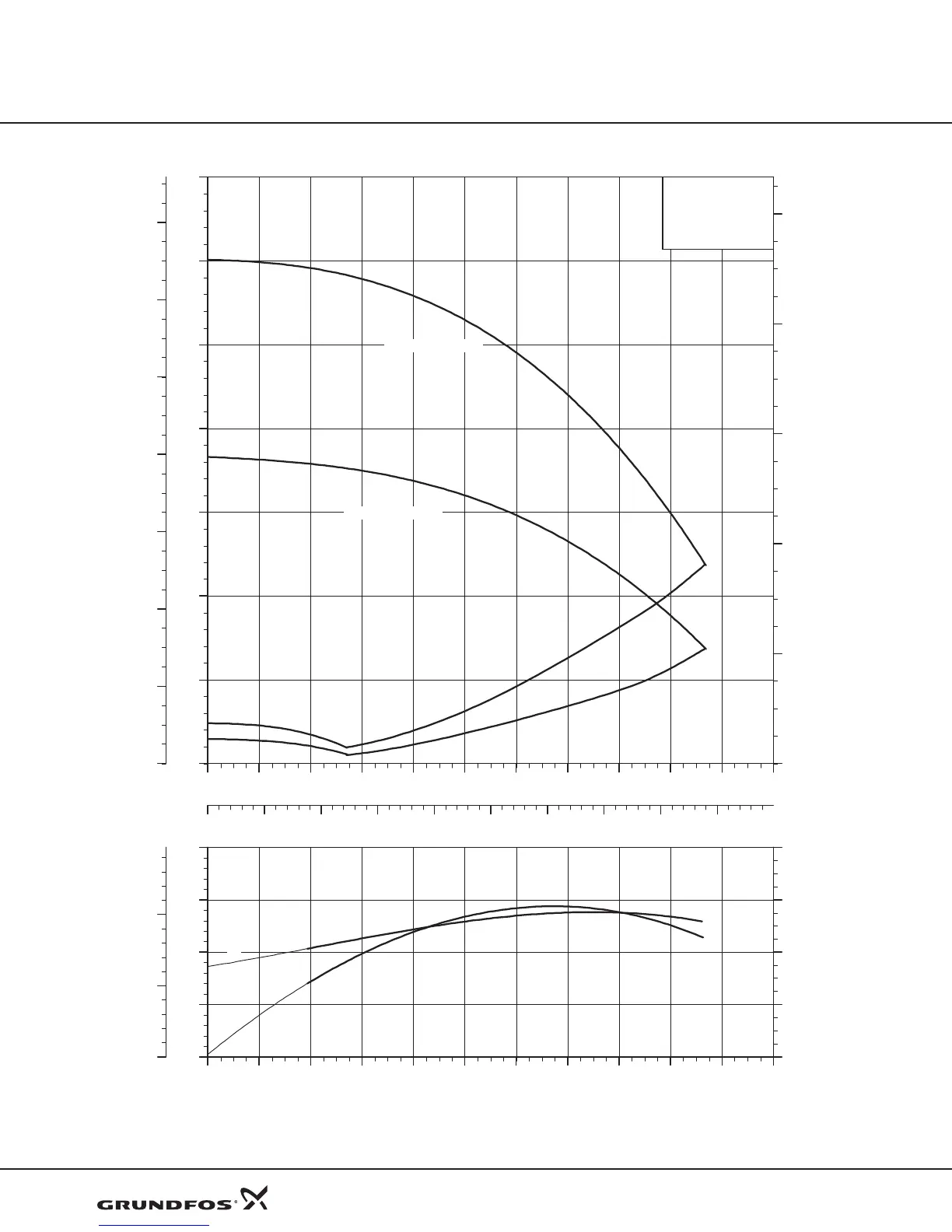

Product Guide EZ Boost
TM
System
0 2 4 6 8 10 12 14 16 18 Q [US GPM]
0
50
100
150
200
250
300
[ft]
H
0
20
40
60
80
100
120
140
P
[psi]
0
20
40
60
80
100
H
[m]
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Q [m³/h]
15 BMQE
60 Hz
07B-180 (5-stage)
05A-110 (3-stage)
0 2 4 6 8 10 12 14 16 18 Q [US GPM]
0.0
0.1
0.2
0.3
[hp]
P2
0
20
40
60
[%]
Eta
0.0
0.1
0.2
P2
[kW]
P2
Eta
TK01 3098 3304
16
Product Guide EZ Boost
TM
System
0 5 10 15 20 25 30 Q [US GPM]
0
50
100
150
200
250
300
[ft]
H
0
20
40
60
80
100
120
140
P
[psi]
0
20
40
60
80
100
H
[m]
0 1 2 3 4 5 6 7 Q [m³/h]
05A-80 (2-stage)
05B-120 (3stage)
10C-190 (5-stage)
0 5 10 15 20 25 30 Q [US GPM]
0.0
0.2
0.4
0.6
[hp]
P2
0
20
40
60
[%]
Eta
0
0
0
P2
[kW]
P2
Eta
TK01 3099 3304
17
