Technical data
Drainage pumps
KP
Installation

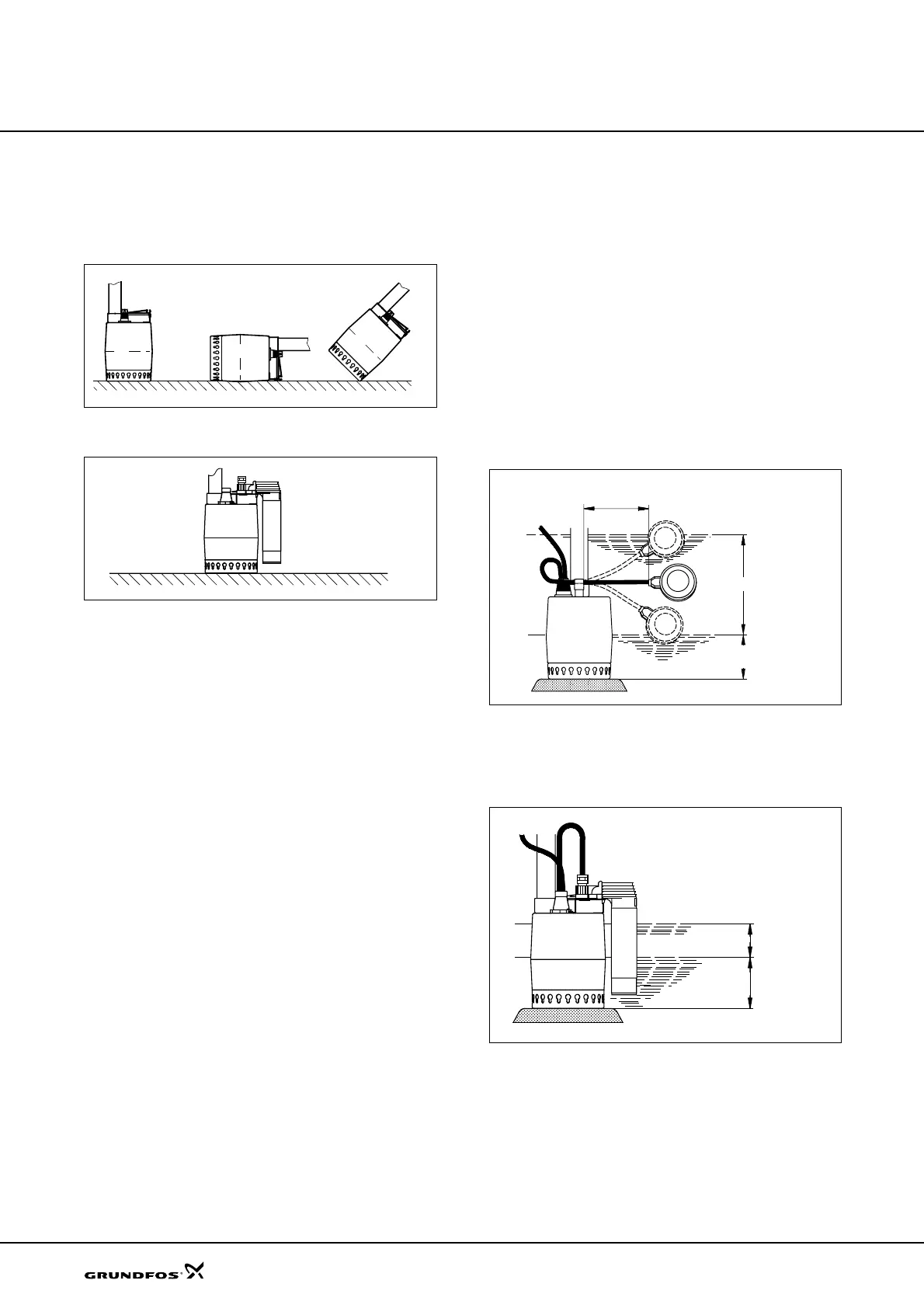

Pumps without level switch or with float switch can be
used in vertical position with the discharge port upper-
most or in horizontal or tilted position with the
discharge port as the highest point of the pump.
Pumps with vertical level switch must be used in vertical
position.
The KP pump is well suited for permanent installation.
Level switches
A level switch, which gives impulses to start/stop
between two levels of liquid, is connected to pumps
intended for automatic operation. This type of installa-
tion requires a non-return valve in the discharge pipe or
in the pump. The pumps are available with two different
types of level switches.
Min. liquid level: – manual operation: 14 mm.
– automatic operation: See below.
Pumps with float switch:
A clamp on the handle of the pump holds the cable of the
level switch. The difference in level between start and
stop can be adjusted by changing the free cable length
between the handle of the pump and the level switch.
Dimensions for KP 350 are marked with "#".
Pumps with vertical level switch:
For pumps with vertical level switch, the difference in
level between start and stop is not adjustable.
Dimensions for KP 350 are marked with "#".
TM00 1548 0493TM01 1492 4697
TM02 1552 2599TM01 1108 3297
••••••••••••••
••••••••••••
•••••••••••
••••••••••••
•••••••••••
••••••••••
•••••••••••
••••••••••
••••••••••
••••••••••
•••••••••
••••••••
••••••••
••••••••
Max.
150mm
Start
Stop
100mm
225mm
Float switch
Max. 150 mm
Start
225 mm
Stop
100 mm
110 mm
#
Start
Stop
80 mm
100 mm
Vertical level switch
Start
Stop
80 mm
100 mm
110 mm#
