5.4 Insulating shells (if equipped)
For pumps with provided insulation shell, the
following procedures are required to insure safe
and proper installation.
1. Pump and mating piping flange bolts need to
be installed towards the pump as illustrated
in fig. 4.
2. Apply water proof, heat resistant, silicon
based sealant to insulation shell. Care
should be taken to not block weep slots for
pump motor when applying sealant. Failure
to follow proper sealant location procedures
could damage motor and insulation shell.
See fig. 5 for proper locations when applying
sealant.
3. Mate the two insulation shells over the pump
volute as illustrated in fig. 6. If the shells do
not mate; flange bolts are installed in the
wrong direction, review step one and or
switch mating shell location.
4. Proper amount of time should be allowed for
sealant to set-up before any additional
installation work is performed. See sealant
manufactures recommended time for sealant
set-up. See fig. 7 for final configuration.

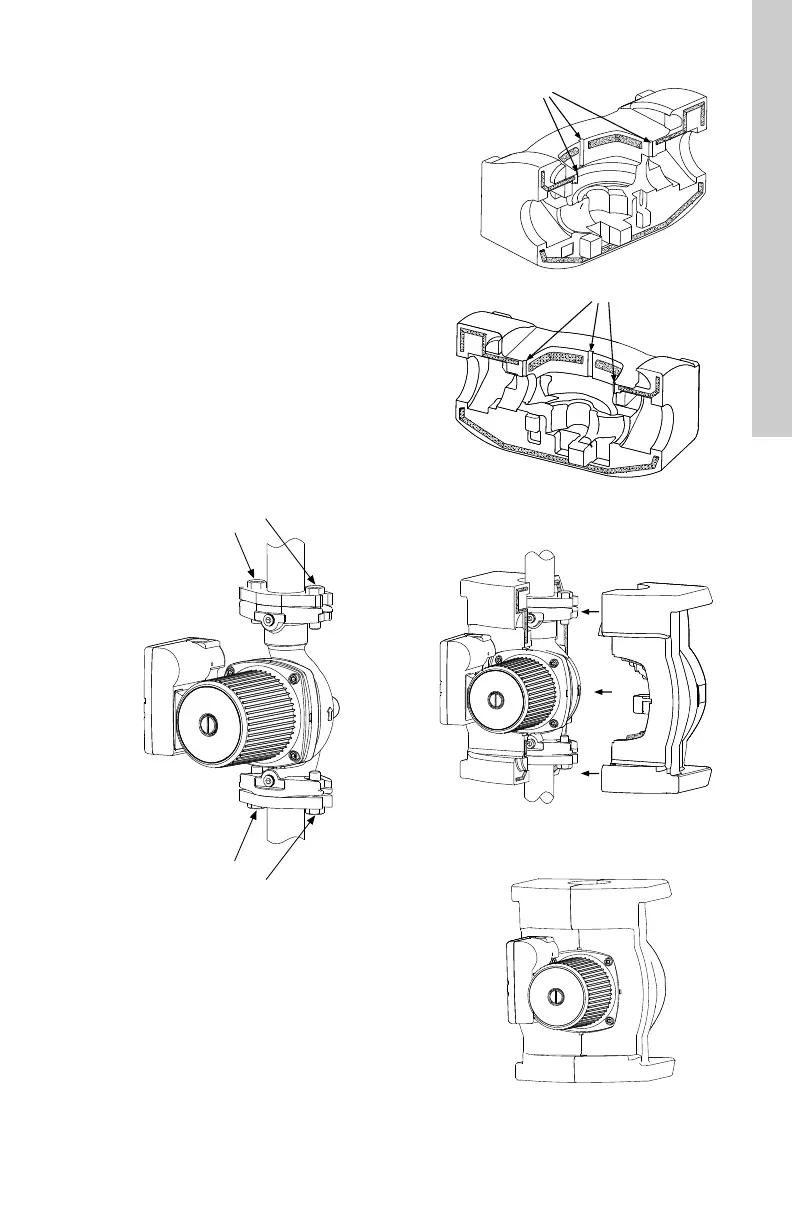

Fig. 4 Connect pump to piping, installing
flange bolts toward the pump
Fig. 5 Applying silicon sealant (dotted
areas indicate sealant)
Fig. 6 Insulating shell installation (dotted
areas indicate sealant)
Fig. 7 Ready for insulation wrap
TM05 1888 2515
Insert flange bolts
toward pump
Insert flange bolts
toward pump
TM05 1889 3811TM05 1890 2515TM05 1891 2515
