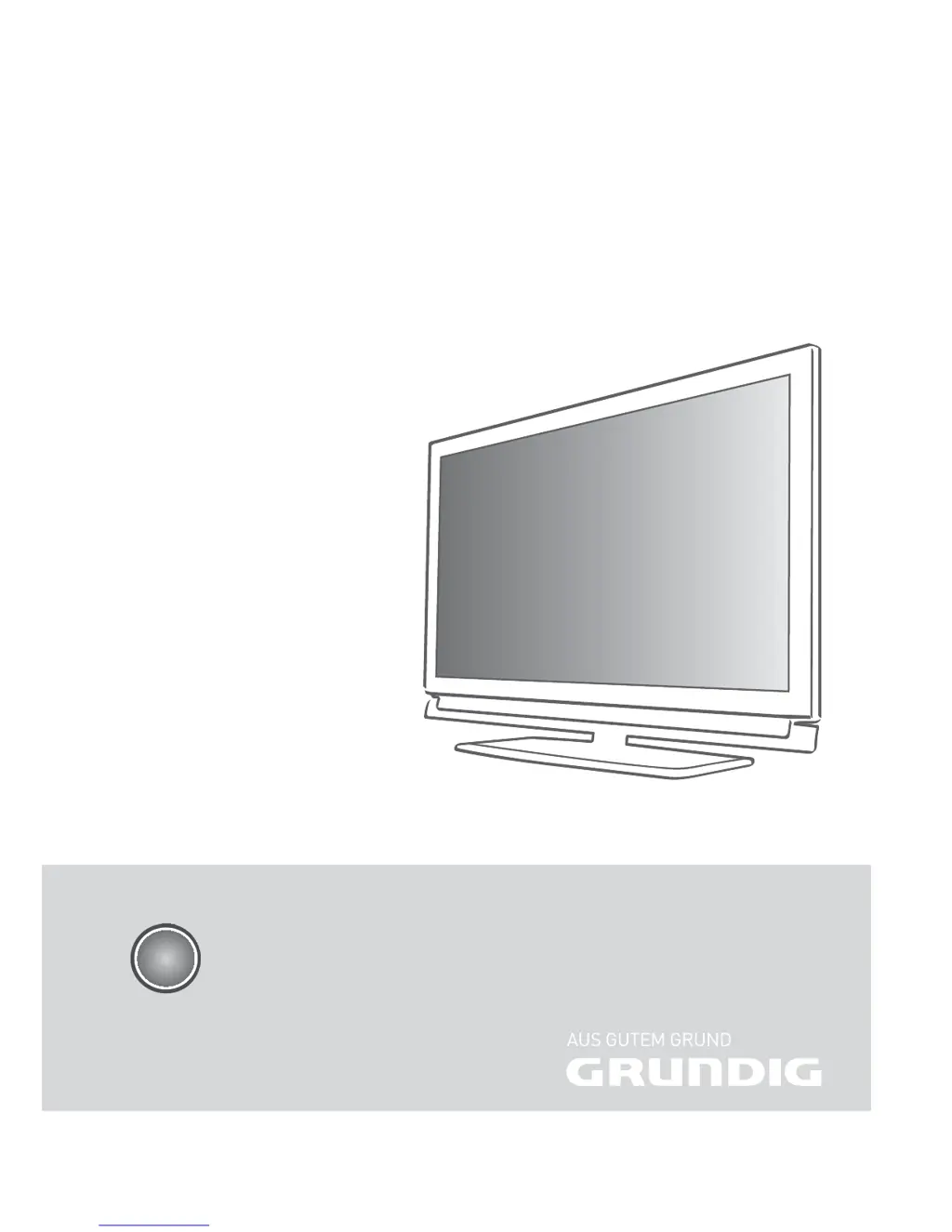

LCD TV
40 VLE 7230 BH
EN

Table of Contents

Questions and Answers

  • M
    Matthew CooleyJul 31, 2025
    How to fix a Grundig 40 VLE 7230 BH LCD TV with a snowy screen but no channels?
    • M
      Mary GuerraJul 31, 2025
      If your Grundig LCD TV screen shows static (snow) but no channels, here's what to check: * Ensure the antenna cable is securely connected. * Perform a channel scan to tune in available stations. * Adjust the brightness, contrast, and color settings. * Try tuning to a different channel to rule out station issues. * Relocate the TV to avoid interference from other electronic devices.
  • A
    anthonybrewerAug 5, 2025
    What to do if my Grundig 40 VLE 7230 BH LCD TV remote control is not working?
    • A
      Angel DavisAug 5, 2025
      If the remote control isn't working with your Grundig LCD TV: * Make sure there is a clear line of sight between the remote and the TV. Point the remote directly at the television. * Check and replace the batteries in the remote if needed. * As a last resort, switch off the television at the mains switch for two minutes, then turn it back on.
  • J
    Jose ScottAug 10, 2025
    Why is my Grundig 40 VLE 7230 BH showing ghosting or reflections?
    • M
      morrisonjasonAug 10, 2025
      If you're seeing ghosting or reflections on your Grundig LCD TV, consider these solutions: 1. Try automatic or manual tuning/fine tuning the channel. 2. Have your antenna cable or system checked. 3. Increase the color intensity. 4. Select the correct color standard in your TV settings, if available. 5. Try a different channel to rule out issues with the current broadcast.
  • M
    Mark HarrisonAug 14, 2025
    What to do if Grundig 40 VLE 7230 BH LCD TV cannot find DMS device?
    • S
      Scott PeckAug 14, 2025
      If your Grundig LCD TV can't find the DMS device, verify these: * Ensure the DMS device is powered on and running. * Check the network settings on your TV and the DMS device to ensure they are properly configured.
  • T
    Teresa OwensAug 20, 2025
    Why is Teletext impaired or absent on my Grundig LCD TV?
    • A
      Austin KimAug 20, 2025
      If Teletext is not working properly on your Grundig LCD TV: * Try tuning to a different channel. * If the issue persists, try fine-tuning the channel. * Check your antenna to ensure the station signal isn't too weak.
  • S
    Shawn CarterAug 26, 2025
    How to brighten a dark picture on Grundig LCD TV in PC mode?
    • S
      sandovalashleyAug 26, 2025
      If the picture is too dark when using PC mode on your Grundig LCD TV, the picture resolution and refresh rate settings on your PC might be incorrect. Change the settings on the PC, for example, to a 1280 x 768 resolution with a 60 Hz refresh rate.

Summary

Setup and Safety

Connection and Preparation

Connecting the antenna and power cord

Instructions for connecting the antenna and power supply to the television.

Overview

Connections on the television set

The remote control - Main functions

Description of the primary buttons and their functions on the remote control.

The remote control - All functions

Settings

Initial set-up and tuning television channels

Guide to the initial setup process, including automatic channel search.

Selecting language, country and operating mode

How to set the TV's language, country, and operating mode during initial setup.

Tuning terrestrial television channels (DVB-T)

Step-by-step guide for scanning and tuning digital terrestrial TV channels.

Tuning television channels from the cable provider (DVB-C)

Guide for scanning and tuning channels from a cable provider.

Changing the program table for the digital channels

How to manage, reorder, and edit digital channel lists and favorites.

Change the order of the channels in the program table

Picture settings

How to adjust picture modes, brightness, contrast, sharpness, and color settings.

Sound settings

Options for adjusting volume, balance, sound type, and SRS sound presets.

Television - Operation

Basic functions

Fundamental operations like switching on/off, selecting channels, and adjusting volume.

Selecting channels

Methods for selecting TV channels directly, step-by-step, or via the channel list.

Selecting channels from lists

Freeze-frame

Picture settings

Accessing and adjusting various picture parameters.

Audio settings

Options for adjusting sound presets and audio language.

Electronic TV guide

Using the EPG to view program schedules and set reminders.

Changing the picture format

Options for adjusting picture aspect ratios like 16:9, 4:3, and Letterbox.

Smart Inter@ctive TV and Home Network

What is Smart Inter@ctive TV

Network connection

How to connect the TV to a wired or wireless local network.

Wired network

Instructions for establishing a wired network connection.

Wired network settings

Configuration options for wired network connections (automatic/manual).

Automatic wired network connection

Guide for setting up a wired network connection automatically.

Wireless network connection

Information about the built-in WiFi adapter and connecting to wireless networks.

Wireless network settings

Configuration options for wireless network connections (automatic/manual).

Automatic connection

Guide for setting up a wireless network connection automatically.

Manual connection

Steps for manually configuring wireless network settings.

Smart Inter@ctive TV internet applications

Overview of available internet applications and their usage.

Selecting internet applications

Playback the video, music and image files with home network connection

How to play media files from a home network using DLNA.

Select the Digital Media Server

USB Recording

Information on recording and playing television programmes

Details on recording digital TV channels using USB media.

Possible limitations when using an external data medium

Restrictions and broadcaster-dependent limitations for USB recording.

Settings for USB recording

How to access and configure USB recording settings.

Pausing time shift programmes

How to pause live TV and record the current program segment.

Recording programmes

General information about recording TV programs.

One-touch programme recording

Simple method to start recording a current program.

Recording a programme from the channel list

How to initiate recording directly from the channel list.

Presetting programmes to be recorded

Using the TV guide to schedule future recordings.

... by manual data entry

Manually setting up timer recordings via the electronic TV guide.

Editing recording data in the timer menu

Deleting recording data in the timer menu

Playback

Accessing and playing recorded programs from the archive.

Selecting a programme from the archive

Playback during a recording

Deleting programmes in the recording list

USB Operation

File formats

Supported video, audio, and image file formats for USB playback.

Connecting external data media

Steps for connecting USB storage devices to the TV.

The file browser

Settings in the USB setup menu

Basic playback functions

Additional playback functions

Teletext Operation

TOP text or FLOF text mode

Normal text mode

Convenience Functions

Opening the SETTINGS menu

Language settings

Options for changing menu, audio, and subtitle languages.

Changing the menu language

Changing the audio language

Changing the subtitle language and subtitle mode

Setting the date and time

Options for automatic or manual setting of the TV's date and time.

Automatic setting

Manual setting

Timer settings

Setting the TV to switch off automatically using the sleep timer.

Entering the switch-off time (sleep timer)

Switch-on timer

Setting the TV to automatically turn on at a scheduled time.

Parental control settings

Managing access to programs based on age ratings.

Authorising programmes

Setting access levels to control which programs can be viewed.

Locking menus

Locking keys (Parental lock)

Changing the PIN code

Setting a personal PIN code for parental controls and menu locks.

Locking television channels

Preventing access to specific television channels using a PIN.

Updating software (OAD)

Updating software (Online)

Restoring the television to the default settings

Resetting the TV to its factory default configuration.

Operation Using External Devices

DIGI LINK

The DIGI LINK functions on your television

Switching on the television automatically from standby

Automatic selection of the HDMI preset on the television

Switching off the external device automatically

Searching for and activating external devices

Device operation

Switching the device to standby

Connection options

Connecting external devices... with digital audio;video signals

How to connect devices using HDMI for digital AV signals.

Connecting external devices... with analogue video signal (progressive)

Connecting external devices... using the SCART socket (CVBS;RGB signal)

Activating a decoder

Connecting external devices... with S-Video signal

Connecting external devices... with an analogue TV signal

Using a DVD player, DVD recorder, video recorder or set-top box

Hi-fi System

Connecting digital multi-channel amplifier;AV receiver

Apply the device with HDMI ARC function and activate HDMI ARC

Playing the audio signal via the HiFi system

Operation as a PC Monitor

Connecting a PC

How to connect a computer to the TV using VGA and audio cables.

Selecting presets for the PC

Settings for PC mode

Adjusting picture settings for PC monitor usage.

Special Settings

Searching for television channels from the cable provider automatically

Guide to automatically scanning for cable TV channels.

Searching for television channels from the cable provider manually

Manually tuning cable TV channels by frequency.

Searching for digital terrestrial TV channels automatically

Guide to automatically scanning for digital terrestrial TV channels.

Searching for digital terrestrial TV channels manually

Manually tuning digital terrestrial channels by channel number.

Tuning analogue television channels

Instructions for tuning analogue TV channels.

Switching the television to analogue reception

Setting all analogue television channels

Tuning the television channels by entering the channel numbers

Changing stored analogue channels

Deleting channels

Creating lists of favourites

Troubleshooting

Grundig 40 VLE 7230 BH Specifications

General IconGeneral
RS-232 ports0
HDMI ports quantity4
Common interface (CI)No
USB 2.0 ports quantity2
Digital audio optical out1
Common interface Plus (CI+)Yes
Display diagonal40 \
Display technologyLCD
Display diagonal (metric)102 cm
Motion interpolation frequency400 Hz
Supported graphics resolutions1920 x 1080 (HD 1080)
Motion interpolation technologyPPR (Picture Perfection Rate)
Headphone connectivity3.5 mm
Annual energy consumption92 kWh
Tuner typeDigital
Number of tuners1 tuner(s)
Digital signal format systemDVB-T, DVB-T2
Product colorBlack
Power consumption (standby)0.5 W
Power consumption (typical)63 W
RMS rated power40 W
Weight and Dimensions IconWeight and Dimensions
Depth (without stand)43 mm
Width (without stand)950 mm
Height (without stand)592 mm
Weight (without stand)18000 g
