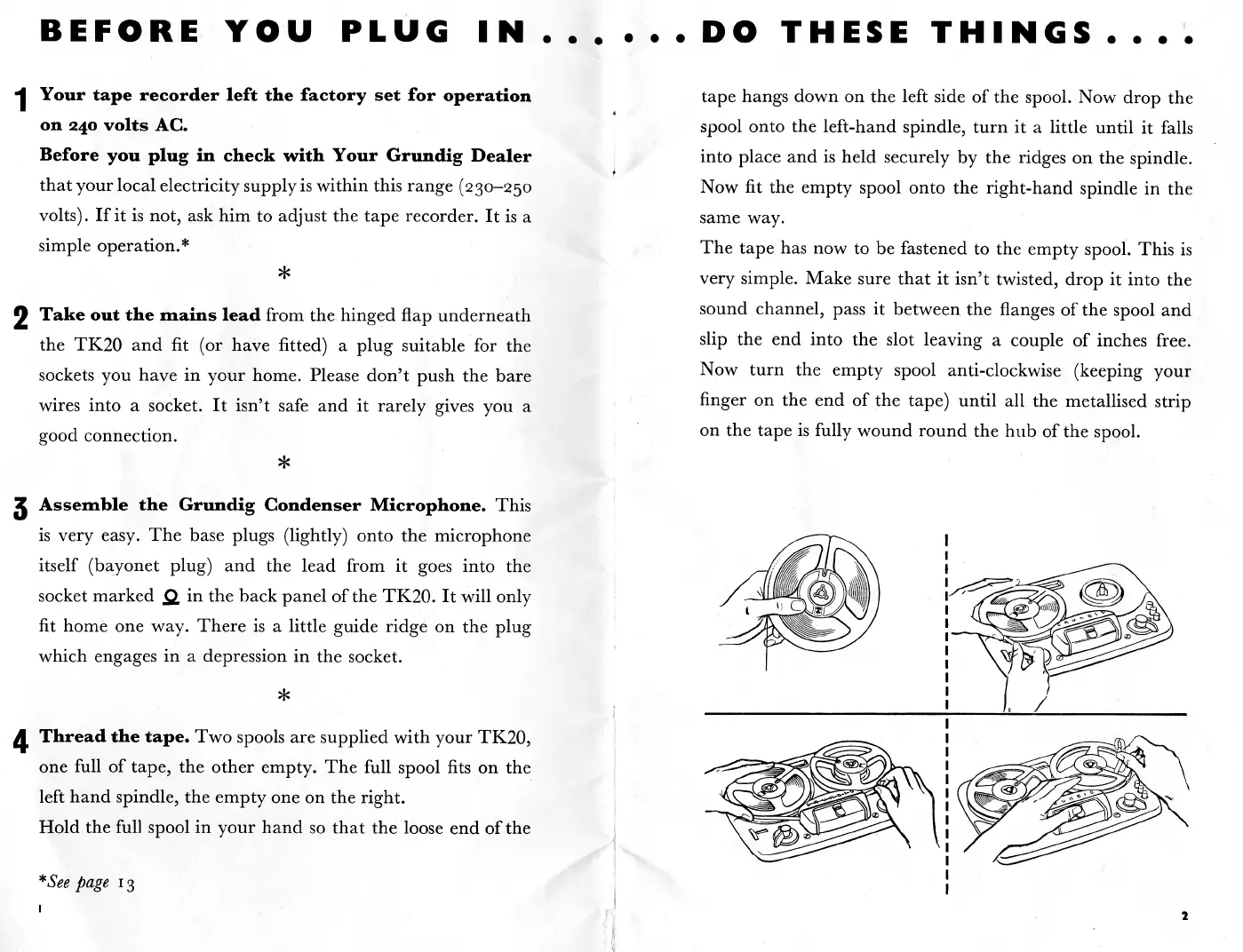

Grundig TK 20 - Initial Setup and Operation; Check Voltage and Attach Plug; Assemble Microphone; Thread the Tape Correctly

BEFORE YOU PLUG IN.....--DO THESE THINGS....
Your tape recorder left the factory set for operation
on 240 volts AC.
Before you plug in check with Your Grundig Dealer
that your local electricity supply is within this range (230-250
volts). Ifit is not, ask him to adjust the tape recorder. It isa
simple operation.*
>
Take out the mains lead from the hinged flap underneath
the TK20 and fit (or have fitted) a plug suitable for the
sockets you have in your home. Please don’t push the bare
wires into a socket. It isn’t safe and it rarely gives you a
good connection.
*k
Assemble the Grundig Condenser Microphone. This
is very easy. The base plugs (lightly) onto the microphone
itself (bayonet plug) and the lead from it goes into the
socket marked Q in the back panel of the TK20. It will only
fit home one way. There is a little guide ridge on the plug
which engages in a depression in the socket.
*k
Thread the tape. Two spools are supplied with your TK20,
one full of tape, the other empty. The full spool fits on the
left hand spindle, the empty one on the right.
Hold the full spool in your hand so that the loose end of the
*See page 13
tape hangs down on the left side of the spool. Now drop the
spool onto the left-hand spindle, turn it a little until it falls
into place and is held securely by the ridges on the spindle.
Now fit the empty spool onto the right-hand spindle in the
same way.
The tape has now to be fastened to the empty spool. This is
very simple. Make sure that it isn’t twisted, drop it into the
sound channel, pass it between the flanges of the spool and
slip the end into the slot leaving a couple of inches free.
Now turn the empty spool anti-clockwise (keeping your
finger on the end of the tape) until all the metallised strip
on the tape is fully wound round the hub of the spool.
