3. Installation
PNEG-900 Series 2000 Autoflow Fan/Heater and Control Installation Instructions 11
1. The Autoflow control box should be mounted at eye-level. Make sure to mount the Autoflow control
box so that the fan/heater unit(s) are in view.
2. Keep in mind that wire will be used to interconnect the Autoflow control box with the fan/heater unit(s),
fill system control box, actuator and all rotary switches.
3. Use the hole pattern in Figure 3C on Page 12 to drill holes for mounting the Autoflow control box.

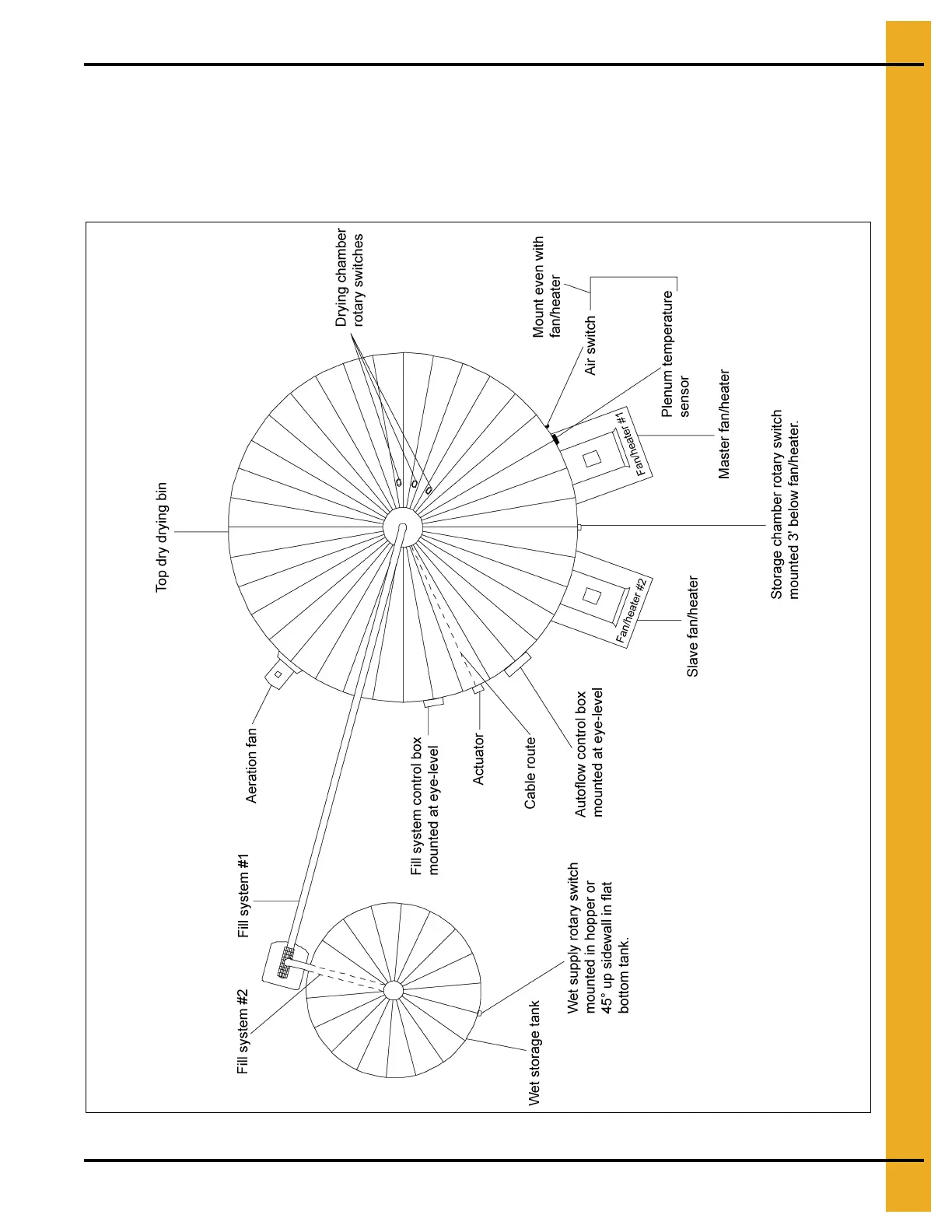

Figure 3B Component Placement
