GSW SPACESAVER Series - Page 2

2 • Electric Mini Tank Water Heater

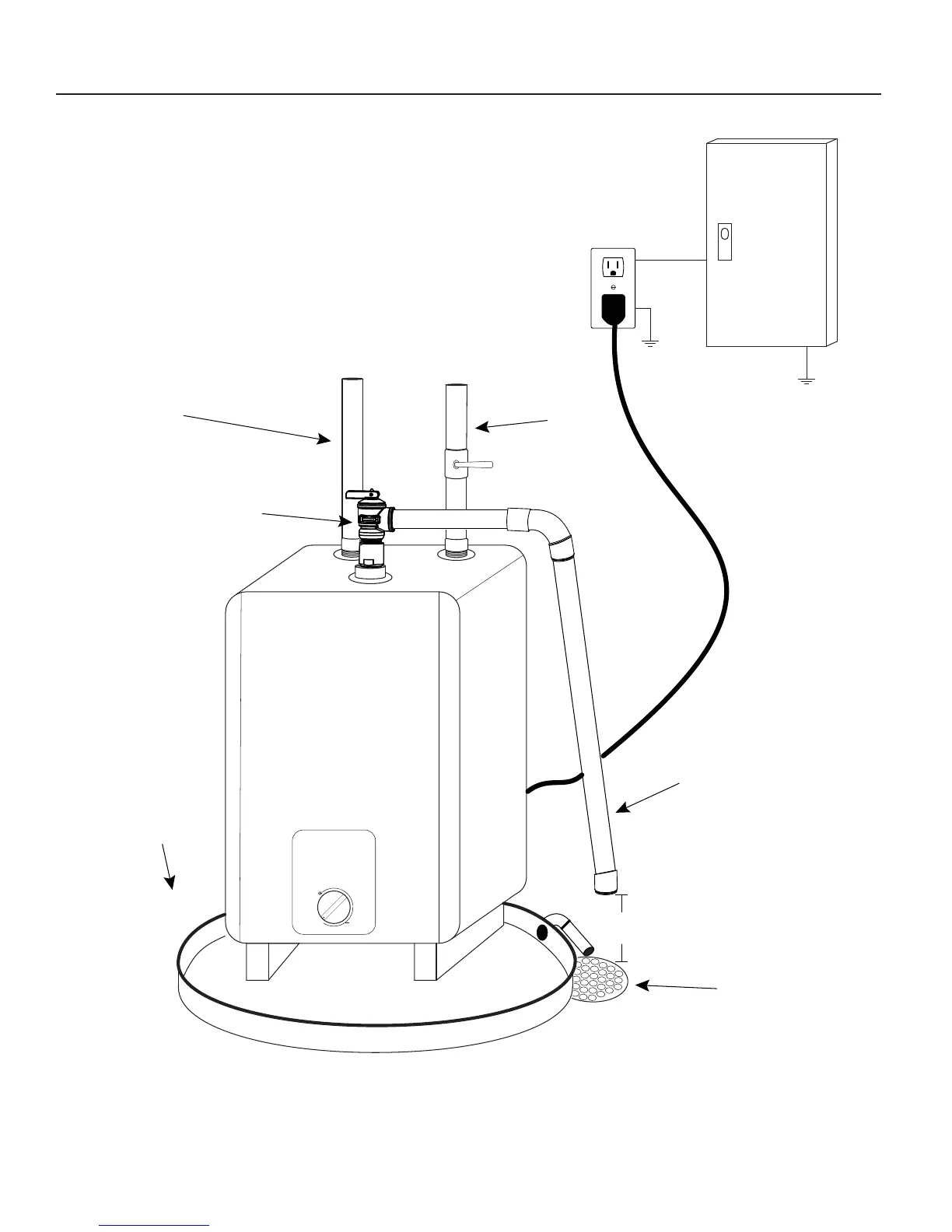

COMPLETED INSTALLATION TYPICAL
MAX
1
2
125°F
Hot Outlet Cold Inlet
Temperature & Pressure
Relief Valve
Discharge Pipe
(DO NOT CAP OR PLUG)
Floor Drain
6” (15.24cm) Max
Drain Pan
Electrical
Service
Ground
Electrical
Service
Ground
NOTE: 6 Gallon (22.7 liters) models are hard wired
and do not have a cord. See “Step 8” on page 13 for
instruc ons on making electrical connec ons.
