7

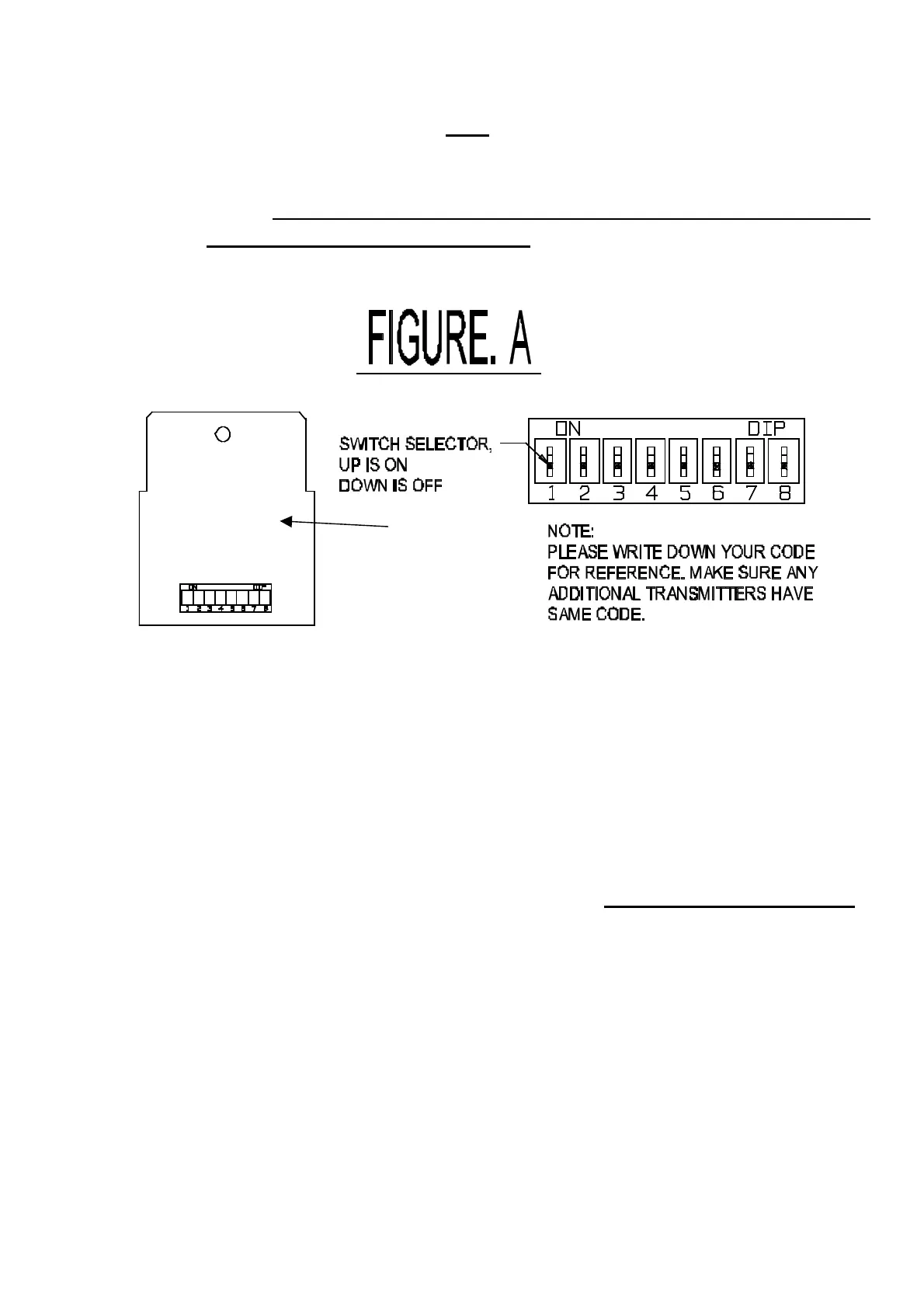

a. The position of each of the eight switches may be changed by using a small
stiff object such as the end of a paper clip, or the end of a mechanical
pencil with the lead retracted
b.
NOTE: It does not matter which code is chosen provided that all switches in
the system are set to the same code.
G. Record setting for any secondary controls.
H. Make sure membrane and top cover is re- assembled correctly with buttons
protruding fully.
I. Carefully snap top cover / membrane on to lower assembly. It should only take
light pressure to snap in place.
J. Test battery connection by pressing any of the buttons. When doing so, the red
LED indicator should turn on in the upper left hand corner. If the LED does not
illuminate, separate the covers and check the battery polarity. If correct, replace
with another battery. See Figure 1 in section titled “Installing Transmitter Battery”.
K. Re-install the 2 screws on the back cover and tighten them.
