Operating Instructions

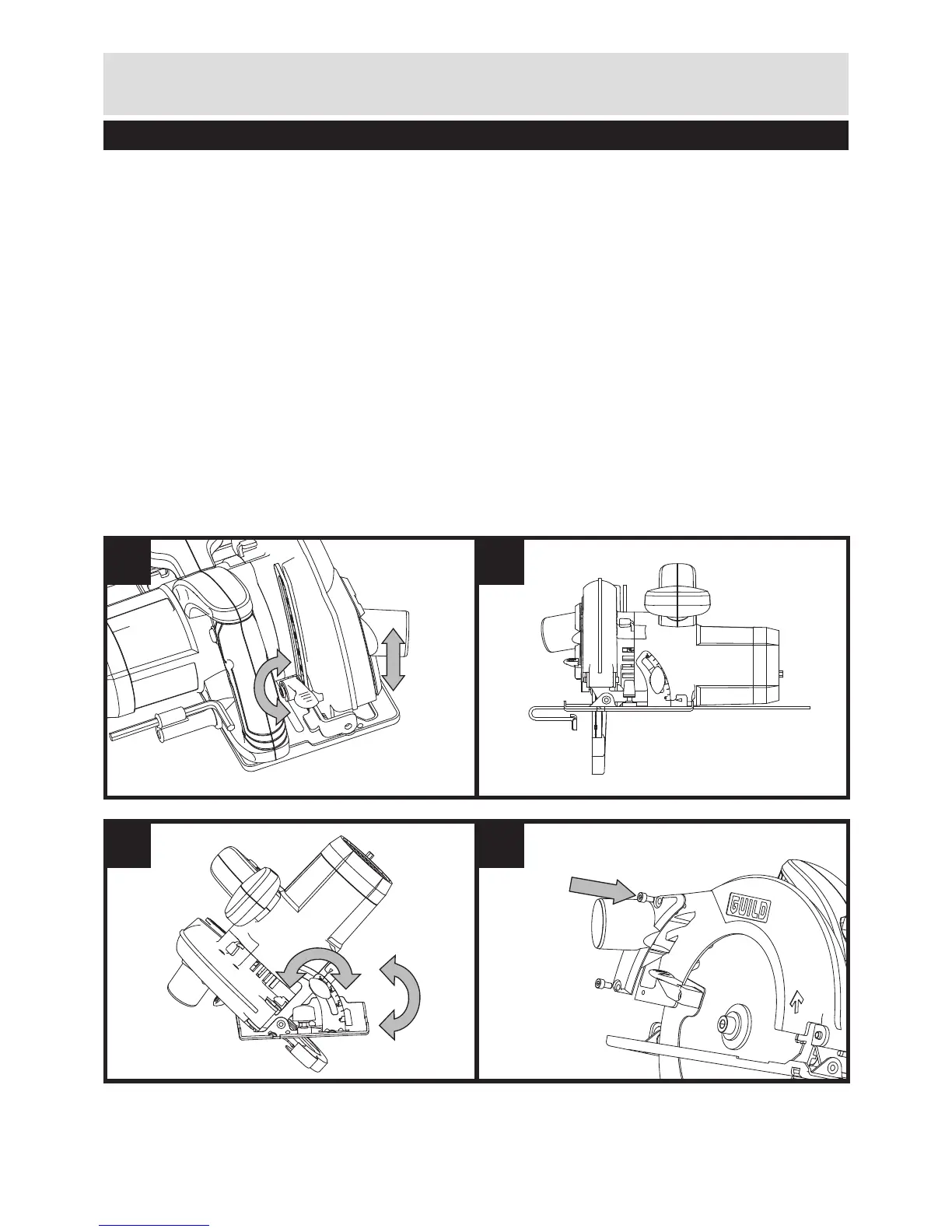

2� DEPTH OF CUT ADJUSTMENT (SEE FIG B)
Lift the depth of cut lock lever and raise the saw body away from the base plate. Set the
depth of cut with the scale and push the lever down to lock. Always add 3mm to your
depth of cut so that the blade can cut through the material.
3� BASE PLATE ANGLE ADJUSTMENT (SEE FIG C1, C2)
Turn the base plate bevel lock in anti-clockwise direction to loosen the angle scale. Tilt
the base plate away from the tool until the required cutting angle is adjusted on the
angle scale. Tighten the bevel lock by turning it in clockwise direction. Do not use the
depth of cut scale when making bevel cuts due to possible inaccuracy.
4� DUST EXTRACTION OUTLET (SEE FIG D)
Fasten the vacuum adapter (14) onto the dust extraction outlet until it latches.
Additionally fasten the vacuum adapter (14) to the fixed guard with the two screws.
Directly connect a suitable vacuum hose to the adapter.
Clean the vacuum adapter regularly to ensure optimum dust extraction� The vacuum
cleaner must be suitable for the material to be worked�
B C1
C2 D
