Operating Instructions
5� HAND GRIP POSITION (SEE FIG E)
Always hold your saw firmly with both hands when operating.
6� SAFETY ON/OFF SWITCH (SEE FIG F)
Your switch is locked off to prevent accidental starting. Depress the lock off button (17)
then the on/off switch and release the lock off button. Your switch is now on. To switch
off, just release the on/off switch.
The blade may continue to rotate after switching off. Wait until the tool comes to a
complete stop before setting down.
7� PARALLEL GUIDE ADJUSTMENT (SEE FIG G)
It is used for making cuts parallel to a workpiece edge at a chosen distance. Slide the
parallel guide arm through the fixture to achieve the required cutting distance then
tighten the lock knob to clamp. It can be used from both sides of the base plate. For
straight cuts, use the 0° guide mark to align with your parallel guide scale. For a 45°
bevel cut, use the 45° guide mark to align with your parallel guide scale. Securely clamp
the parallel guide.
NOTE: It is best to carry out a trial cut.

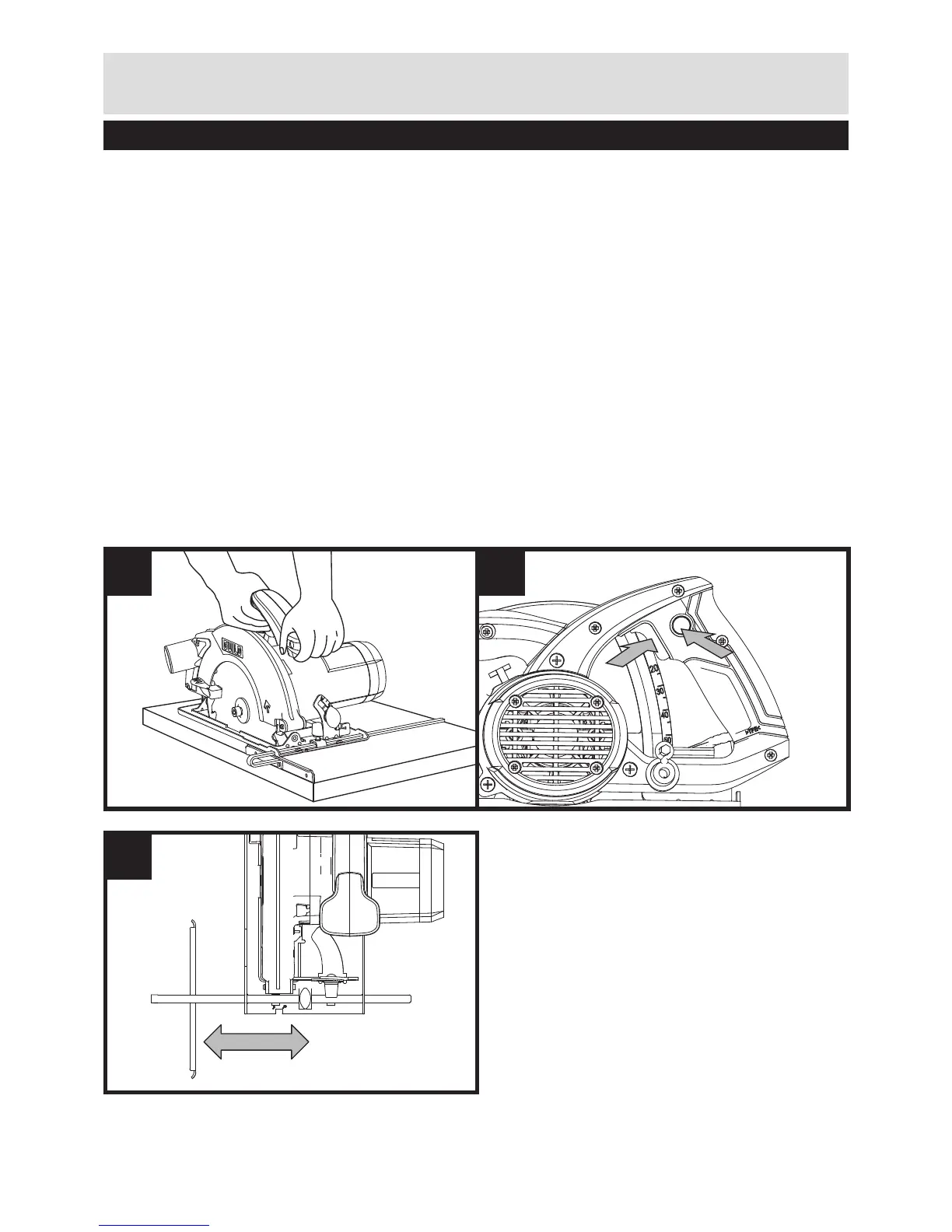

E F
