9

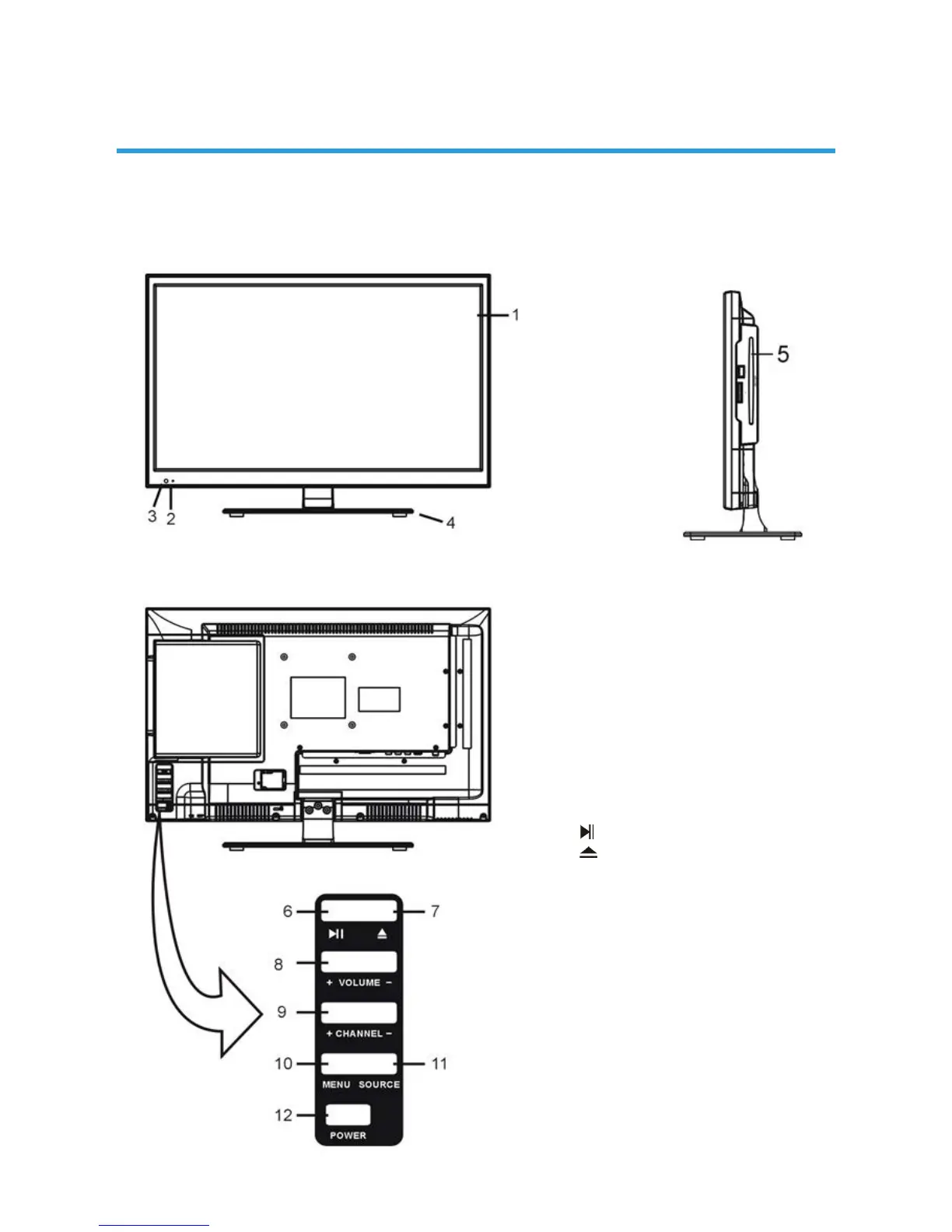

CONNECTIONS AND FUNCTIONS
MAIN UNIT
Front View
Side View
Back View
1. LED display screen
2. Power indicator- In standby mode the
indicator light is red; when switching
on the unit the indicator light is blue
colour.
3. Remote control sensor
4. Stand holder
5. Disc slot- To insert a disc according to
the silk screen on the side of this slot.
6. - To play or pause playing (DVD).
7. - To open or close the disc compart-
ment.
8. VOLUME +/- button- To increase/
decrease the volume level or move
left/right.
9. CHANNEL +/- button- To select next/
previous channel or move up/down.
10. MENU button- To enter menu setting
page.
11. SOURCE button- To select the input
source.
12. POWER button- To turn the TV ON/
OFF.
