H2flow FlowVis FV-C User Manual

www.h2fl ow.net • Tel: 888-635-0296 (Toll Free) OR (+1) 419-841-7774 (International)
7

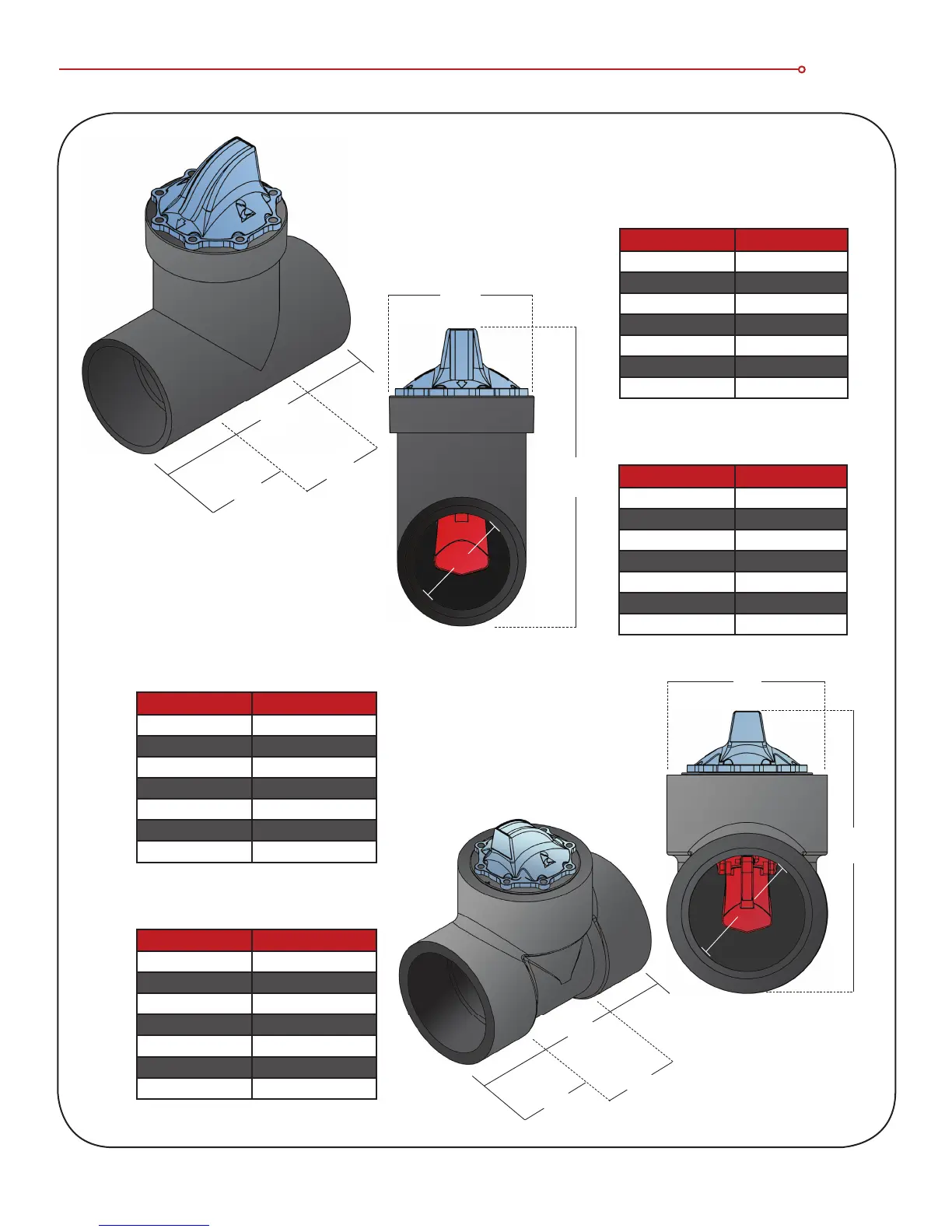

Dimensions
B
C
E
A
D
F
A
D
F
B
C
E
DIMENSION VALUE
A 8.0”
B 9.5”
C Schedule 80 - 3”
D 1.875”
E 4.5”
F 4.25”
WEIGHT 3 lbs
Models: FV-3 / FV-3-L
ENGLISH/STANDARD
DIMENSION VALUE
A 203.2 mm
B 241.3 mm
C Schedule 80 - DN80
D 47.63 mm
E 114.3 mm
F 107.96 mm
WEIGHT 1.36 kg
Models: FV-L-DN80
METRIC
DIMENSION VALUE
A 9.5”
B 9.75”
C Schedule 80 - 4”
D 2.25”
E 5.25”
F 5.0”
WEIGHT 5 lbs
Models: FV-4 / FV-4-L
ENGLISH/STANDARD
DIMENSION VALUE
A 241.3 mm
B 247.65 mm
C Schedule 80 - DN100
D 57.15 mm
E 133.26 mm
F 127.0 mm
WEIGHT 2.27 kg
Models: FV-L-DN100
METRIC
