H2flow FlowVis FV-C User Manual

www.h2fl ow.net • Tel: 888-635-0296 (Toll Free) OR (+1) 419-841-7774 (International)
6

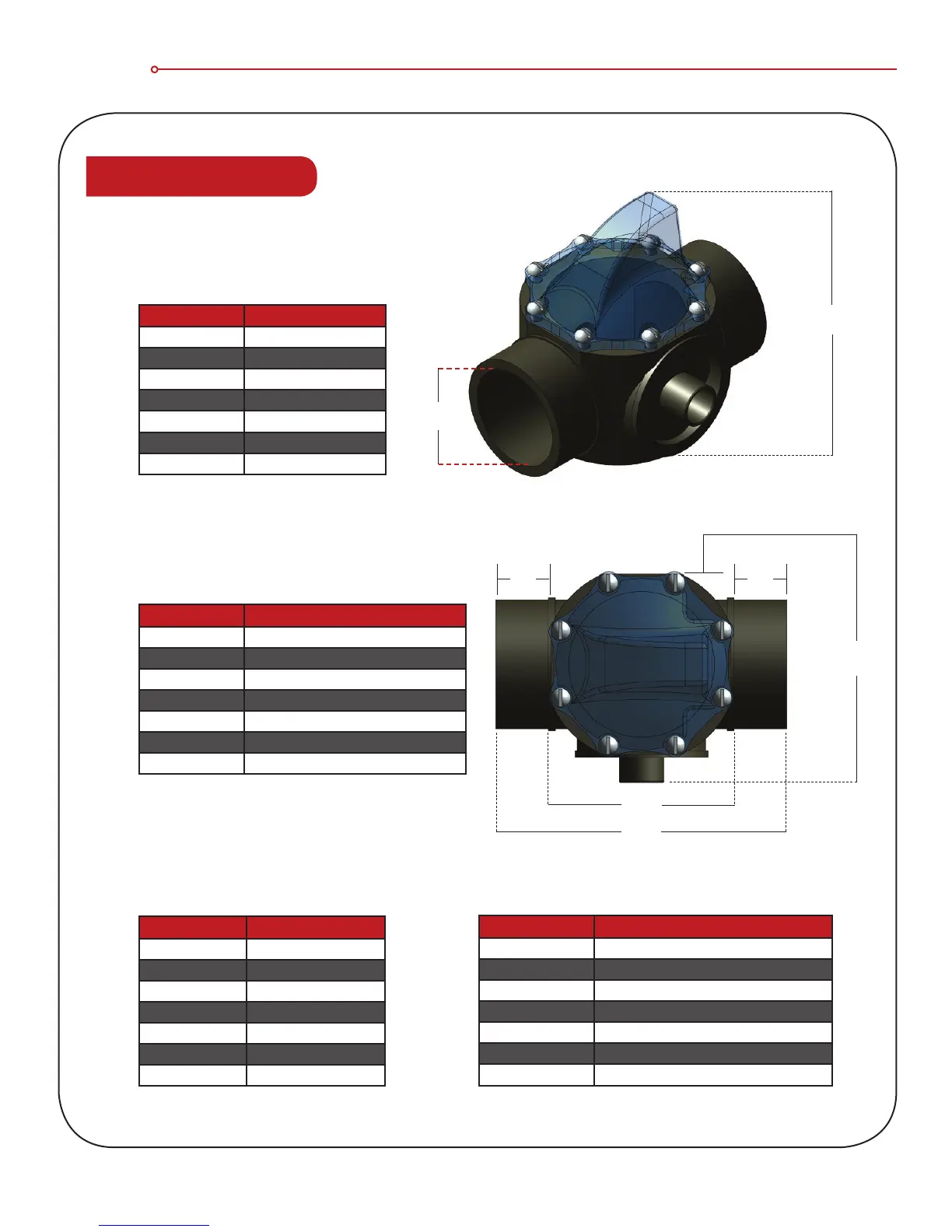

Dimensions
DIMENSIONS
B
C
A
F
D
D
E
DIMENSION VALUE
A 6.5”
B 5.875”
C Schedule 40 - 1.5”
D 1.375”
E 4.63”
F 3.75”
WEIGHT 1.5 lbs
Models: FV-C-15 / FV-C-15-L
DIMENSION VALUE
A 6.5”
B 5.875”
C Schedule 40 - 2” (Slip) & 2.5” (with coupling)
D 1.375”
E 4.63”
F 3.75”
WEIGHT 1.5 lbs
Models: FV-C / FV-C-L / FV-C-S /
FV-C-S-L / FV-C-Saline
ENGLISH/STANDARDENGLISH/STANDARD
DIMENSION VALUE
A 165.1 mm
B 149.23 mm
C Schedule 40 - DN40
D 34.93 mm
E 117.6 mm
F 92.25 mm
WEIGHT 0.544 kg
Models: FV-C-L-DN40
METRIC
DIMENSION VALUE
A 165.1 mm
B 149.23 mm
C Schedule 40 - DN50 (Slip) / 65 (with coupling)
D 34.93 mm
E 117.6 mm
F 92.25 mm
WEIGHT 0.544 kg
Models: FV-C-L-DN50/65
METRIC
