There are three positions to mount a load-bearing screw on both
sides of a switch. You should select a proper position according to the
actual requirements. The rear mounting brackets tightly contacted
with the load-bearing screws can support the switch.
Mounting the switch on a workbench
In many cases, standard 19-inch racks are not available. Therefore,
switches are often placed on clean workbenches. To place your
switch on a workbench, you simply need to:
z Make sure that the workbench is clean, flat, and sturdy.
z Make sure that the environment is well ventilated and allows 10
cm (3.94 in.) of space around the chassis for heat dissipation.
z Do not place heavy objects on your switch.
z The vertical distance between two switches must be at least 1.5
cm (0.59 in).

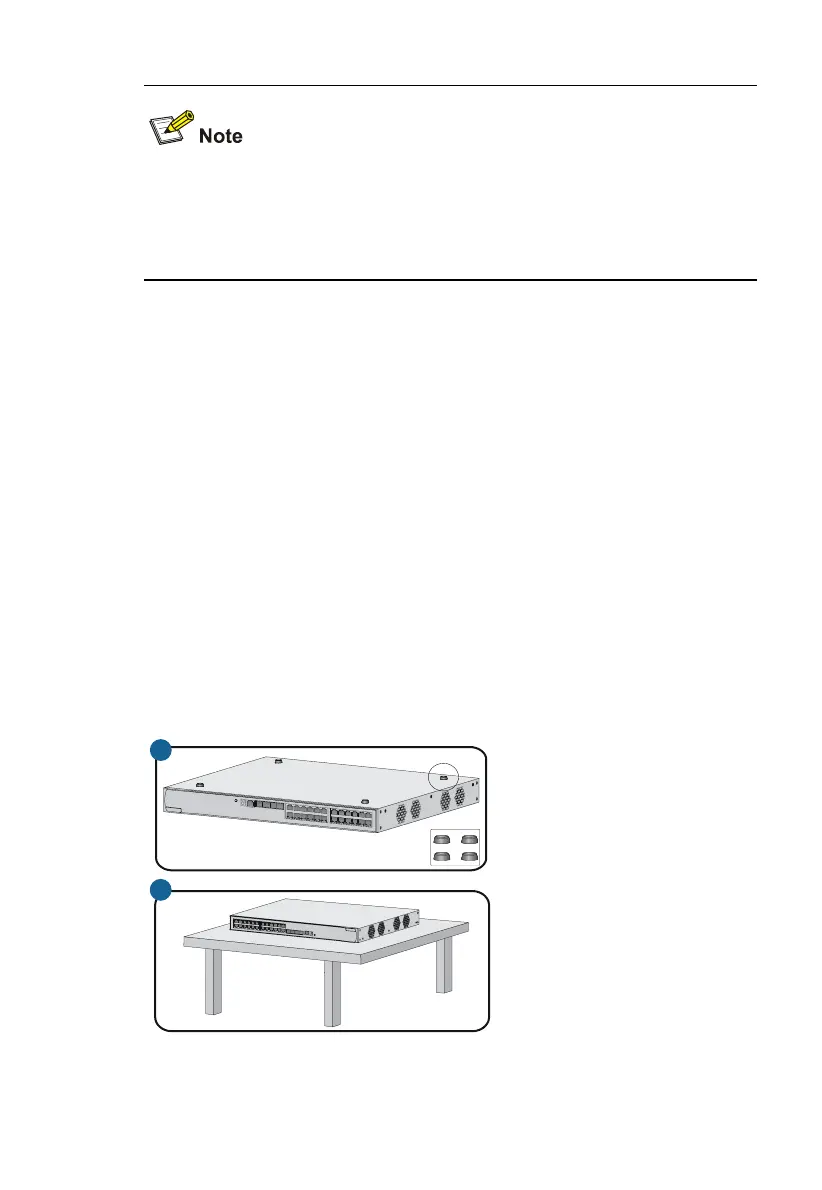

Figure 2-3 Mounting the switch on a workbench
2
Stick the rubber pads to the
appropriate positions on
the switch bottom
1
To Next Page
