H3C S5120V2-LI User Manual

9

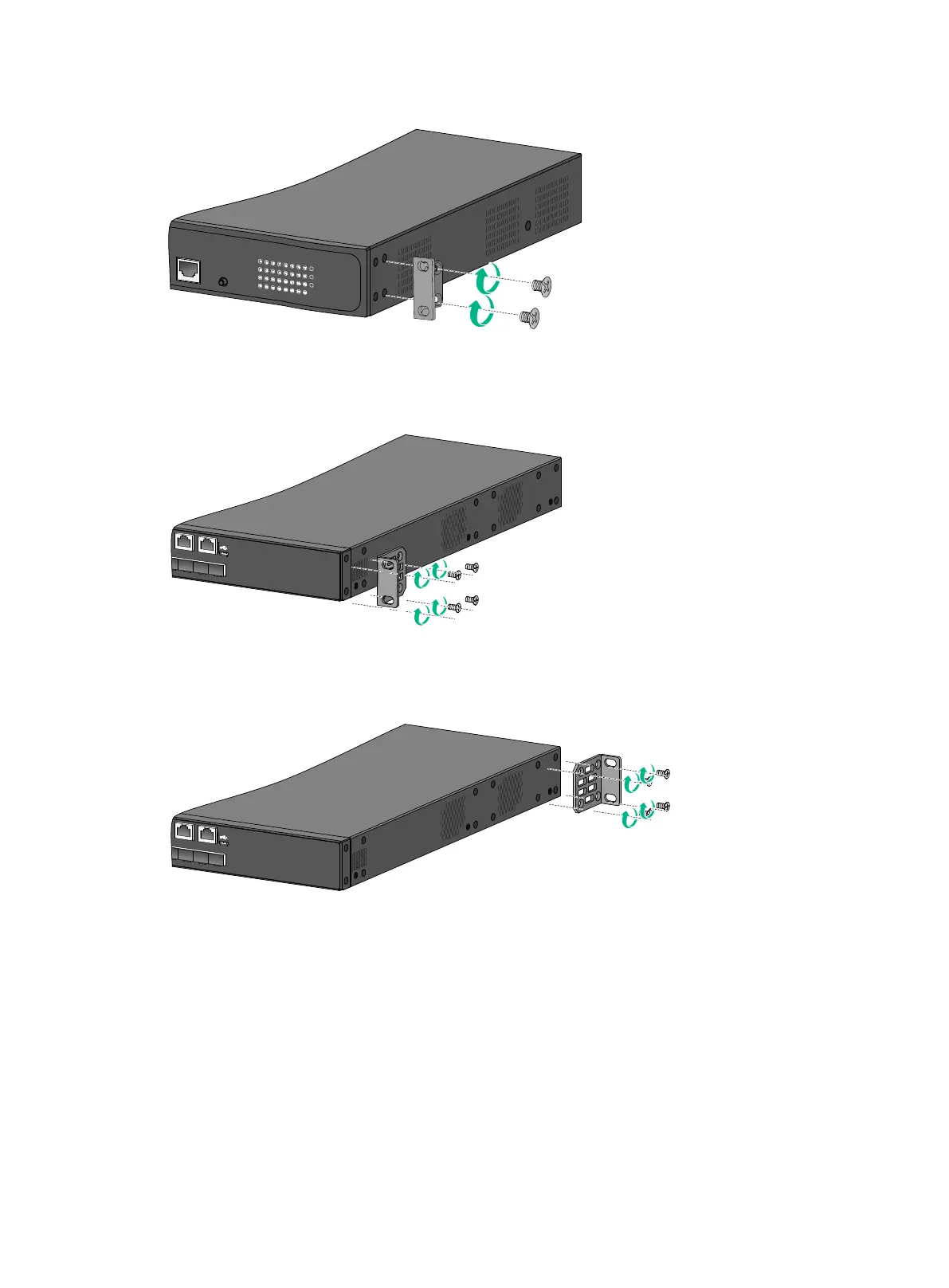

Figure 3 Attaching mounting bracket A (S5120V2-28P-HPWR-LI switch)
Figure 4 Attaching mounting bracket B (mounting position near the port side, S5560S-28F-SI
switch)
Figure 5 Attaching mounting bracket B (mounting position near the power module side,
S5560S-28F-SI switch)

H3C S5120V2-LI Specifications

General

Model	H3C S5120V2-LI
MAC Address Table Size	16K
VLAN Support	4K VLANs
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Switching Capacity	176 Gbps
Jumbo Frame	9KB
Power Supply	AC 100-240V
Dimensions (W x D x H)	440 mm x 260 mm x 43.6 mm
Operating Temperature	0°C to 45°C
