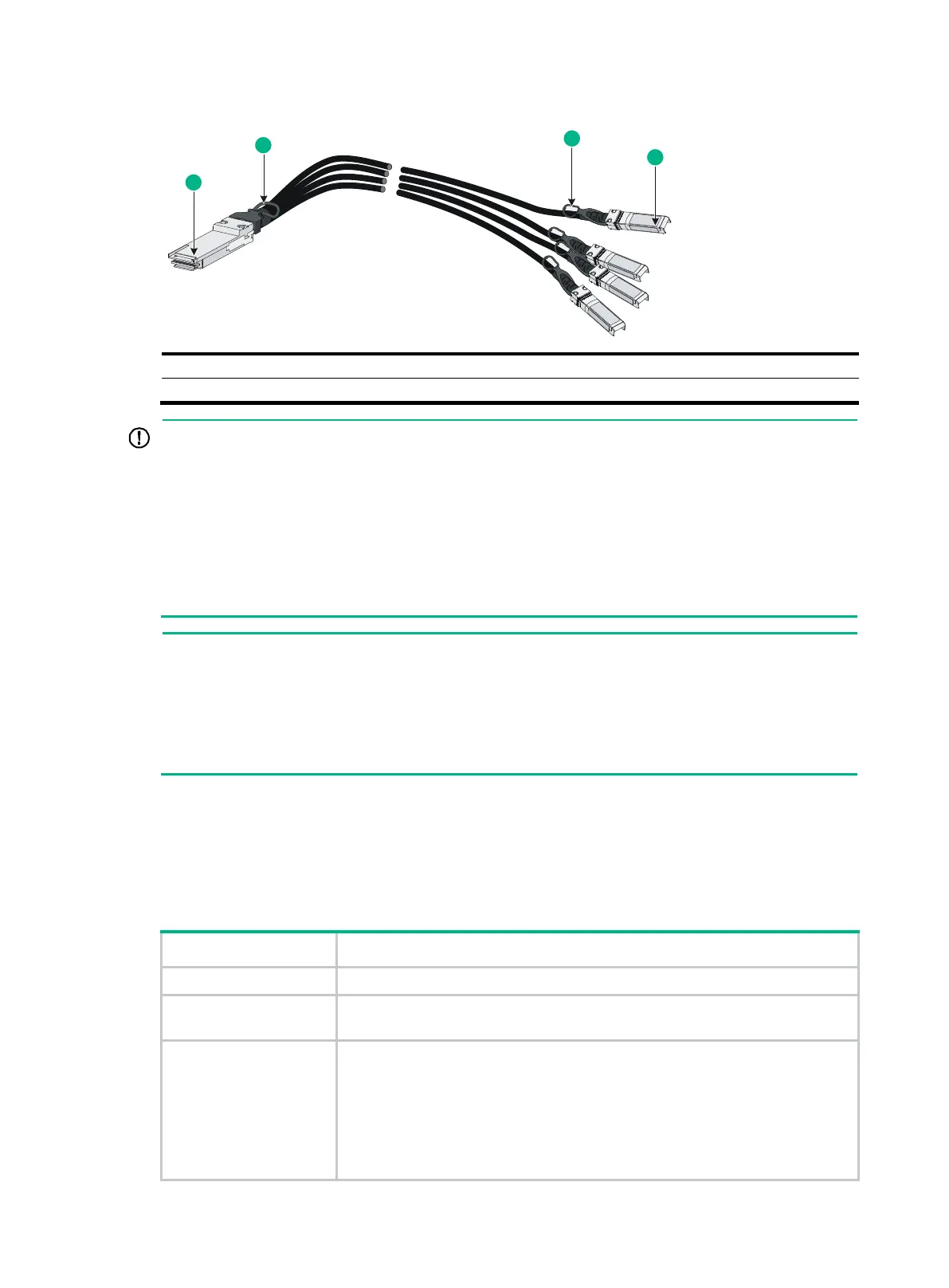

Figure4-6 100G QSFP28 to 4 × 25G SFP28 cable
(1) QSFP28 module
(2) QSFP28 module side pull latch
(3) SFP28 module
(4) SFP28 module side pull latch
IMPORTANT:
•
A QSFP-100G-SR4-MM850 transceiver module supports one-to-four splitting. You can use it
to
connect a 100G QSFP28 port to four 25G SFP28 ports. The QSFP28 transceiver module and
SFP28 transceiver modules to be connected must be the same in specifications, including
central wavelength and fiber type.
•
QSFP28 ports do not support QSFP+ to SFP+ cables and cannot be split to 10GE ports by using
QSFP+ transceiver modules.
•
The S6520X-30HF-EI, S6520X-54HF-EI, S6520X-30HF-HI, and S6520X-54HF-HI switches do
not support the QSFP-100G-D-CAB-5M transceiver modules.
NOTE:
•
As a best practice, use H3C transceiver modules and network cables for the switch.
•
The H3C transceiver modules and network cables
are subject to change over time. For the most
recent list of H3C transceiver modules and cables, contact H3C Support or marketing staff.
•
For the specifications of H3C transceiver modules and network cables, see H3C Transceiver
Modules User Guide.
10G/5G/2.5G/1000BASE-T autosensing Ethernet ports
The LSWM2XMGT8P interface module provides 10G/5G/2.5G/1000BASE-T autosensing Ethernet
ports. Table4-16 describes the 10G/5G/2.5G/1000BASE-T autosensing Ethernet port specifications.
Table4-16 10G/5G/2.5G/1000BASE-T autosensing Ethernet port specifications
Item Specification
Connector type RJ-45
Rate, duplex mode, and
auto-MDI/MDI-X
1/2.5/5/10 Gbps, full-duplex, auto MDI/MDI-X
Transmission medium
and max transmission
distance
• 10G mode
 Category 6 or above shielded twisted pair cable: 100 m (328.08 ft)
 Category 5e twisted pair cable or Category 6 unshielded twisted pair
cable: 55 m (180.45 ft)
• 5G mode: 100 m (328.08 ft) over a Category 5e or above twisted pair cable
• 2.5G mode: 200 m (656.17 ft) over a Category 5e or above twisted pair
cable
