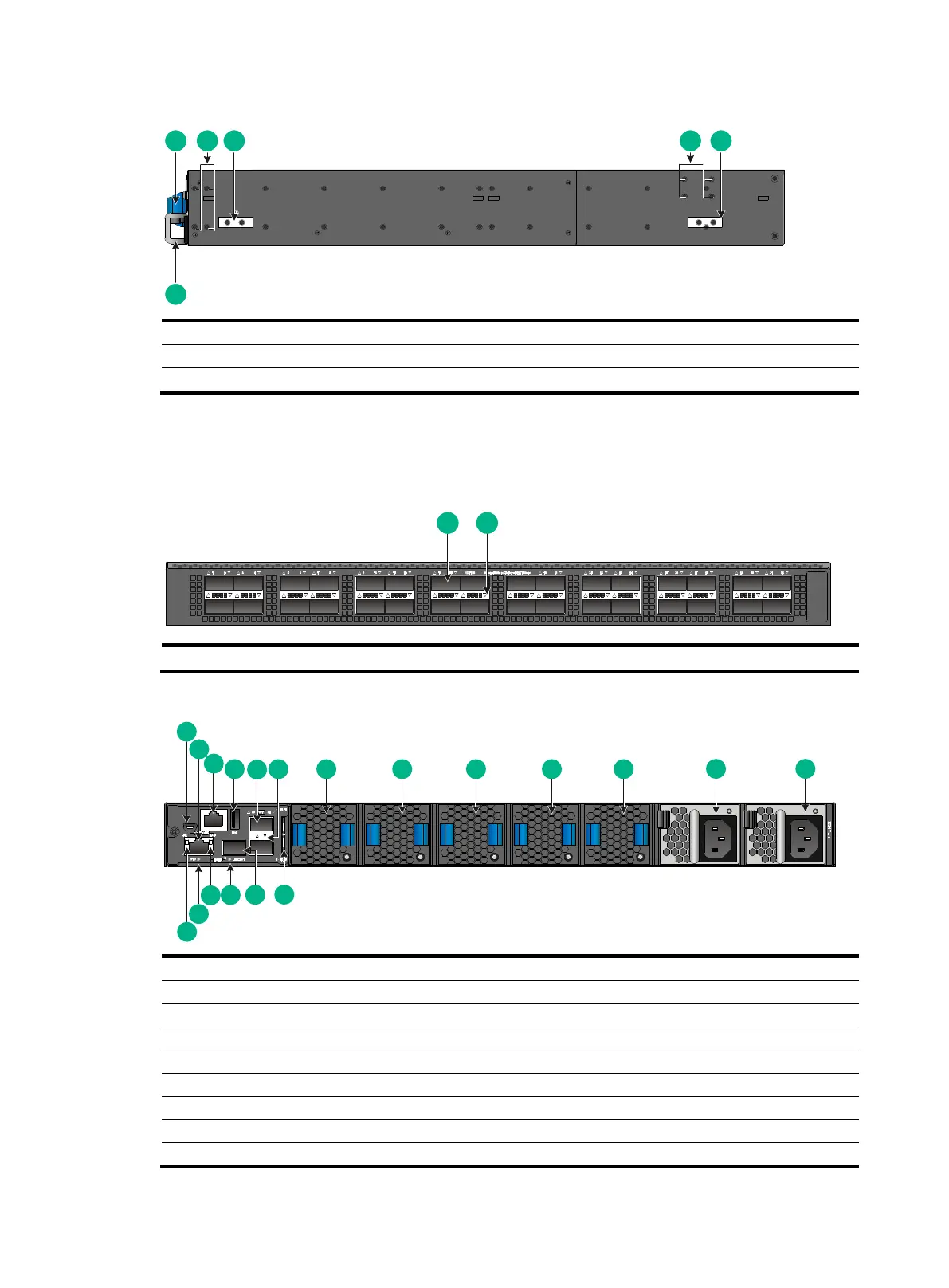

Figure2-12 S9850-4C left panel
(1) Fan tray handle
(2) Chassis ear position at the power module side
(3) Primary grounding point
(4) Chassis ear position at the port side
(5) Auxiliary grounding point
(6) Power module handle
S9850-32H
Figure2-13 S9850-32H front panel
(1) 32 × 40GE/100GE QSFP28 Ethernet fiber ports
(2) QSFP28 port LED
Figure2-14 S9850-32H rear panel
(1) Mini USB console port
(2) Copper management Ethernet port (numbered 0)
(3) Serial console port
(4) USB port
(5) Two 1GE SFP Ethernet fiber ports
(6) SFP port LED
(7) Fan tray 1
(8) Fan tray 2
(9) Fan tray 3
(10) Fan tray 4
(11) Fan tray 5
(12) Power module 1
(13) Power module 2
(14) Serial label pull tab
(15) Fiber management Ethernet port (numbered 1)
(16) Fiber management Ethernet port LED (LINK/ACT)
