H3C S6850-56HF

3-36
For information about the LEDs, see "1/10GBase-T autosensing Ethernet port LEDs" and "QSFP+
port LED."
Technical specifications
Item Specifications
Dimensions (H × W × D)
40.1 × 214 × 274 mm (1.58 × 8.43 × 10.79 in), including the connector but
excluding the ejector lever
Weight 3 kg (6.61 lb)
Power consumption (static) 40 W
Power consumption (typical) 81 W
Power consumption (fully
loaded)
123 W
LSWM124XG2QFC
The LSWM124XG2QFC interface module provides 24 SFP+ ports and 2 QSFP+ ports. The SFP+
ports can operate as Ethernet interfaces or FC interfaces.

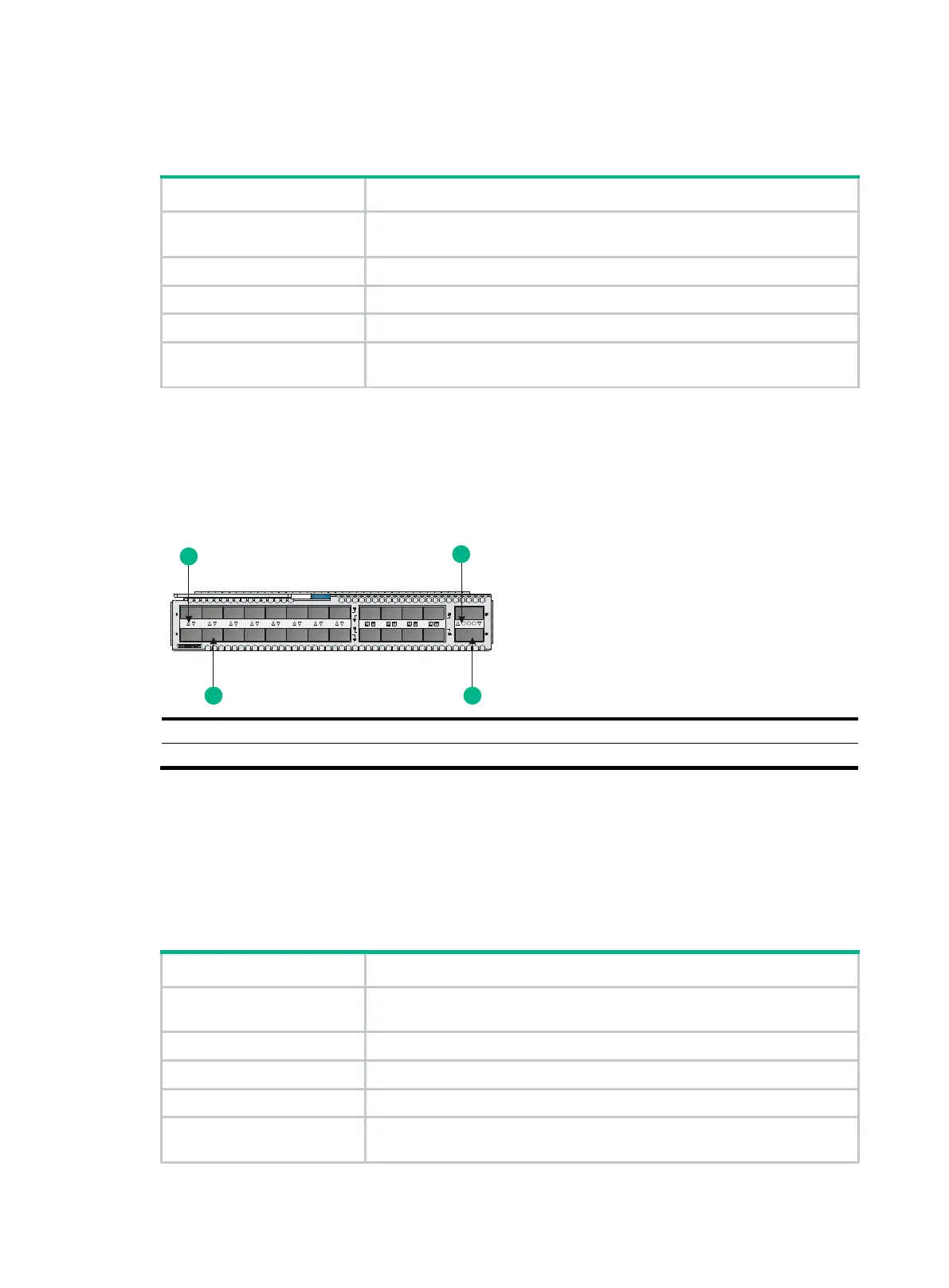

Figure3-16 LSWM124XG2QFC front panel
(1) SFP+ port LED
(2) QSFP+ port LED
(3) QSFP+ port
(4) SFP+ port
Ports and LEDs
For information about the ports and modules and cables available for the ports, see "SFP+ port," "FC
interfaces," and "QSFP+ port."
For information about the LEDs, see "SFP+ port LED" and "QSFP+ port LED."
Technical specifications
Table3-19 Technical specifications
Item Specifications
Dimensions (H × W × D)
40.1 × 214 × 274 mm (1.58 × 8.43 × 10.79 in), including the connector but
excluding the ejector lever
Weight 2 kg (4.41 lb)
Power consumption (static) 40 W
Power consumption (typical) 50 W
Power consumption (fully
loaded)
60 W
2
3 4
1
