LSWM124XG2QL
The LSWM124XG2QL interface module provides 24 SFP+ ports and 2 QSFP+ ports.

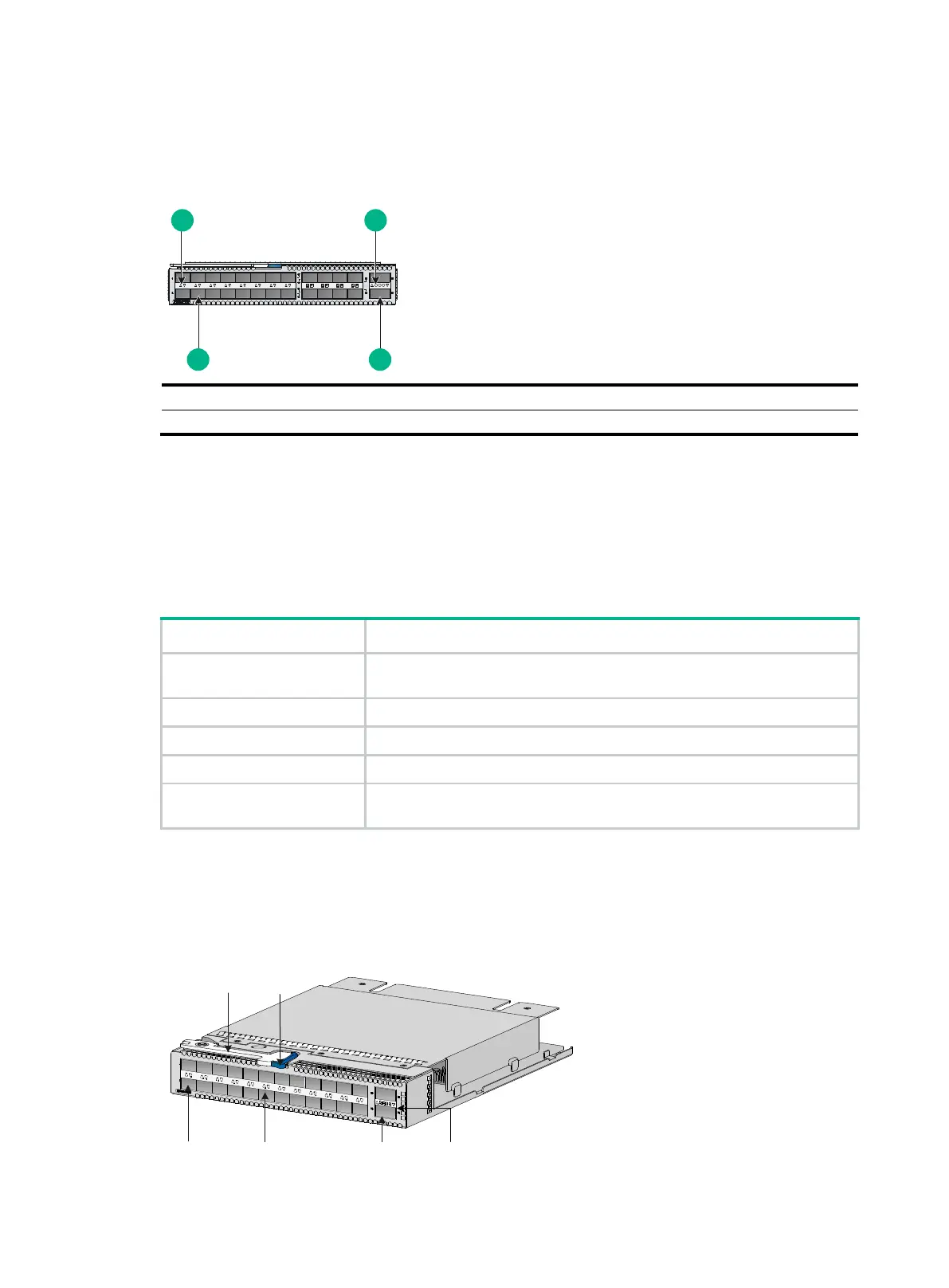

Figure3-17 LSWM124XG2QL front panel
(1) SFP+ port LED
(2) QSFP+ port LED
(3) QSFP+ port
(4) SFP+ port
Ports and LEDs
For information about the ports and modules and cables available for the ports, see "SFP+ port" and
"QSFP+ port."
For information about the LEDs, see "SFP+ port LED" and "QSFP+ port LED."
Technical specifications
Table3-20 Technical specifications
Item Specifications
Dimensions (H × W × D)
40.1 × 214 × 274 mm (1.58 × 8.43 × 10.79 in), including the connector but
excluding the ejector lever
Weight 2 kg (4.41 lb)
Power consumption (static) 20 W
Power consumption (typical) 28 W
Power consumption (fully
loaded)
36 W
LSWM124TG2H
The LSWM124TG2H interface module provides 24 SFP28 ports and 2 QSFP28 ports.
Figure3-18 LSWM124TG2H interface module
1
2
34
SFP28 port QSFP28 portSFP28 port LED
QSFP28 port LED
Ejector lever Latch
