9

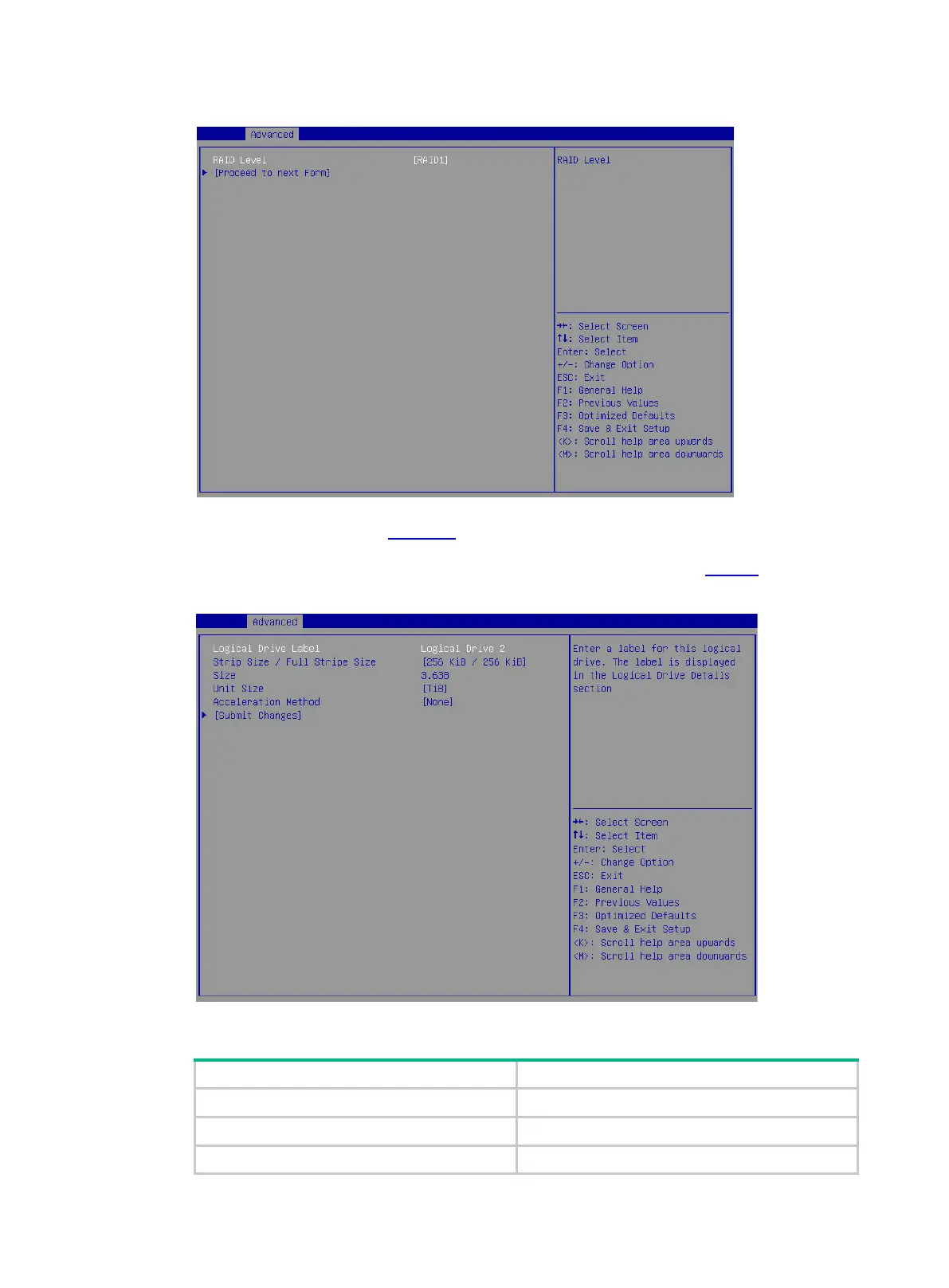

Figure 11 Setting the RAID level
5. On the screen as shown in Figure 12, set the values for Logical Drive Label, Stripe Size/Full
Stripe Size, Size, Unit Size, and Acceleration Method. Then, select Submit Changes and
press Enter. For more information about the parameter description, see Table 2.
Figure 12 Configuring RAID array parameters
Table 2 Parameter description
Logical Drive Label RAID array name.
Stripe Size Data block size for each drive.
Size Capacity for the logical drive.
