H3C UniServer E3200 G3

31

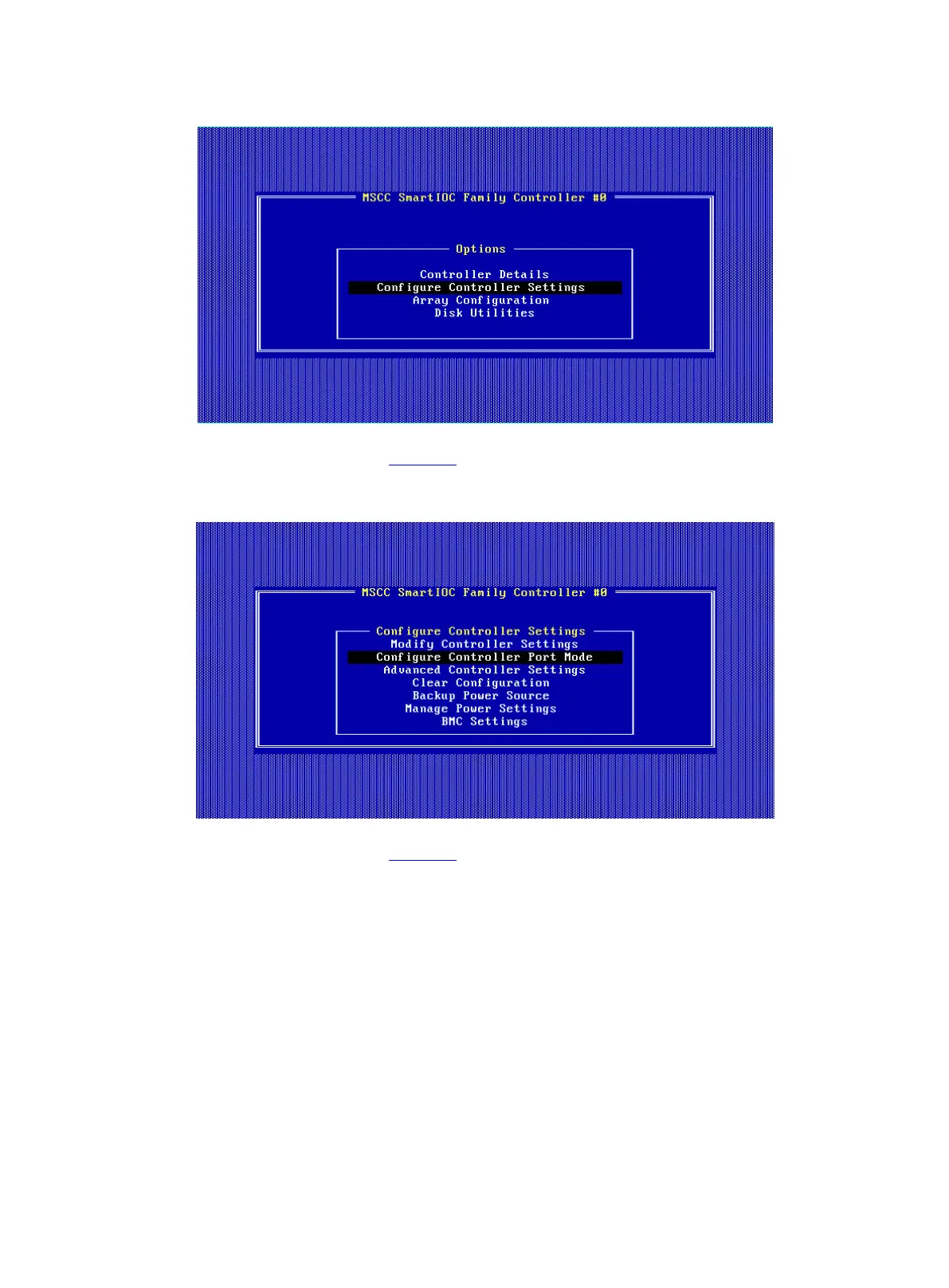

Figure 52 Storage controller configuration screen
2. On the screen as shown in Figure 53, select Configure Controller Port Mode and press
Enter.
Figure 53 Configure Controller Settings screen
3. On the screen as shown in Figure 54, change the operating mode for Port CN0 or Port CN1
as needed.
