H3C UniServer R4700 G3

31

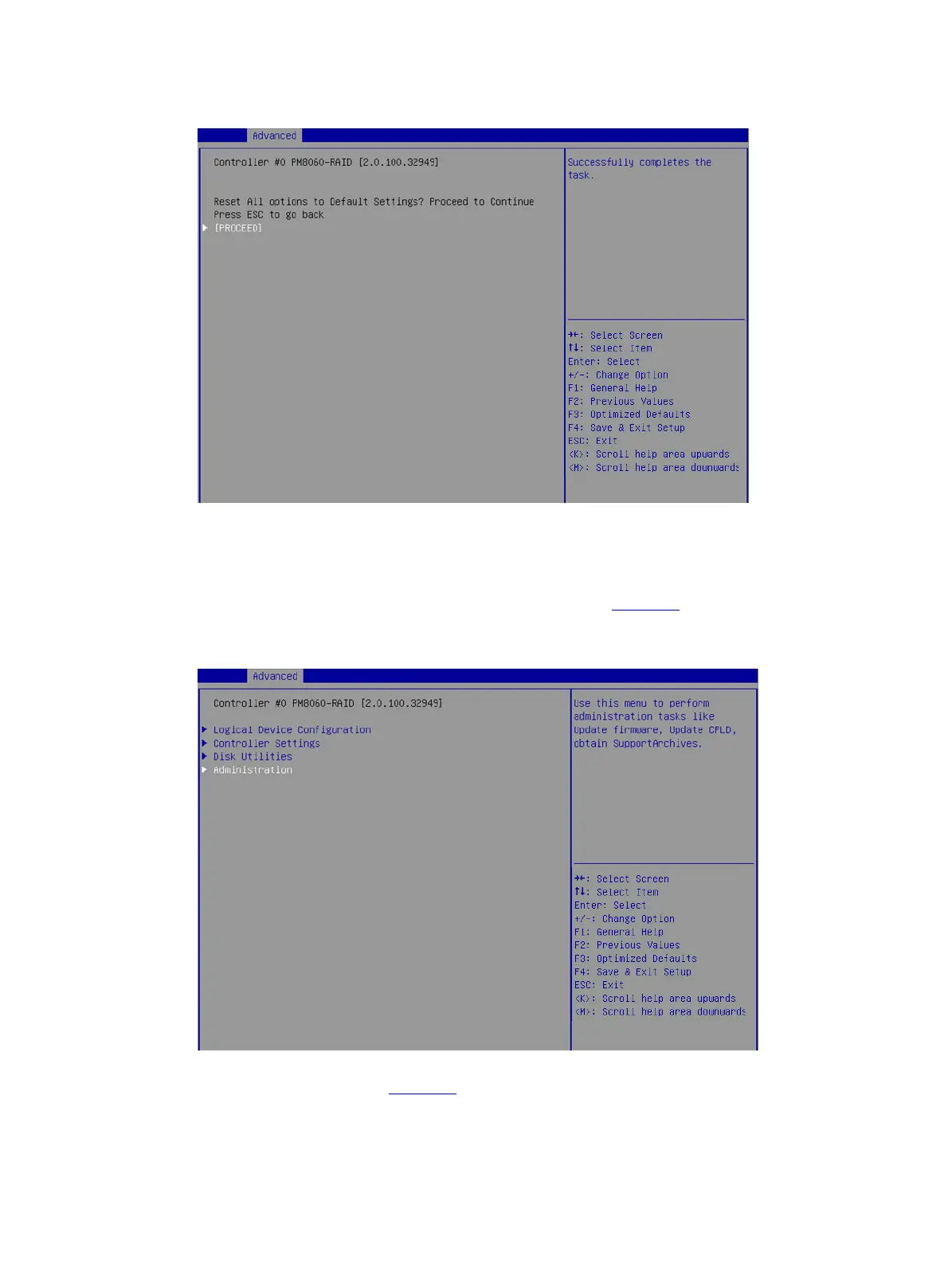

Figure 51 Restoring the storage controller configuration to the default
Upgrading the storage controller firmware online
1. On the storage controller configuration screen as shown in Figure 52, select Administration,
and press Enter.
Figure 52 Storage controller configuration screen
2. On the screen as shown in Figure 53, select FW update from Media, and press Enter.
