H3C UniServer R4950 G5

20

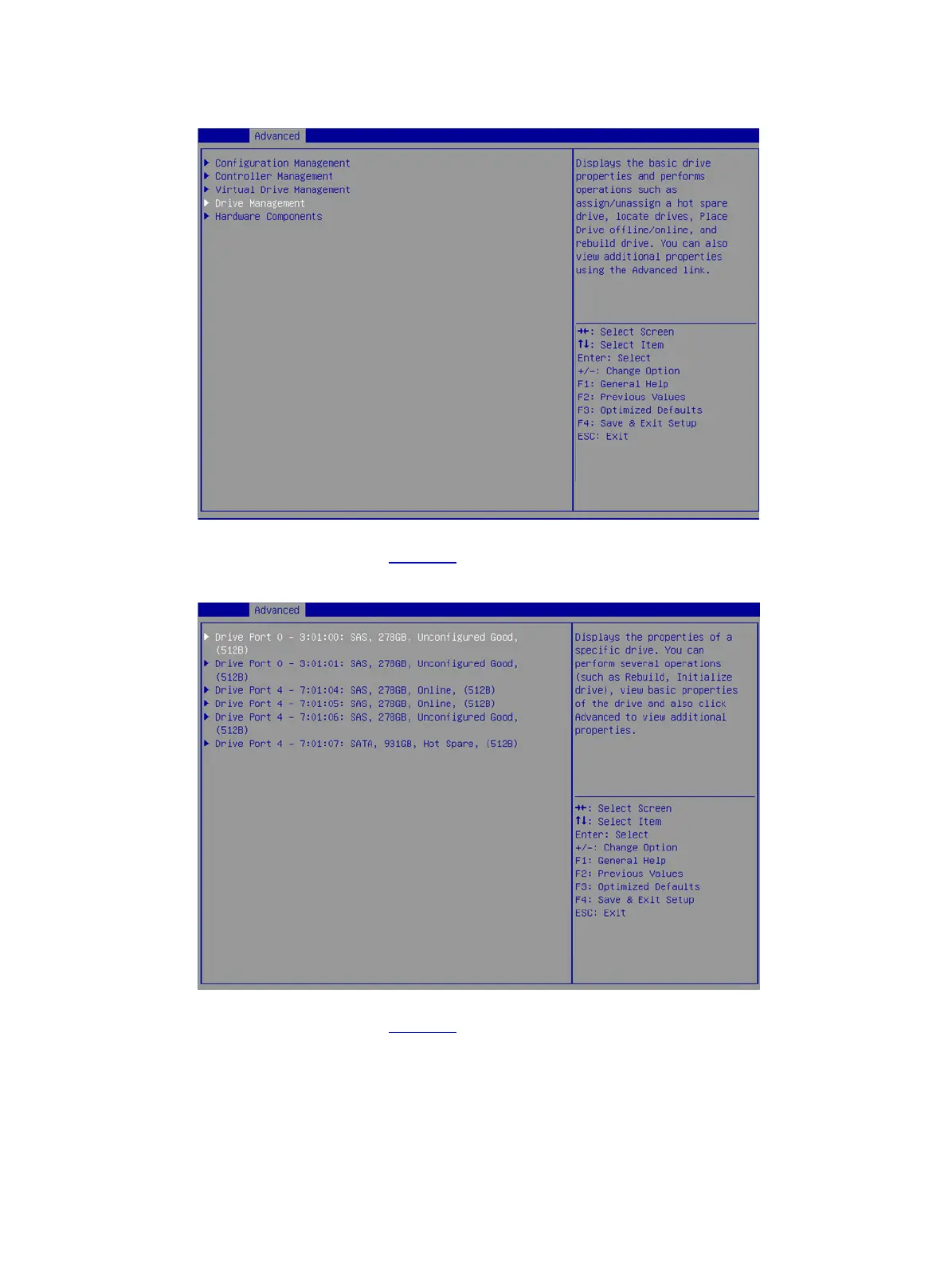

Figure 28 Storage controller configuration screen
2. On the screen as shown in Figure 29, select the target drive and press Enter.
Figure 29 Drive Management screen
3. On the screen as shown in Figure 30, select Operation and press Enter. On the dialog box
that appears, select Assign Dedicated Hot Spare Drive and press Enter.
