13

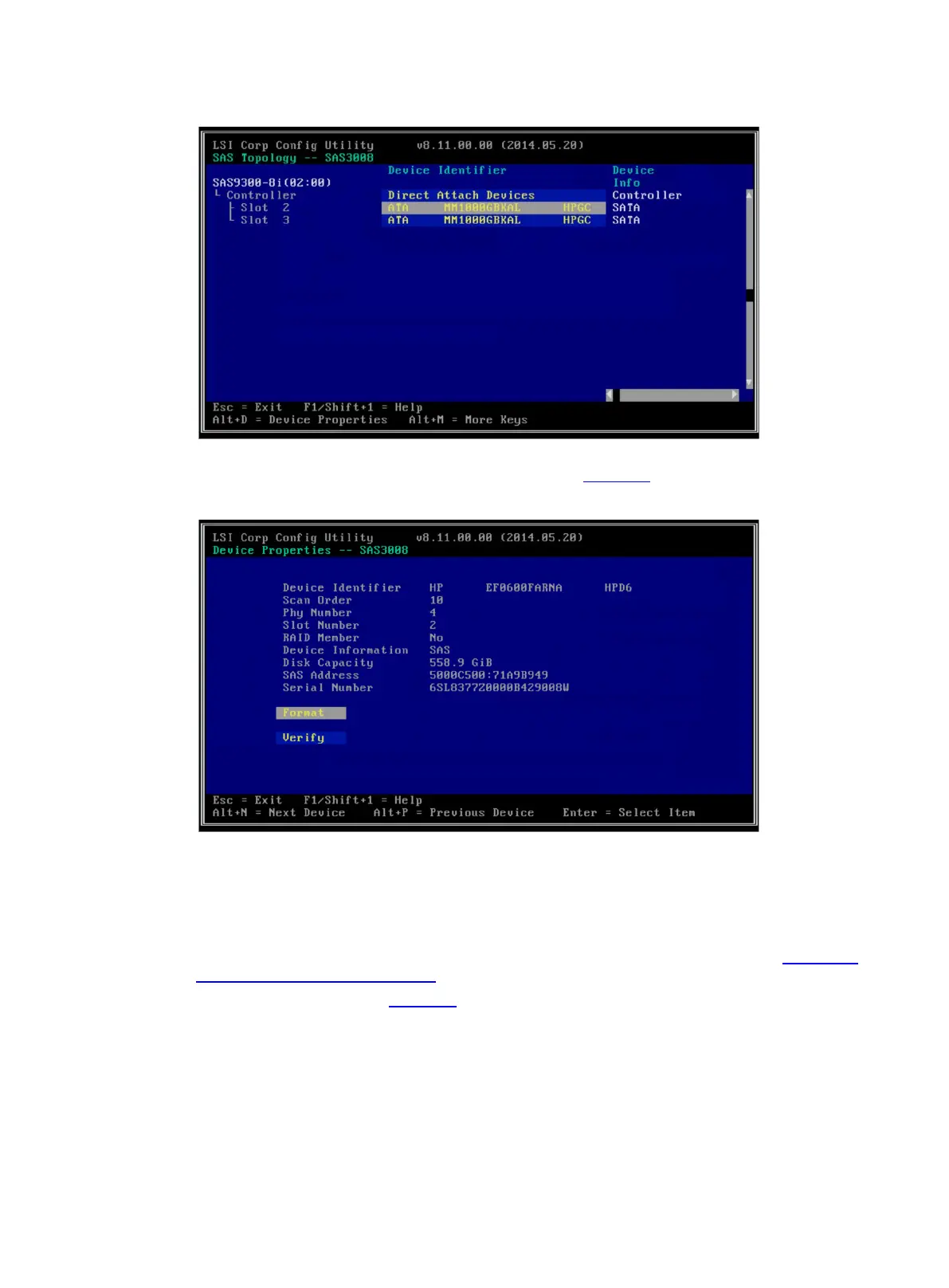

Figure 22 Selecting a physical drive
4. View properties of the drive on the screen as shown in Figure 23.
Figure 23 Drive properties
Locating drives
1. Access the controller configuration screen.
For more information about how to access the controller configuration screen, see "Accessing
the controller configuration screen."
2. On the screen as shown in Figure 24, select SAS Topology and press Enter.
