18

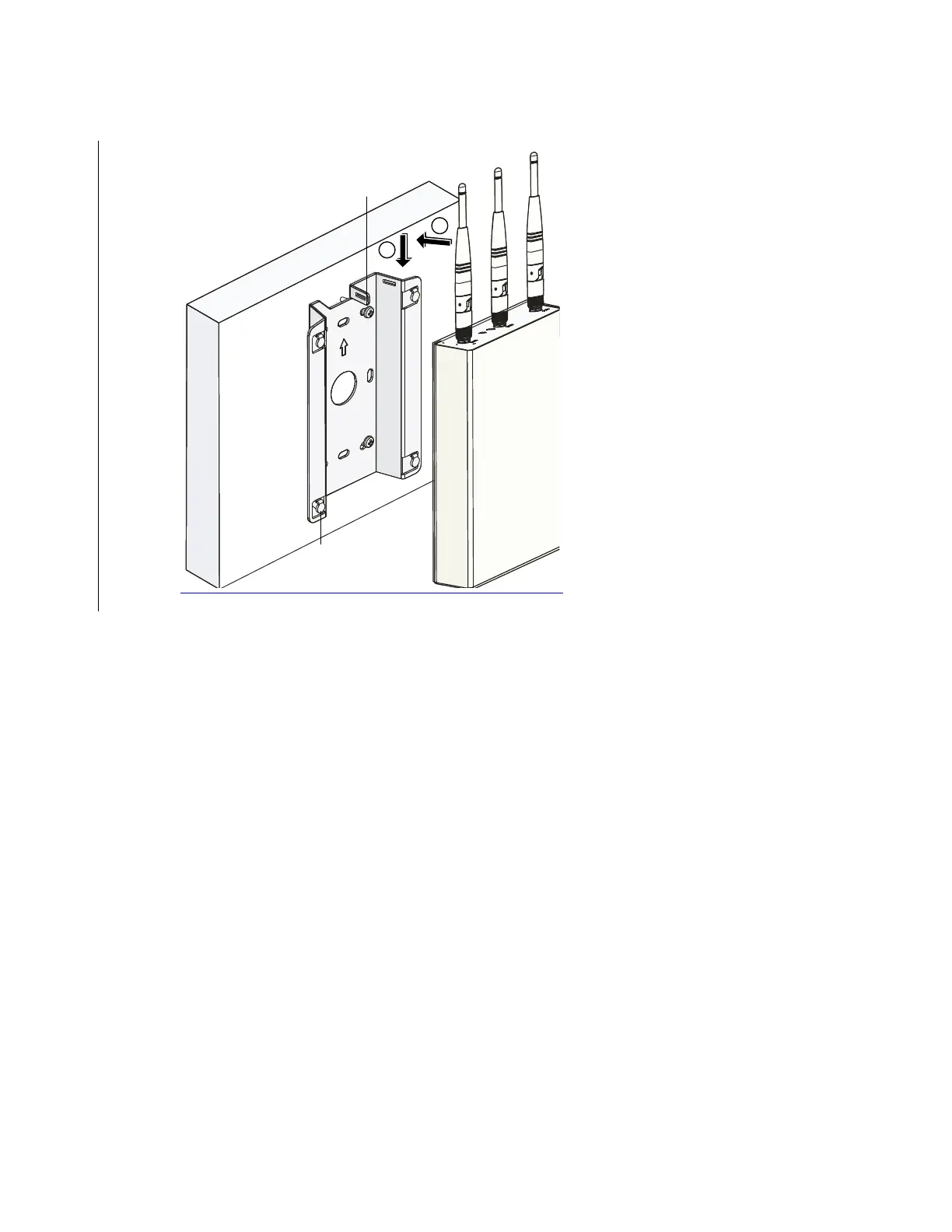

Figure 9 Fix the AP onto the wall-mounting bracket
Optional: locking the AP onto the wall-mounting bracket
The WA2600 enhanced series APs have a security slot on the top, which can be used to
lock the AP onto the wall-mounting bracket to prevent theft.
To lock the AP onto the wall-mounting bracket:
1. Insert the locking plate into the security slot on the top of the AP (see [1] in Figure 10
2. Turn the locking plate counterclockwise until the hole on the locking plate is aligned
with the hole in the wall-mounting bracket (see [2] in Figure 10
3. Put the latch through the two holes that are aligned in step 2 (see [3] in Figure 10
4. Lock the latch with a lock. (Lock is user-supplied.)
5. Lock the AP onto the wall-mounting bracket.
