H3C WA2610E-AGN Installation Guide

8

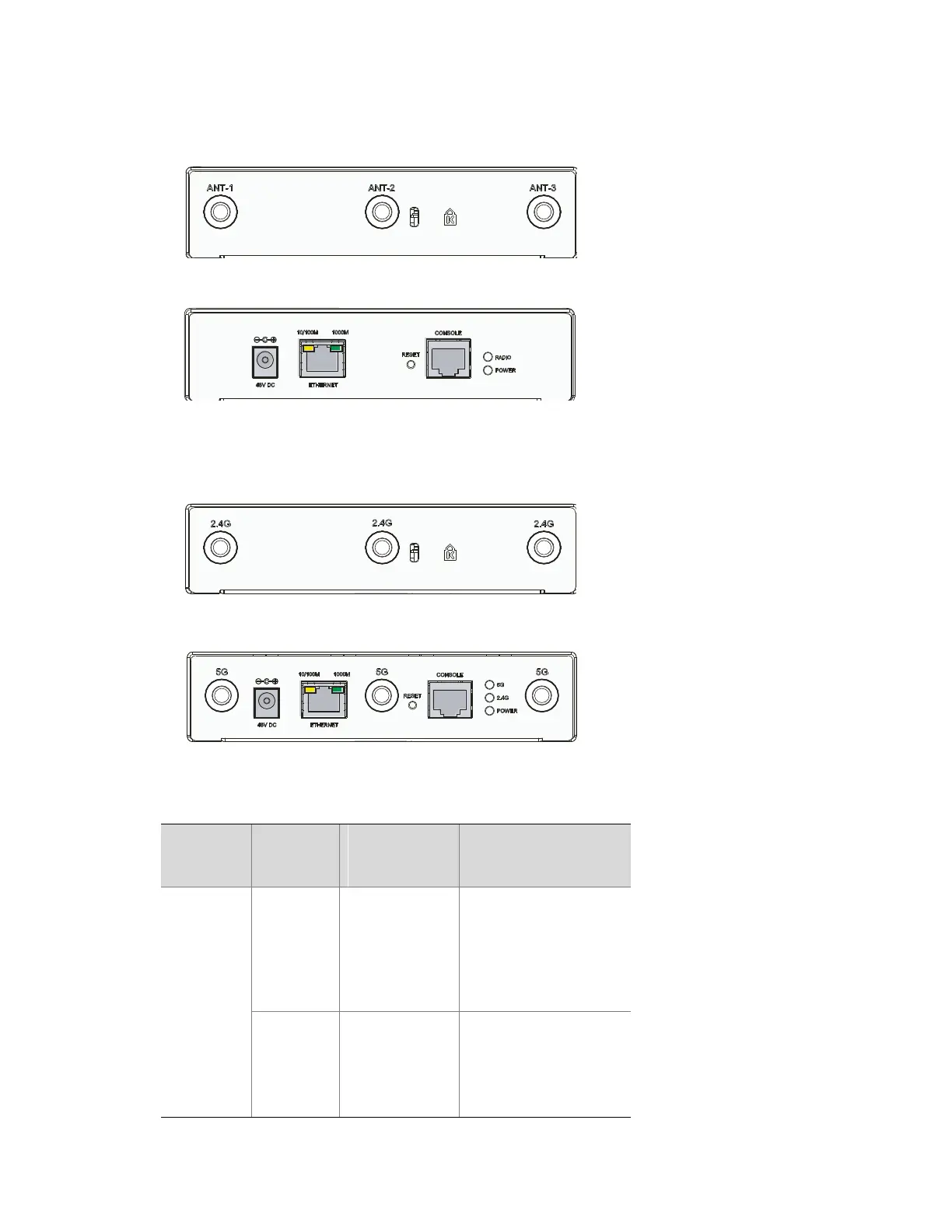

Figure 5 Interfaces on the WA2610E-AGN
Figure 6 Interfaces on the WA2620E-AGN
Table 4 Interface descriptions for the WA2600E series APs
Model
Interface
Standards
and
protocols
Description
WA2610E
-AGN
ANT-1
ANT-2
ANT-3
IEEE802.11a
IEEE802.11b
IEEE802.11g
IEEE802.11n
The antenna
interfaces are
provided for 2.4
GHz/5 GHz dual-RF
antennas for MIMO
transmission.
Console
RS/EIA-232
The console
interface is used for
device
configuration and
management.
Top view
Bottom view
Top view
Bottom view
